LED DRIVER J006 50W (TEKLED)

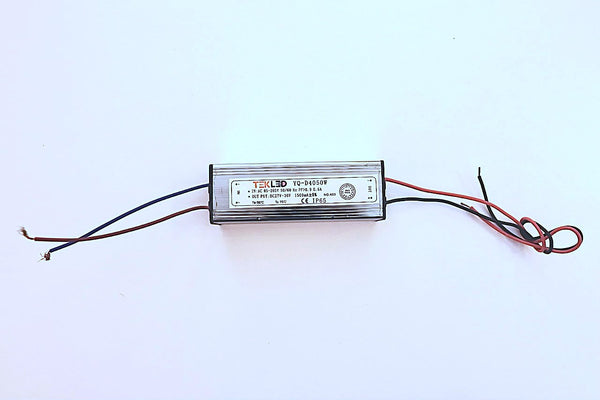

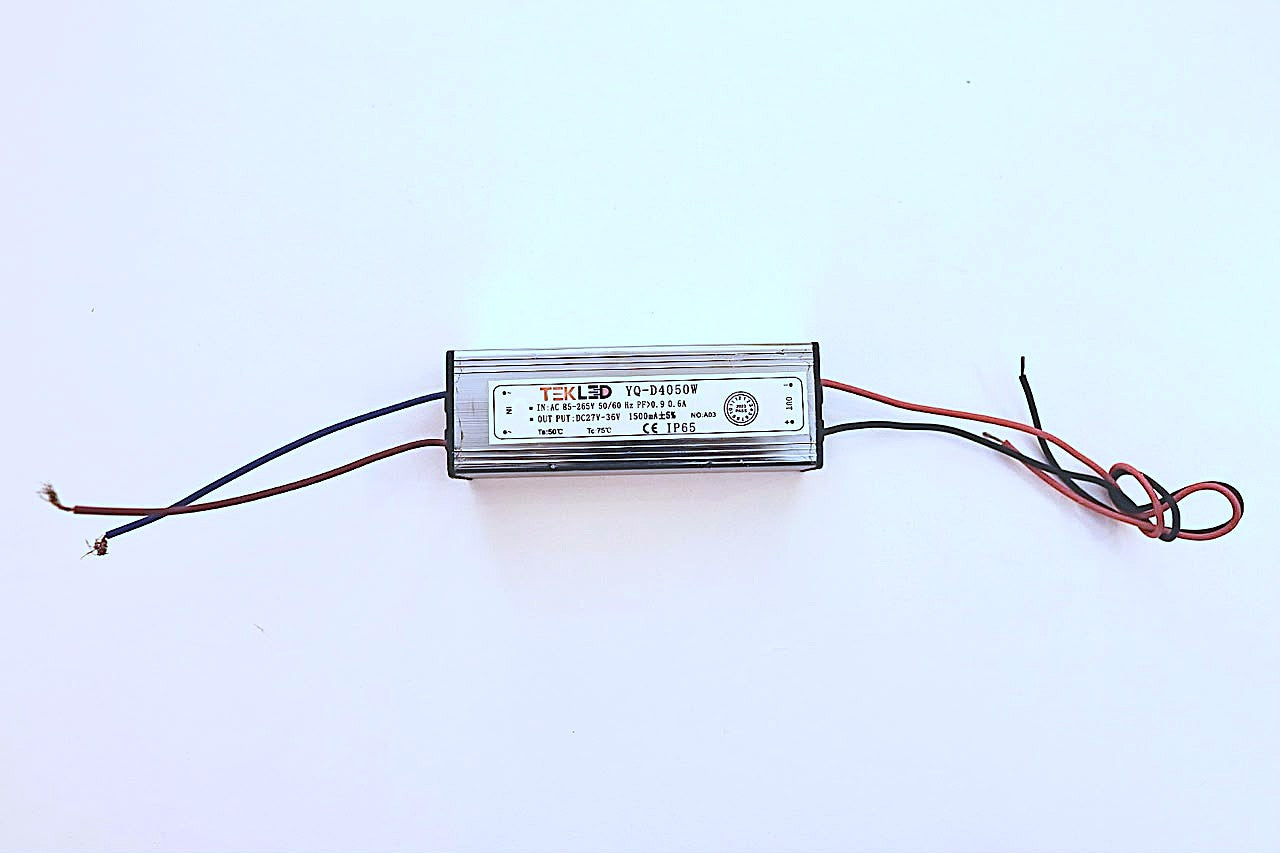

The TEKLED J006 50W LED Driver (Model: YQ-D4050W) is a premium, high-capacity constant current power supply unit engineered for driving high-power outdoor and commercial LED fixtures. Encased in a heavy-duty, extruded aluminum housing designed for structural durability, this driver transforms incoming standard AC power into a stabilized DC output. With an advanced IP65 ingress protection rating, it offers waterproof and dustproof operation, making it highly reliable in demanding environments.

• Model Number: YQ-D4050W
• Max Output Power: 50 Watts (Continuous load)
• Driving Profile: Constant Current
• Input Parameters: AC 85-265V, 50/60Hz, PF > 0.9, 0.5A (Wide-range universal grid voltage)
• Output Parameters: DC 27-36V, 1500mA  ±5%
• Waterproof Rating: IP65 (Protected against water jets and heavy dust ingress)
• Thermal Boundaries:
  • Max Operating Ambient Temperature: 50Â oC
  • Maximum Permissible Case Temperature: 75 oC
• Safety Classifications: CE Certified

• Robust IP65 Aluminum Body: The metal chassis serves as a dual-purpose heat sink and protective armor, keeping internal electronics cool while completely blocking moisture, humidity, and fine dust particles.
• Stable High-Current Drive: Pinpoints the output strictly at a powerful (1500mA). This maximizes stable lumen output, blocks visual flicker, and protects multi-diode setups from thermal runaway.
• High Power Factor (PF > 0.9): Maximizes electrical efficiency and reduces grid distortion, lowering power losses across commercial and industrial network lines.
• Universal Voltage Support: Adapts dynamically to power fluctuations between 85V and 265V, ensuring stable operation during localized brownouts or sharp voltage surges.
