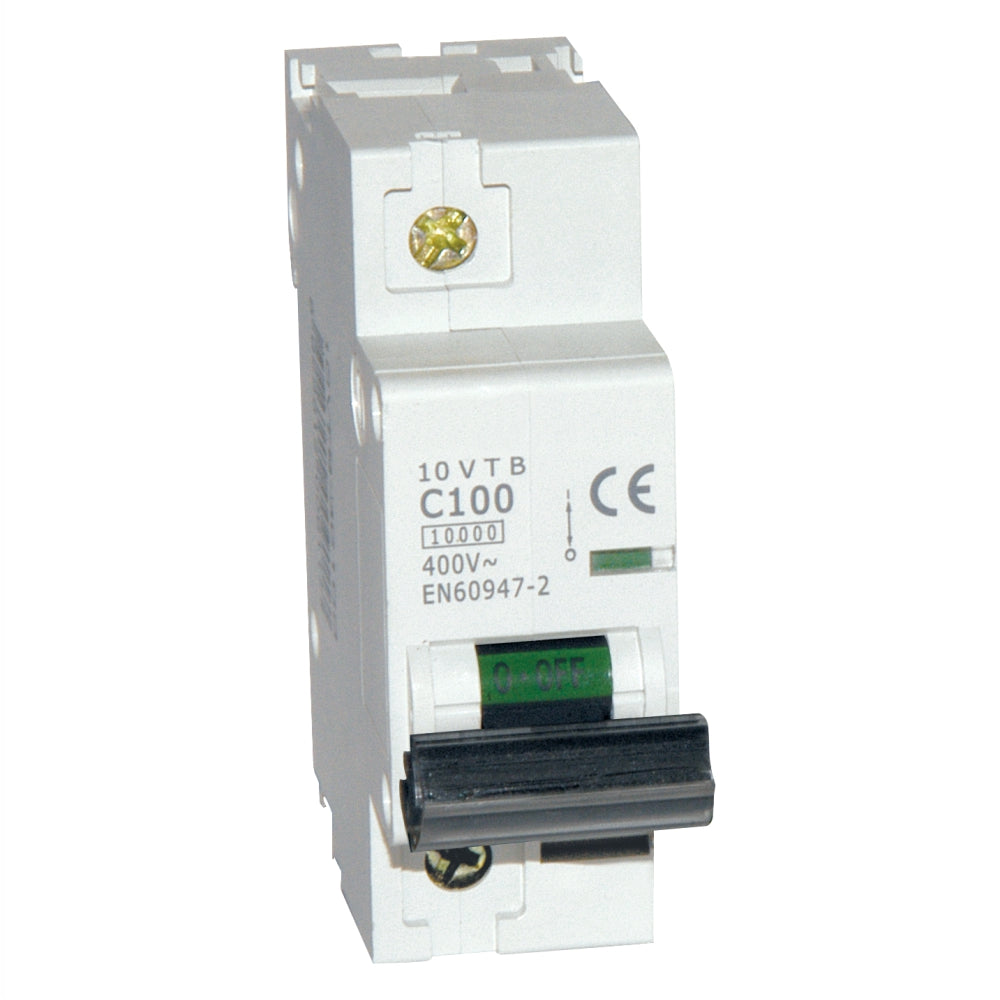

10VTB-1C80 Breaker 1P 80A 10KA B-C (VIKO)
10VTB-1C80 Breaker 1P 80A 10KA B-C (VIKO)
Regular price
GH₵109.00
Sale price
GH₵109.00
Unit price
per
Light bulb sold separately
SKU: SKU: 614-36080 EAN:| EAN:
In stock. 125 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
10VTB-1C80 Breaker 1P 80A 10KA B-C (VIKO)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The Viko 10VTB-1C80 is a single-pole miniature circuit breaker (MCB) designed for robust circuit protection in industrial and heavy-duty commercial applications. Manufactured by VIKO (a Panasonic brand), this high-capacity breaker is engineered to handle significant electrical loads and protect against extreme fault currents.
Product Specifications
- Model: 10VTB-1C80
- Number of Poles: 1P (Single Pole)
- Rated Current: 80A
- Breaking Capacity: 10kA (10,000A)
- Tripping Characteristic: C-Curve (Standard for circuits with moderate inductive loads like small motors and fluorescent lighting)
- Standards Compliance: EN/IEC 60947-2 (specifically for industrial use)
- Mounting: Standard 35mm DIN rail
Key Features
- Enhanced Fault Protection: The 10kA interrupting rating indicates its ability to safely disconnect even under severe short-circuit conditions, making it more robust than standard residential 3kA or 6kA units.
- Industrial Grade Performance: Built for high endurance, typically rated for up to 20,000 mechanical and 10,000 electrical cycles in the 10VTB series.
- Status Indication: Features a clear visual indicator for circuit state; in your image, "OFF" is shown in green, while "ON" is typically represented by red.
- Terminal Safety: Designed with IP20-rated protection on its terminals to prevent accidental direct contact.
Specifications
The Viko 10VTB-1C80 is a single-pole miniature circuit breaker (MCB) designed for robust circuit protection in industrial and heavy-duty commercial applications. Manufactured by VIKO (a Panasonic brand), this high-capacity breaker is engineered to handle significant electrical loads and protect against extreme fault currents.
Product Specifications
- Model: 10VTB-1C80
- Number of Poles: 1P (Single Pole)
- Rated Current: 80A
- Breaking Capacity: 10kA (10,000A)
- Tripping Characteristic: C-Curve (Standard for circuits with moderate inductive loads like small motors and fluorescent lighting)
- Standards Compliance: EN/IEC 60947-2 (specifically for industrial use)
- Mounting: Standard 35mm DIN rail
Key Features
- Enhanced Fault Protection: The 10kA interrupting rating indicates its ability to safely disconnect even under severe short-circuit conditions, making it more robust than standard residential 3kA or 6kA units.
- Industrial Grade Performance: Built for high endurance, typically rated for up to 20,000 mechanical and 10,000 electrical cycles in the 10VTB series.
- Status Indication: Features a clear visual indicator for circuit state; in your image, "OFF" is shown in green, while "ON" is typically represented by red.
- Terminal Safety: Designed with IP20-rated protection on its terminals to prevent accidental direct contact.
