Description

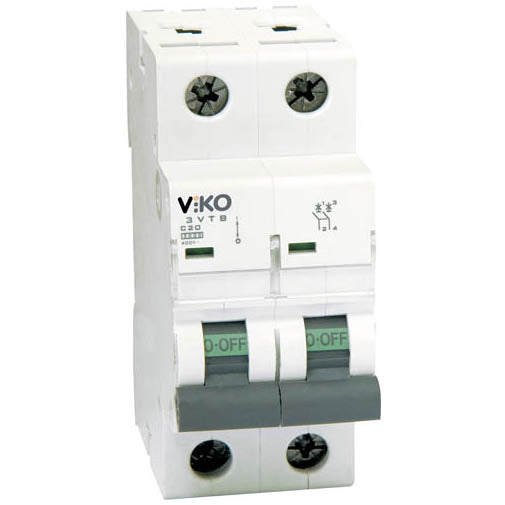

The 3VTB-2B10 is a 2-pole miniature circuit breaker (MCB) from the VIKO brand, designed to protect electrical circuits from overload and short-circuit faults. This specific model is commonly used in residential and commercial electrical distribution boards.
Key Product Features
- Circuit Protection: Provides critical protection against current overloads and short circuits to prevent damage to downstream appliances and wiring.
- Safety Indicators: Features a positive contact status indicator (green window) that clearly displays when there is a safe contact gap.
- Finger-Safe Design: Terminals are designed with IP20-rated protection to prevent accidental contact with live electrical parts.
- Standard Mounting: Designed for quick and easy installation onto standard 35mm DIN rails commonly found in distribution panels.
Technical Specifications
- Nominal Current: 10A.
- Number of Poles: 2P (Dual pole).
- Breaking Capacity: 3kA (3,000 Amperes).
- Trip Characteristics: B-Curve or C-Curve (depending on the specific sub-variant), where B-curve typically trips at 3–5 times the rated current and C-curve at 5–10 times the rated current.
- Operating Voltage: Typically 240V AC for 2-pole configurations.
- Operating Temperature: Generally rated for performance between -5°C and +40°C.
Specifications
The 3VTB-2B10 is a 2-pole miniature circuit breaker (MCB) from the VIKO brand, designed to protect electrical circuits from overload and short-circuit faults. This specific model is commonly used in residential and commercial electrical distribution boards.
Key Product Features
- Circuit Protection: Provides critical protection against current overloads and short circuits to prevent damage to downstream appliances and wiring.
- Safety Indicators: Features a positive contact status indicator (green window) that clearly displays when there is a safe contact gap.
- Finger-Safe Design: Terminals are designed with IP20-rated protection to prevent accidental contact with live electrical parts.
- Standard Mounting: Designed for quick and easy installation onto standard 35mm DIN rails commonly found in distribution panels.
Technical Specifications
- Nominal Current: 10A.
- Number of Poles: 2P (Dual pole).
- Breaking Capacity: 3kA (3,000 Amperes).
- Trip Characteristics: B-Curve or C-Curve (depending on the specific sub-variant), where B-curve typically trips at 3–5 times the rated current and C-curve at 5–10 times the rated current.
- Operating Voltage: Typically 240V AC for 2-pole configurations.
- Operating Temperature: Generally rated for performance between -5°C and +40°C.
