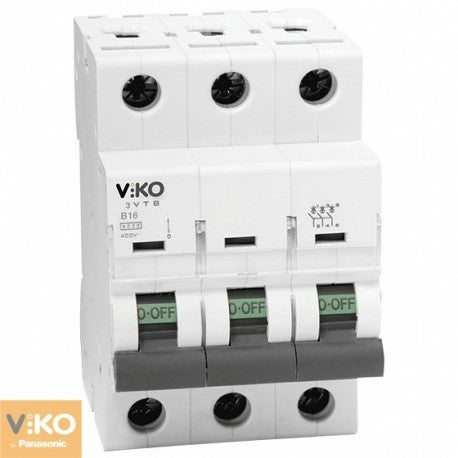

3VTB-3C80 Breaker 3P 80A 3KA B-C (VIKO)
3VTB-3C80 Breaker 3P 80A 3KA B-C (VIKO)
SKU: SKU: 613-36280 EAN:| EAN:
In stock. 13 available
Couldn't load pickup availability
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The VIKO 3VTB-3C80 is a three-pole (3P) miniature circuit breaker (MCB) produced by Panasonic. It is designed to protect low-voltage electrical networks from overloads and short circuits.
- Model: 3VTB-3C80.
- Poles: 3 Pole (3P), designed to switch and protect three-phase power lines (L1, L2, L3) simultaneously.
- Rated Current (In): 80A, meaning it can continuously carry up to 80 Amperes of current under normal conditions.
- Breaking Capacity (Icu): 3kA, which is the maximum short-circuit current the breaker can safely interrupt.
- Tripping Characteristic: Type C, meaning it is designed to trip at 5 to 10 times its rated current, typically used for inductive loads with moderate inrush currents like small motors or lighting.
- Installation: Standard mounting on a 35mm DIN rail.
- Operation: Features high-quality switching mechanisms for both overload (thermal) and short-circuit (magnetic) protection.
- Visual Indicators: Equipped with clear "ON" and "OFF" markings on the toggles for immediate status verification [Image].
- Approximate Dimensions: 8.5 x 8.5 x 5.5 cm.
Specifications
The VIKO 3VTB-3C80 is a three-pole (3P) miniature circuit breaker (MCB) produced by Panasonic. It is designed to protect low-voltage electrical networks from overloads and short circuits.
- Model: 3VTB-3C80.
- Poles: 3 Pole (3P), designed to switch and protect three-phase power lines (L1, L2, L3) simultaneously.
- Rated Current (In): 80A, meaning it can continuously carry up to 80 Amperes of current under normal conditions.
- Breaking Capacity (Icu): 3kA, which is the maximum short-circuit current the breaker can safely interrupt.
- Tripping Characteristic: Type C, meaning it is designed to trip at 5 to 10 times its rated current, typically used for inductive loads with moderate inrush currents like small motors or lighting.
- Installation: Standard mounting on a 35mm DIN rail.
- Operation: Features high-quality switching mechanisms for both overload (thermal) and short-circuit (magnetic) protection.
- Visual Indicators: Equipped with clear "ON" and "OFF" markings on the toggles for immediate status verification [Image].
- Approximate Dimensions: 8.5 x 8.5 x 5.5 cm.
