6 WAY DB SPN (HAVELLS)
6 WAY DB SPN (HAVELLS)
Regular price
GH₵570.00
Sale price
GH₵570.00
Unit price
per
Light bulb sold separately
SKU: SKU: 711-42148 EAN:| EAN:
Low stock: 3 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
6 WAY DB SPN (HAVELLS)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

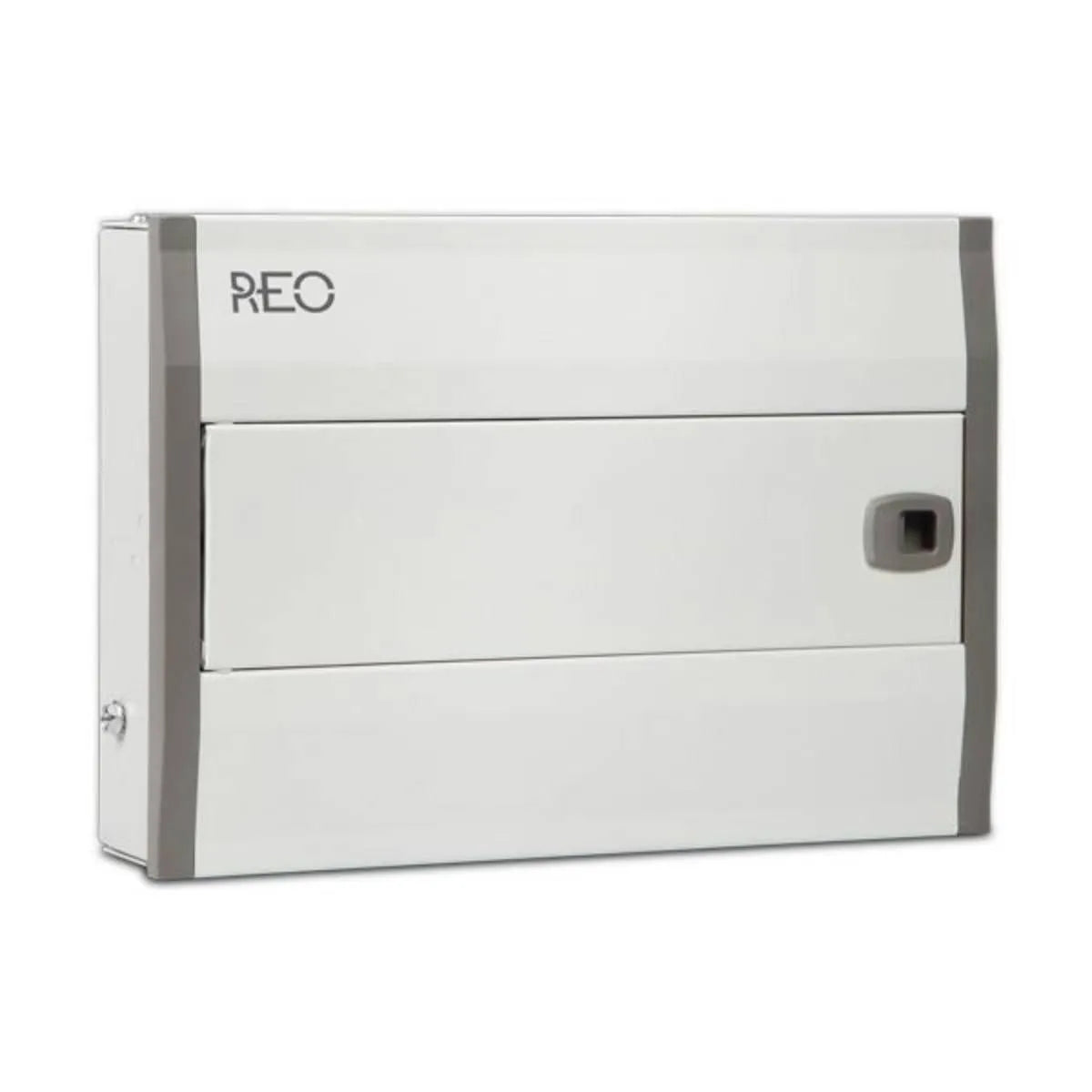

The enclosure shown in the image belongs to the REO series by Havells, a dedicated line of compact, cost-effective consumer units designed to ensure neat internal wiring and reliable circuit protection.
Below is a comprehensive overview of the description, technical specifications, and key applications for the Havells REO 6-Way SPN (Single Pole & Neutral) Distribution Board:
Description
The Havells REO 6-Way SPN DB features a clean, low-profile double-door design constructed from a robust sheet steel enclosure. It is finished in a high-durability, corrosion-resistant white powder coat accented by neutral grey structural side borders. The front access door comes equipped with a spring-loaded flush push-latch mechanical grip to allow easy breaker access.
Internally, this single-phase box features an integrated DIN rail to securely mount a 2-pole main incomer (such as an Isolator, MCB, or RCCB) along with up to 6 independent outgoing single-pole circuit breakers. Insulated internal copper busbars, a dedicated neutral link, and a separate grounding terminal bar are pre-fitted to prevent short circuits and ease line organization.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand / Sub-Brand | Havells / REO Series |
| Configuration | 6 Way SPN (Single Pole + Neutral) |
| Door Configuration | Double Door (DD) with Flush Push-Latch Handle |
| Chassis Material | High-Grade, Corrosion-Resistant Sheet Steel Box |
| Color & Finish | Matte White with Neutral Grey Accent Trim Panels |
| Busbar Current Rating | 100 A Max Continuous Current Capacity |
| Rated Voltage & Supply | 240V AC, 50 Hz Single-Phase Power System |
| IP Enclosure Protection | IP42 (Protected against solid objects >1mm and vertical dripping moisture) |
| Mounting Installation | Universal Flush (Recessed Wall) or Surface Mounted |
| Standards Compliance | IS 8623 / IEC 61439-3 System Standard |
Application and Best Uses
The 6-way single-phase layout provides an excellent mid-sized configuration, offering higher branch circuit capacity than smaller 4-way boxes without taking up excessive wall space.
- Residential Apartments & Houses: Perfectly suited as the primary electrical breaker panel for 1-to-2 bedroom flats, managing dedicated branches for lighting, wall plugs, the living area, and the kitchen.
- Localized Secondary Sub-Panels: Ideal for sprawling properties or multi-story buildings to serve as an isolated floor sub-panel, or a dedicated outdoor enclosure for pool houses, tool workshops, and garden grids.
- Dedicated High-Load Isolation Panels: Used to group and protect up to six separate medium-to-high draw single-phase home appliances, including independent air conditioning units, water heaters, and laundry dryers.
- Commercial Retail Spaces: Highly efficient for storefront kiosks, office reception spaces, small salons, and coffee shop counters to systematically isolate computing nodes, registers, and display grids.
Specifications
The enclosure shown in the image belongs to the REO series by Havells, a dedicated line of compact, cost-effective consumer units designed to ensure neat internal wiring and reliable circuit protection.
Below is a comprehensive overview of the description, technical specifications, and key applications for the Havells REO 6-Way SPN (Single Pole & Neutral) Distribution Board:
Description
The Havells REO 6-Way SPN DB features a clean, low-profile double-door design constructed from a robust sheet steel enclosure. It is finished in a high-durability, corrosion-resistant white powder coat accented by neutral grey structural side borders. The front access door comes equipped with a spring-loaded flush push-latch mechanical grip to allow easy breaker access.
Internally, this single-phase box features an integrated DIN rail to securely mount a 2-pole main incomer (such as an Isolator, MCB, or RCCB) along with up to 6 independent outgoing single-pole circuit breakers. Insulated internal copper busbars, a dedicated neutral link, and a separate grounding terminal bar are pre-fitted to prevent short circuits and ease line organization.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand / Sub-Brand | Havells / REO Series |
| Configuration | 6 Way SPN (Single Pole + Neutral) |
| Door Configuration | Double Door (DD) with Flush Push-Latch Handle |
| Chassis Material | High-Grade, Corrosion-Resistant Sheet Steel Box |
| Color & Finish | Matte White with Neutral Grey Accent Trim Panels |
| Busbar Current Rating | 100 A Max Continuous Current Capacity |
| Rated Voltage & Supply | 240V AC, 50 Hz Single-Phase Power System |
| IP Enclosure Protection | IP42 (Protected against solid objects >1mm and vertical dripping moisture) |
| Mounting Installation | Universal Flush (Recessed Wall) or Surface Mounted |
| Standards Compliance | IS 8623 / IEC 61439-3 System Standard |
Application and Best Uses
The 6-way single-phase layout provides an excellent mid-sized configuration, offering higher branch circuit capacity than smaller 4-way boxes without taking up excessive wall space.
- Residential Apartments & Houses: Perfectly suited as the primary electrical breaker panel for 1-to-2 bedroom flats, managing dedicated branches for lighting, wall plugs, the living area, and the kitchen.
- Localized Secondary Sub-Panels: Ideal for sprawling properties or multi-story buildings to serve as an isolated floor sub-panel, or a dedicated outdoor enclosure for pool houses, tool workshops, and garden grids.
- Dedicated High-Load Isolation Panels: Used to group and protect up to six separate medium-to-high draw single-phase home appliances, including independent air conditioning units, water heaters, and laundry dryers.
- Commercial Retail Spaces: Highly efficient for storefront kiosks, office reception spaces, small salons, and coffee shop counters to systematically isolate computing nodes, registers, and display grids.
