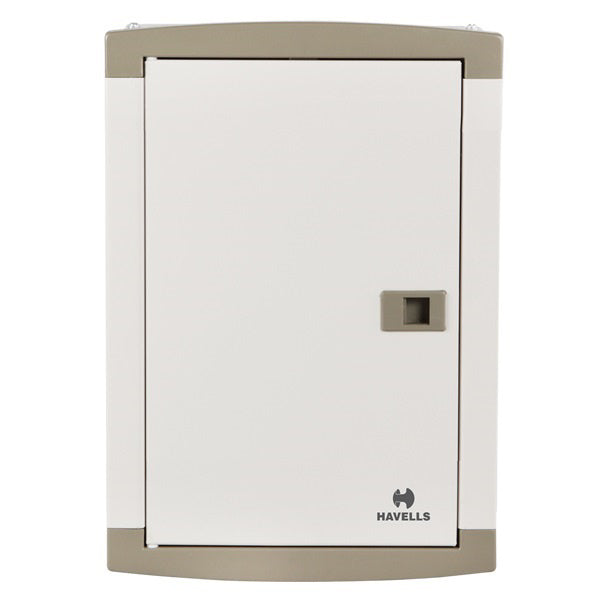

6 WAY DB TPN (HAVELLS)
6 WAY DB TPN (HAVELLS)
Regular price
GH₵2,015.00
Sale price
GH₵2,015.00
Unit price
per
Light bulb sold separately
SKU: SKU: 711-42152 EAN:| EAN:
Low stock: 2 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
6 WAY DB TPN (HAVELLS)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The HAVELLS 6 Way TPN (Triple Pole & Neutral) Distribution Board is a premium, vertically oriented electrical enclosure designed for safely managing, isolating, and distributing multi-phase loads across branch sub-circuits.
Description
The Havells 6 Way TPN DB features an extended vertical double-door configuration constructed from high-grade, powder-coated cold rolled close annealed (CRCA) sheet steel [1]. The chassis is finished in a sleek Pearl Ivory and Mineral Grey dual-tone color scheme.
The layout provides space for a 3-phase incoming terminal block (such as an MCCB, RCCB, or Isolator) that feeds power through pre-installed copper busbars into 6 independent outgoing triple-pole module sets. It features an integrated mechanical push-latch door handle, fully insulated busbars, separate neutral/earth link bars, and removable top/bottom gland plates for convenient structural wiring access.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand | Havells |
| Configuration | 6 Way TPN (Triple Pole + Neutral) |
| Door Execution | Double Door (DD) with Flush Push-Latch |
| Material Profile | Corrosion-Resistant Powder-Coated CRCA Steel Sheet |
| Color & Finish | Premium Dual-Tone Pearl Ivory / Mineral Grey |
| Busbar Current Rating | 100 A Max Continuous Rating |
| Busbar Short-Circuit Capacity | 5 kA for 100 ms |
| Rated Voltage & Supply | 240V / 415V AC, 50 Hz Supply |
| IP Enclosure Protection | IP42 (Protects against small dust particles and dripping rain) |
| Mounting Type | Flush (Recessed Wall Cutout) or Surface Wall Mounted |
| Standards Compliance | IS 8623 / IEC 61439-3 Certified |
Application and Best Uses
The vertical 6-way layout offers greater modular capacity than 4-way models, making it ideal for premises with multiple heavy machinery lines or dense sub-circuit panels.
- Multi-Family Housing & Apartments: Ideal for managing independent sub-panels across large estates, dividing distinct power lines into multiple residential blocks or large HVAC zones.
- Commercial Complexes & Retails: Used to organize distinct retail showroom blocks, separating individual checkout stations, heavy escalator lines, and complex commercial lighting patterns.
- Industrial Workshops: Perfect for small to mid-scale manufacturing plants to securely supply stable three-phase power directly to stationary machinery while maintaining isolated single-phase breaker banks.
- Server & Institutional Hubs: Excellent for data processing zones, hospitals, or schooling laboratories to segregate highly sensitive backup UPS networks from standard municipal power components.
Specifications
