90912118 SURFACE DB X18 (VIKO)
90912118 SURFACE DB X18 (VIKO)
Regular price
GH₵219.00
Sale price
GH₵219.00
Unit price
per
Light bulb sold separately
SKU: SKU: 712-36070 EAN:| EAN:
Low stock: 4 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
90912118 SURFACE DB X18 (VIKO)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

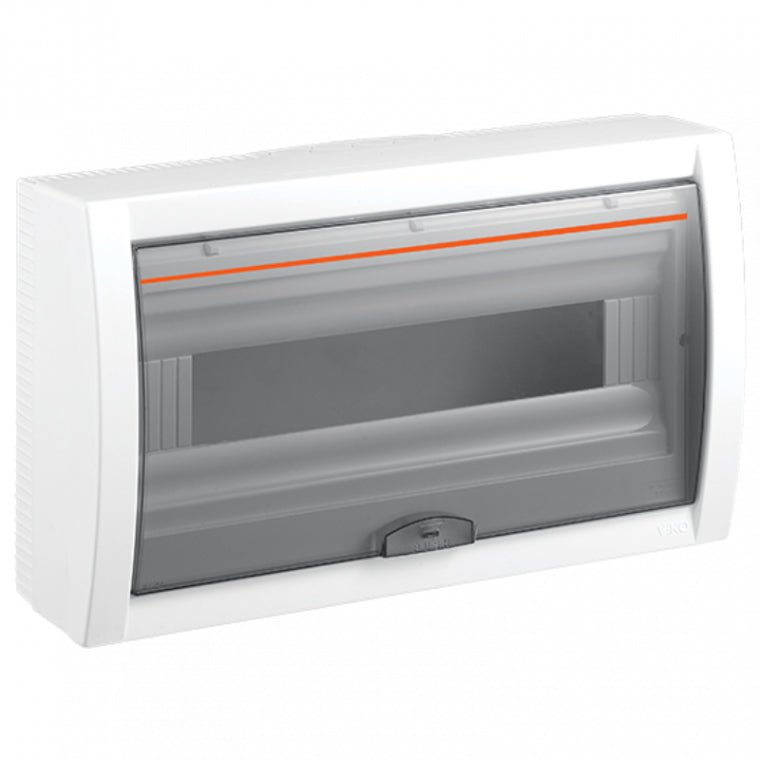

The VIKO 90912118 SURFACE DB X18 Distribution Board is a high-quality, plastic-insulated surface-mount consumer unit. It provides a modern, aesthetic, and user-friendly enclosure for safely housing circuit breakers and electrical controls in residential and commercial premises.
Technical Specifications
- Model / Catalogue Number: 90912118
- Mounting Type: Surface Mounted / Wall-top Installation
- Capacity: 18 Modules (1 Row x 18 Units)
- Ingress Protection: IP40 protection standard (shielded against solid objects over 1mm)
- Protection Class: Class II insulation safety level against electrical shocks
- Thermal Performance: Flame and fire-resistant plastic up to 650°C, safely operating from -15°C to +60°C
- Material Property: Halogen-free casing (prevents the emission of toxic gases in the event of a fire)
- Dimensions: 390 mm (Width) x 220 mm (Height) x 103.5 mm (Depth)
- Included Components: Fitted with an internal galvanized steel DIN-rail and integrated grounding/neutral brass connection terminals
Product Description
- Ergonomic Smoked Door: Features a curved, transparent smoked glass door that keeps switches covered while allowing quick visual status checks of the fuses.
- 180° Reversible Door Alignment: The front protective flap mechanism can be inverted and installed to flip open from either the left or right, easily adapting to your specific wall layout constraints.
- Spring-Assisted Frame Support: Utilizes an internal spring-loaded framing hinge that reliably props the transparent door in a wide-open position during service cycles, freeing up the technician's hands.
- Spacious Interior Volume: The deep plastic base block provides generous room for wire routing, which keeps the cable arrangement tidy, prevents crowding, and simplifies final terminations
Primary Applications
- Residential Apartments & Houses: Serves as the main electrical breaker pane or sub-panel board for safely dividing current to various rooms.
- Modern Office Spaces: Perfect for organizing utility circuits, office lighting networks, and computer server power routes.
- Commercial Retail & Shopping Centers: Extensively implemented in retail storefronts, boutique galleries, and storage centers due to its neat, non-industrial aesthetic finish.
Specifications
The VIKO 90912118 SURFACE DB X18 Distribution Board is a high-quality, plastic-insulated surface-mount consumer unit. It provides a modern, aesthetic, and user-friendly enclosure for safely housing circuit breakers and electrical controls in residential and commercial premises.
Technical Specifications
- Model / Catalogue Number: 90912118
- Mounting Type: Surface Mounted / Wall-top Installation
- Capacity: 18 Modules (1 Row x 18 Units)
- Ingress Protection: IP40 protection standard (shielded against solid objects over 1mm)
- Protection Class: Class II insulation safety level against electrical shocks
- Thermal Performance: Flame and fire-resistant plastic up to 650°C, safely operating from -15°C to +60°C
- Material Property: Halogen-free casing (prevents the emission of toxic gases in the event of a fire)
- Dimensions: 390 mm (Width) x 220 mm (Height) x 103.5 mm (Depth)
- Included Components: Fitted with an internal galvanized steel DIN-rail and integrated grounding/neutral brass connection terminals
Product Description
- Ergonomic Smoked Door: Features a curved, transparent smoked glass door that keeps switches covered while allowing quick visual status checks of the fuses.
- 180° Reversible Door Alignment: The front protective flap mechanism can be inverted and installed to flip open from either the left or right, easily adapting to your specific wall layout constraints.
- Spring-Assisted Frame Support: Utilizes an internal spring-loaded framing hinge that reliably props the transparent door in a wide-open position during service cycles, freeing up the technician's hands.
- Spacious Interior Volume: The deep plastic base block provides generous room for wire routing, which keeps the cable arrangement tidy, prevents crowding, and simplifies final terminations
Primary Applications
- Residential Apartments & Houses: Serves as the main electrical breaker pane or sub-panel board for safely dividing current to various rooms.
- Modern Office Spaces: Perfect for organizing utility circuits, office lighting networks, and computer server power routes.
- Commercial Retail & Shopping Centers: Extensively implemented in retail storefronts, boutique galleries, and storage centers due to its neat, non-industrial aesthetic finish.
