Description

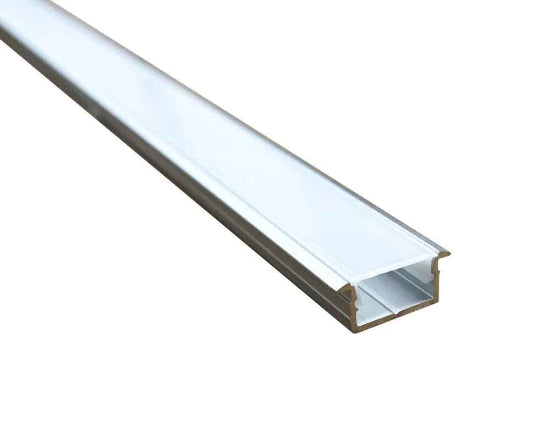

The TEKLED A3020 44x20mm (3-Meter) Aluminum Profile is a architectural linear housing framework engineered to flush-mount structural LED strip ribbons smoothly into rigid surfaces.
- Recessed Winged Geometry: Fabricated with extended side-flanges (wings) that gracefully overlap the edges of cut grooves or drywall seams. This structural design completely masks jagged cuts or raw plasterboard finishes, giving an immaculate, seamless built-in light line.
- Uprated Heat Dissipation Trunk: The massive, deep-set structural aluminum chassis functions as a heavy-duty thermal heat sink. By quickly carrying away heat generated by high-density flexible ribbons, it eliminates local heat pockets and significantly protects the diodes from premature lumen degradation.
- Optically Optimized Frost Diffuser: Fitted with a snap-in, UV-resistant Polycarbonate (PC) matte opal cover. The dense frosted shield eliminates glare and diffuses concentrated beam points into a uniform, dot-free neon light stripe.
Specifications
| Parameter | Standard Values / Structural Ratings |
|---|---|
| Model Reference | A3020 Series / Recessed Flange Extrusion |
| Profile Dimensions | 44mm Outer Width x 20mm Internal Depth |
| Standard Stock Length | 3.0 Meters (3MT Continuous Rail) |
| Material Composition | High-grade 6063-T5 Anodized Aluminum Alloy |
| Shield / Diffuser Type | Snap-on Frost Opal Polycarbonate (PC Cover) |
| Internal Strip Capacity | Generous clearance; accommodates double-row or high-power COB strips |
| Standard Finish Color | Anodized Matte Silver Gray |
| Ingress Rating | IP20 / IP40 (Standard indoor architectural dust cover) |
Applications
- Ceiling & Drywall Linear Lighting: Recessed directly into structural ceilings, false drywall panels, or corporate boardrooms to create clean, minimalist direct downlighting corridors.
- Premium Joinery & Wardrobes: Integrated flush inside high-end cabinet channels, walk-in closets, and kitchen display units to supply high-output task or accent light lines.
- Wall Backsplashes & Accents: Trimmed neatly into media centers, bed headboards, or long hallway drywall grooves to generate elegant vertical geometric line art.
