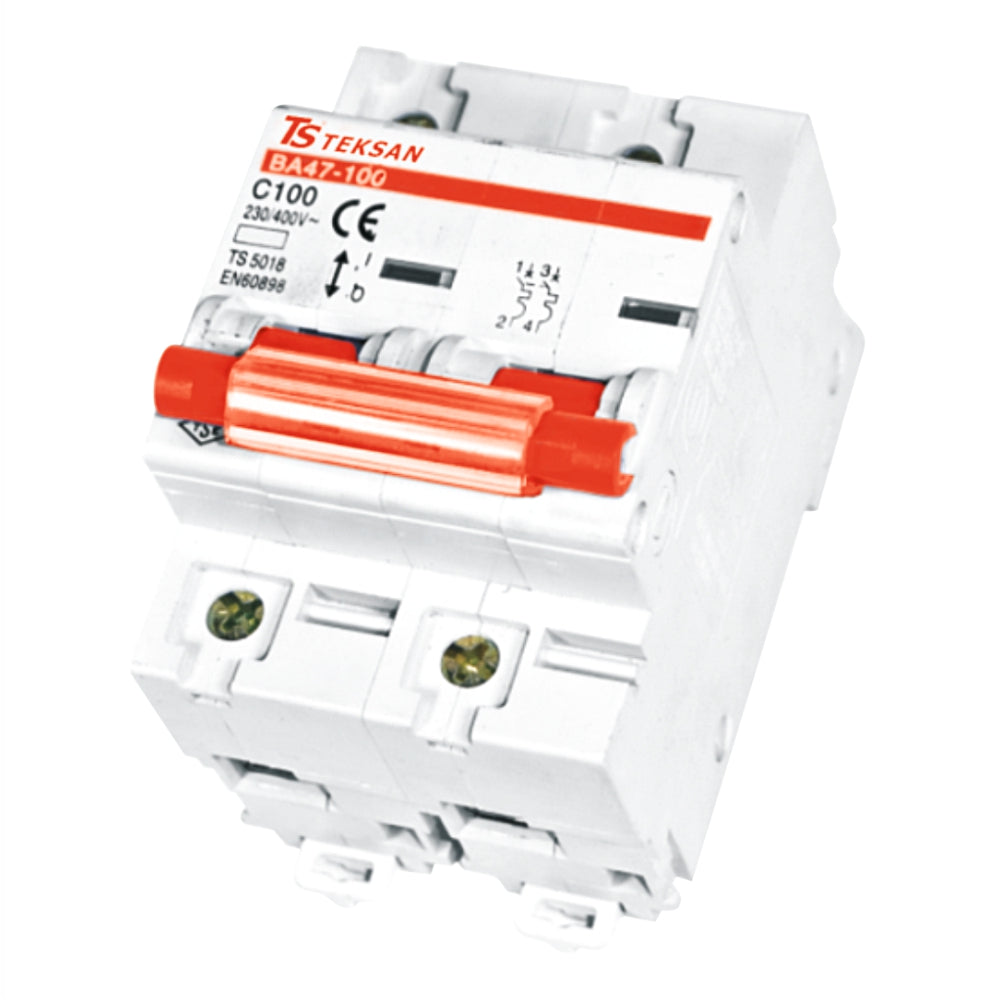

TheTEKSAN BA47-100Hisa heavy-duty, 2-pole miniature circuit breaker (MCB) designed to protect high-load electrical circuits from overloads and short circuits. Given its high 100A rating, it is typically used as amain switchor for heavy machinery in residential, commercial, or industrial distribution boards.
Technical Specifications
Model:BA47-100
Poles:2P (Double Pole)
Rated Current (In):100A
Tripping Curve:Type C
Note:Type C breakers are designed to handle moderate inductive loads and typically trip at 5 to 10 times the rated current. This makes them ideal for commercial and industrial applications with motors or fluorescent lighting.
Rated Voltage (Un):230/400V AC
Breaking Capacity:Typically 6kA or 10kA (refer to the specific series marking for final verification).
Standard Compliance:TS 5018 / EN60898.
Key Features
High Current Handling:One of the highest capacities for a standard DIN-rail mounted MCB, suitable for main incoming lines or high-power equipment.
Synchronized Tripping:The 2-pole design ensures that both the phase and neutral (or two phases) are disconnected simultaneously in the event of a fault.
Durable Build:Features a robust white housing with a prominent red toggle switch for clear status indication and easy manual operation.
Safety Mounting:Designed for standard 35mm DIN rail installation with secure screw terminals for heavy-gauge wiring.
Usage Guidance
Because this breaker handles100 Amps, it is critical that the connected wiring is of a sufficient gauge (typically25mm² to 35mm²) to prevent overheating. This unit is often paired with anRCCB (Residual Current Circuit Breaker)to provide comprehensive protection against both overcurrents and earth leakage.
Specifications
TheTEKSAN BA47-100Hisa heavy-duty, 2-pole miniature circuit breaker (MCB) designed to protect high-load electrical circuits from overloads and short circuits. Given its high 100A rating, it is typically used as amain switchor for heavy machinery in residential, commercial, or industrial distribution boards.
Technical Specifications
Model:BA47-100
Poles:2P (Double Pole)
Rated Current (In):100A
Tripping Curve:Type C
Note:Type C breakers are designed to handle moderate inductive loads and typically trip at 5 to 10 times the rated current. This makes them ideal for commercial and industrial applications with motors or fluorescent lighting.
Rated Voltage (Un):230/400V AC
Breaking Capacity:Typically 6kA or 10kA (refer to the specific series marking for final verification).
Standard Compliance:TS 5018 / EN60898.
Key Features
High Current Handling:One of the highest capacities for a standard DIN-rail mounted MCB, suitable for main incoming lines or high-power equipment.
Synchronized Tripping:The 2-pole design ensures that both the phase and neutral (or two phases) are disconnected simultaneously in the event of a fault.
Durable Build:Features a robust white housing with a prominent red toggle switch for clear status indication and easy manual operation.
Safety Mounting:Designed for standard 35mm DIN rail installation with secure screw terminals for heavy-gauge wiring.
Usage Guidance
Because this breaker handles100 Amps, it is critical that the connected wiring is of a sufficient gauge (typically25mm² to 35mm²) to prevent overheating. This unit is often paired with anRCCB (Residual Current Circuit Breaker)to provide comprehensive protection against both overcurrents and earth leakage.
