CON 1*2.5MM² STRANDS CABLE (SIGNAL)
CON 1*2.5MM² STRANDS CABLE (SIGNAL)
Regular price
GH₵600.00
Sale price
GH₵600.00
Unit price
per
Light bulb sold separately
SKU: SKU: 401-56404 EAN:| EAN:
Low stock: 5 available
Couldn't load pickup availability

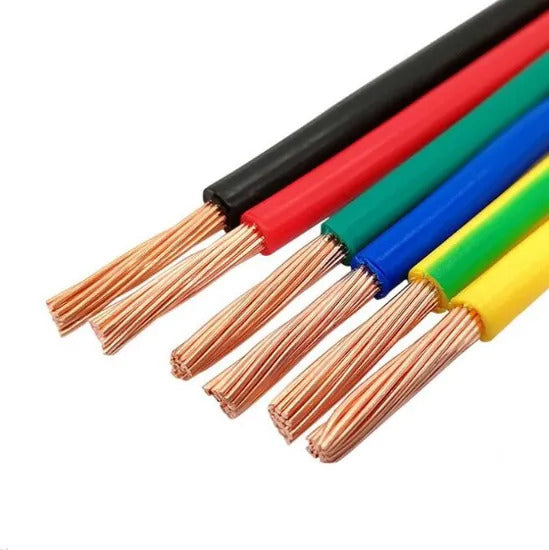

CON 1*2.5MM² STRANDS CABLE (SIGNAL)
Red
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The CON. 1x2.5MM Stranded Single-Core Electrical Cable is a mid-capacity, highly flexible power and signal conductor engineered for heavy-duty internal wiring, power distribution loops, and robust circuit protection pathways
Description
The CON. 1x2.5MM Stranded Cable consists of a single-core conductor formed from multiple fine, high-purity plain annealed copper wires bunched together into a Class 5 flexible stranded format. This configuration offers superior pliability compared to rigid solid-core conductors, allowing it to navigate sharp bends, structural framing, and crowded enclosures without risk of internal copper stress or breakage.
The flexible core is protected by a thick, resilient layer of high-grade Polyvinyl Chloride (PVC) insulation. To accommodate international electrical regulations and ease system tracing, these single-core cables are available in an array of vibrant, standardized color coatings (Black, Red, Green, Blue, Green/Yellow, and Yellow) for easy identification of phase, neutral, and protective earth lines.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Single-Core Stranded Flexible Power & Control Cable |
| Conductor Cross-Section / Length | 2.5 mm² / 100 Yards |
| Conductor Material | High-Conductivity Electrolytic Grade Flexible Copper (Class 5) |
| Insulation Material | Flame-Retardant Polyvinyl Chloride (PVC) Compound |
| Available Insulation Colors | Black, Red, Green, Blue, Yellow, Green/Yellow (Earth) |
| Voltage Rating (Uo/U) | 450/750V AC (Standard Mains Power Rating) |
| Operating Temperature | Continuous Operation: -5°C to +70°C |
| Standards Compliance | Built in compliance with BS EN 50525-2-31 / IEC 60227 guidelines |
Application and Best Uses
The heavy-duty 2.5mm² cross-sectional area is the standard size for general power ring mains and socket outlets, carrying higher current thresholds safely without overheating.
- Power Sockets & Ring Circuits: The premier wire choice for supplying standard 13A electrical socket outlets, wall plugs, and ring main configurations across domestic and commercial buildings.
- Distribution Board Main Interconnects: Extensively utilized inside electrical panel boards and consumer boxes for routing primary connections between main isolators, RCCBs, and individual breaker lines.
- Embedded Conduit Installations: Highly ideal for snaking through plastic, metal, or corrugated conduit networks hidden inside brickwork, plaster, or overhead ceiling grids.
- Medium-Duty Appliance Feeds: Frequently used for supplying dedicated power loops to appliances requiring localized sub-protection, such as water pumps, microwave lines, split air conditioners, and small commercial kitchen fixtures.
Specifications
The CON. 1x2.5MM Stranded Single-Core Electrical Cable is a mid-capacity, highly flexible power and signal conductor engineered for heavy-duty internal wiring, power distribution loops, and robust circuit protection pathways
Description
The CON. 1x2.5MM Stranded Cable consists of a single-core conductor formed from multiple fine, high-purity plain annealed copper wires bunched together into a Class 5 flexible stranded format. This configuration offers superior pliability compared to rigid solid-core conductors, allowing it to navigate sharp bends, structural framing, and crowded enclosures without risk of internal copper stress or breakage.
The flexible core is protected by a thick, resilient layer of high-grade Polyvinyl Chloride (PVC) insulation. To accommodate international electrical regulations and ease system tracing, these single-core cables are available in an array of vibrant, standardized color coatings (Black, Red, Green, Blue, Green/Yellow, and Yellow) for easy identification of phase, neutral, and protective earth lines.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Single-Core Stranded Flexible Power & Control Cable |
| Conductor Cross-Section / Length | 2.5 mm² / 100 Yards |
| Conductor Material | High-Conductivity Electrolytic Grade Flexible Copper (Class 5) |
| Insulation Material | Flame-Retardant Polyvinyl Chloride (PVC) Compound |
| Available Insulation Colors | Black, Red, Green, Blue, Yellow, Green/Yellow (Earth) |
| Voltage Rating (Uo/U) | 450/750V AC (Standard Mains Power Rating) |
| Operating Temperature | Continuous Operation: -5°C to +70°C |
| Standards Compliance | Built in compliance with BS EN 50525-2-31 / IEC 60227 guidelines |
Application and Best Uses
The heavy-duty 2.5mm² cross-sectional area is the standard size for general power ring mains and socket outlets, carrying higher current thresholds safely without overheating.
- Power Sockets & Ring Circuits: The premier wire choice for supplying standard 13A electrical socket outlets, wall plugs, and ring main configurations across domestic and commercial buildings.
- Distribution Board Main Interconnects: Extensively utilized inside electrical panel boards and consumer boxes for routing primary connections between main isolators, RCCBs, and individual breaker lines.
- Embedded Conduit Installations: Highly ideal for snaking through plastic, metal, or corrugated conduit networks hidden inside brickwork, plaster, or overhead ceiling grids.
- Medium-Duty Appliance Feeds: Frequently used for supplying dedicated power loops to appliances requiring localized sub-protection, such as water pumps, microwave lines, split air conditioners, and small commercial kitchen fixtures.
