Description
The CON. 1x4MM Stranded Single-Core Electrical Cable is a high-capacity, highly flexible power and signal conductor engineered for heavy-duty internal wiring, main power loops, and reliable sub-panel infrastructure.
Description

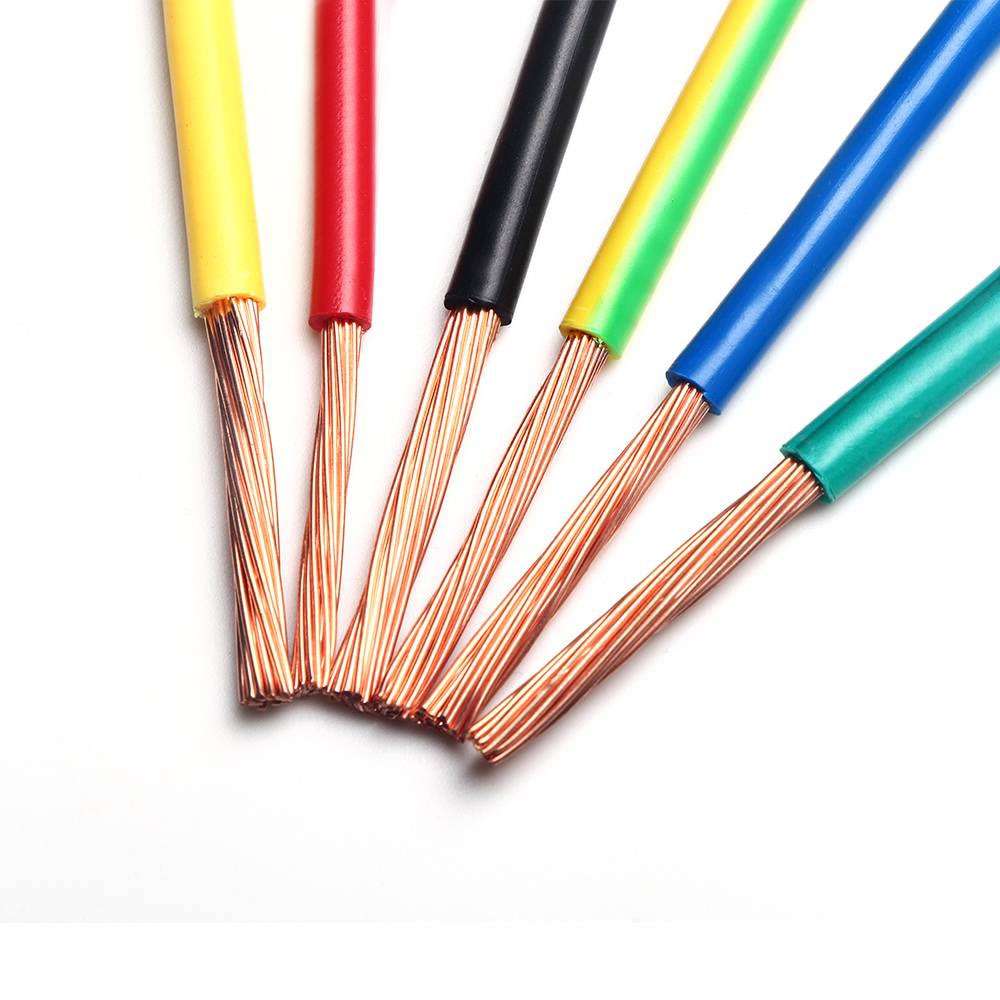

The CON. 1x4MM Stranded Cable features a robust single-core conductor formed from multiple fine, high-purity plain annealed copper wires tightly bunched together into a Class 5 flexible stranded format. This configuration offers exceptional pliability compared to rigid solid-core conductors, allowing it to navigate sharp bends, heavy-duty trunking, and crowded distribution boards without structural stress or internal wire breakage.
The flexible core is protected by a thick, resilient layer of high-grade Polyvinyl Chloride (PVC) insulation. To accommodate international electrical regulations and ease system identification, these single-core cables are available in an array of vibrant, standardized color coatings (including Yellow, Red, Black, Yellow/Green, Blue, and Green) for clear separation of phase, neutral, and protective earth lines.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Single-Core Stranded Flexible Power & Control Cable |
| Conductor Cross-Section | 4.0 mm² |
| Conductor Material | High-Conductivity Electrolytic Grade Flexible Copper (Class 5) |
| Insulation Material | Flame-Retardant Polyvinyl Chloride (PVC) Compound |
| Available Insulation Colors | Yellow, Red, Black, Green/Yellow (Earth), Blue, Green |
| Voltage Rating (Uo/U) | 450/750V AC (Standard Mains Power Rating) |
| Operating Temperature | Continuous Operation: -5°C to +70°C |
| Standards Compliance | Built in compliance with BS EN 50525-2-31 / IEC 60227 guidelines |
Application and Best Uses
The heavy-duty 4.0mm² cross-sectional area is engineered to handle substantial current thresholds safely, making it a staple for high-wattage appliance lines and major power loops.
- High-Power Appliance Dedicated Circuits: The premier wire choice for supplying dedicated power loops to high-draw domestic and commercial machinery, such as large split-system air conditioners, water pumps, water heaters, and electric cookers/ovens.
- Distribution Board Main Links: Extensively utilized inside electrical panel boards, consumer units, and changeover switch boxes for routing heavy-duty primary connections between main isolators, surge protectors, and individual breaker rows.
- Heavy-Duty Conduit & Trunking Installations: Highly ideal for snaking through plastic, metal, or corrugated conduit networks hidden inside brickwork, plaster, or overhead ceiling grids where multiple high-current lines must run simultaneously.
- Industrial Control Panel Signaling: Frequently used for routing high-current signal controls and power supplies to industrial relay cabinets, automation panels, and contactor blocks.
Specifications
