CON 1x16MM STRANDS CABLE (SIGNAL)
CON 1x16MM STRANDS CABLE (SIGNAL)
Regular price
GH₵4,061.00
Sale price
GH₵4,061.00
Unit price
per
Light bulb sold separately
SKU: SKU: 401-56416 EAN:| EAN:
Low stock: 1 available
Couldn't load pickup availability
CON 1x16MM STRANDS CABLE (SIGNAL)
Black
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

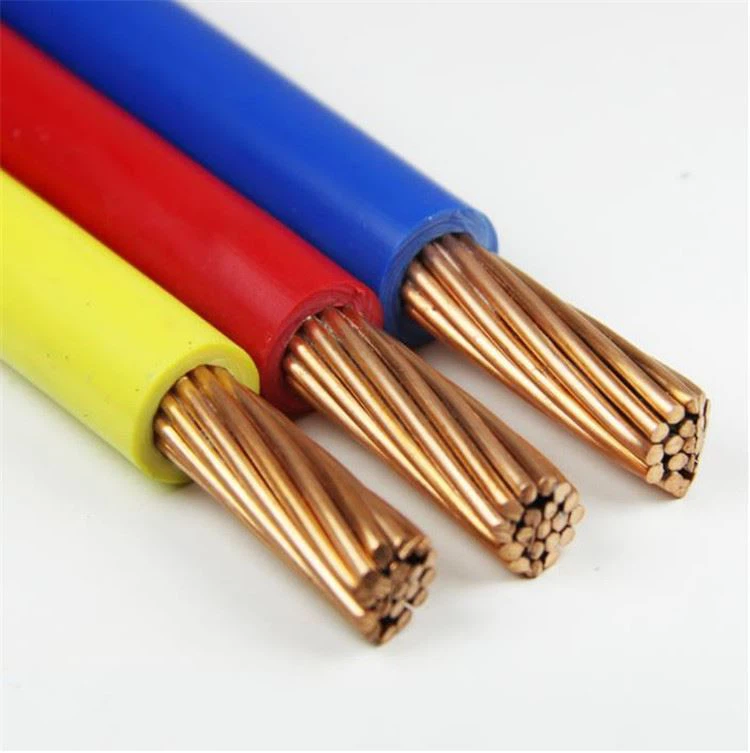

The TEKLED CON 1×16mm Stranded Cable (Signal) is a heavy-duty, large-gauge single-core electrical conductor. This cable is designed to provide high current-carrying capacity and very low electrical resistance, making it an excellent choice for critical low-voltage power paths and high-integrity signal networks across long runs.
Product Description
This single-core cable features a high-purity, multi-stranded copper core with a 16.0 mm² nominal cross-sectional area. Composed of multiple intertwined bare copper strands (typically arranged in a concentric Class 2 stranded format or Class 5 flexible format), it delivers high electrical conductivity while maintaining necessary installation pliability. The 16mm² gauge maximizes cross-sectional metal mass to minimize voltage drop over extended distances, while the insulated thermoplastic jacket offers reliable protection against environmental wear and electrical faults.
Technical Specifications
This 16mm² cable meets strict international transmission guidelines:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand / Supplier | TEKLED Ghana |
| Conductor Configuration | Single-core, multi-strand layout (H07V-R / BVR Class 2 or 5) |
| Core Material | 99.97% Pure Annealed Oxygen-Free Bare Copper |
| Nominal Cross-Section / Total Lenght | 16.0 mm² / 100Yards |
| Insulation Compounds | Fire-Retardant Polyvinyl Chloride (FR-PVC) |
| Voltage Metric | 450V / 750V AC (Up to 600V/1000V DC for auxiliary paths) |
| Max Core DC Resistance |
≤ 1.15 Ω/km 20°C (Extremely low impedance) |
| Thermal Operation Limits | -15°C to +70°C ambient exposure limits |
| Available Outer Jacket Colors | Blue, Red, Yellow, Black, Green/Yellow (Earth) |
| Harmonized Standards | BS EN 50525-2-31, IEC 60227 / IEC 60228, RoHS |
System Applications
The substantial 16mm² profile enables this cable to act as a crucial link in heavy current routing, low-impedance grounding pathways, and stable telemetry systems:
- Main Distribution Board & Switchgear Links: Serves as heavy-duty internal bridge wiring inside commercial consumer units and industrial switchgear to handle high-amperage breakers safely.
- Master Functional Earth Backbones: Employed as a premier grounding backbone (Clean Earth) for IT server centers, telecommunication towers, and sensitive industrial control terminals to isolate EMI.
- High-Capacity Solar PV Arrays: Manages heavy DC inputs running from large commercial solar panel strings back down to central inverter stations or main distribution matrices.
- Heavy Architectural LED & Stage Feeds: Deployed as a heavy sub-feed conductor supplying power to massive outdoor lighting networks and stage control systems, effectively mitigating voltage drop over long linear cable runs.
- Industrial Automation & Machinery Control: Controls critical high-current power loops and feedback telemetry signal returns on large industrial factory lines subjected to baseline operational vibrations.
Specifications
The TEKLED CON 1×16mm Stranded Cable (Signal) is a heavy-duty, large-gauge single-core electrical conductor. This cable is designed to provide high current-carrying capacity and very low electrical resistance, making it an excellent choice for critical low-voltage power paths and high-integrity signal networks across long runs.
Product Description
This single-core cable features a high-purity, multi-stranded copper core with a 16.0 mm² nominal cross-sectional area. Composed of multiple intertwined bare copper strands (typically arranged in a concentric Class 2 stranded format or Class 5 flexible format), it delivers high electrical conductivity while maintaining necessary installation pliability. The 16mm² gauge maximizes cross-sectional metal mass to minimize voltage drop over extended distances, while the insulated thermoplastic jacket offers reliable protection against environmental wear and electrical faults.
Technical Specifications
This 16mm² cable meets strict international transmission guidelines:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand / Supplier | TEKLED Ghana |
| Conductor Configuration | Single-core, multi-strand layout (H07V-R / BVR Class 2 or 5) |
| Core Material | 99.97% Pure Annealed Oxygen-Free Bare Copper |
| Nominal Cross-Section / Total Lenght | 16.0 mm² / 100Yards |
| Insulation Compounds | Fire-Retardant Polyvinyl Chloride (FR-PVC) |
| Voltage Metric | 450V / 750V AC (Up to 600V/1000V DC for auxiliary paths) |
| Max Core DC Resistance |
≤ 1.15 Ω/km 20°C (Extremely low impedance) |
| Thermal Operation Limits | -15°C to +70°C ambient exposure limits |
| Available Outer Jacket Colors | Blue, Red, Yellow, Black, Green/Yellow (Earth) |
| Harmonized Standards | BS EN 50525-2-31, IEC 60227 / IEC 60228, RoHS |
System Applications
The substantial 16mm² profile enables this cable to act as a crucial link in heavy current routing, low-impedance grounding pathways, and stable telemetry systems:
- Main Distribution Board & Switchgear Links: Serves as heavy-duty internal bridge wiring inside commercial consumer units and industrial switchgear to handle high-amperage breakers safely.
- Master Functional Earth Backbones: Employed as a premier grounding backbone (Clean Earth) for IT server centers, telecommunication towers, and sensitive industrial control terminals to isolate EMI.
- High-Capacity Solar PV Arrays: Manages heavy DC inputs running from large commercial solar panel strings back down to central inverter stations or main distribution matrices.
- Heavy Architectural LED & Stage Feeds: Deployed as a heavy sub-feed conductor supplying power to massive outdoor lighting networks and stage control systems, effectively mitigating voltage drop over long linear cable runs.
- Industrial Automation & Machinery Control: Controls critical high-current power loops and feedback telemetry signal returns on large industrial factory lines subjected to baseline operational vibrations.
