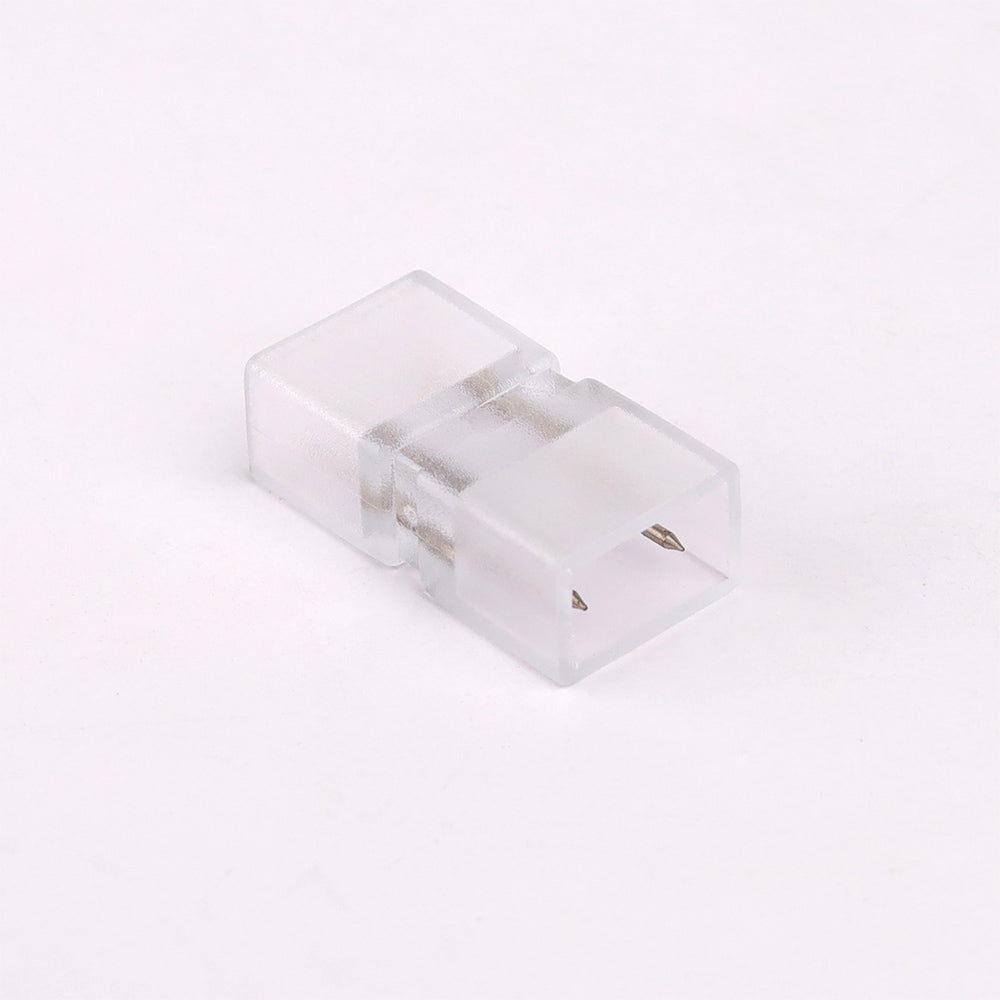

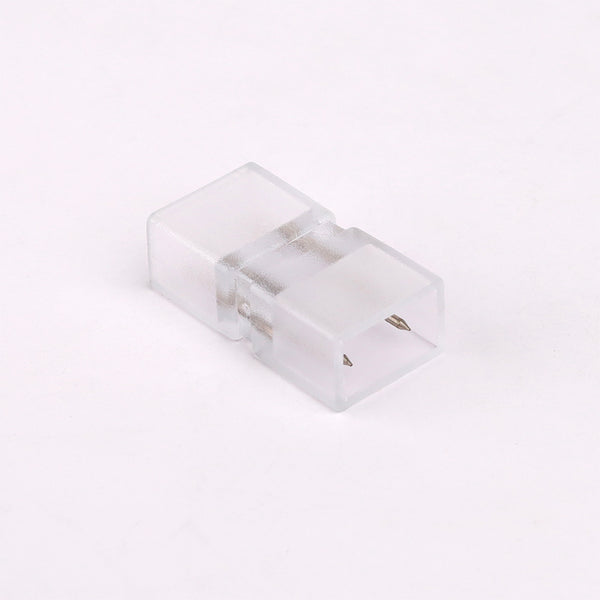

Connector for 3528/220V (TEKLED)
Connector for 3528/220V (TEKLED)
Regular price
GH₵7.00
Sale price
GH₵7.00
Unit price
per
Light bulb sold separately
SKU: SKU: 582-03310 EAN:| EAN:
In stock. 25 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
Connector for 3528/220V (TEKLED)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The TEKLED 3528 220V LED Strip Light Connector is a heavy-duty, solderless inline connection adapter engineered specifically for mains-voltage linear lighting. Molded from premium high-transmittance, flame-retardant clear polycarbonate, this structural coupling sleeve allows installers to cleanly link two sections of high-voltage LED strip lights or join a strip to a power cable with absolute structural safety and zero dark zones.
Technical Specifications
The standard mechanical and electrical baselines for this 220V connector sleeve include:
- Compatibility Profile: Built explicitly for 3528 SMD single-color high-voltage LED strip lights.
- Operating Mains Threshold: Optimized for 220V–240V AC high-voltage electrical circuits.
- Pin Configuration: Heavy-gauge 2-Pin internal conductive layout (designed to match standard 3528 tape line traces).
- Connection Mechanism: Solderless, dual-sided pierce-and-clamp coupling system.
- Enclosure Composition: High-grade, UV-stabilized crystal clear polycarbonate (PC) housing that limits yellowing over long run-times.
- Maximum Continuous Load Capacity: Safely supports continuous strip segments stretching up to 50 meters depending on system wire gauge boundaries.
- Ingress Protection (IP): IP20 baseline safety rating (requires specialized silicone sealant and heat-shrink tubing to achieve an outdoor weatherproof rating).
Applications & Use Cases
Because this connector eliminates the need for complex field-soldering on dangerous mains-voltage systems, it is highly favored for several installations:
- Splicing & Extensions: Ideal for cleanly linking multiple reels or leftover cuts of 220V LED strip lights to create seamless, ultra-long linear runs.
- Architectural Cove Light Maintenance: Used to repair or join sections of accent tape lights tucked away inside dropped ceilings, building bulkheads, and shadow coves.
- Commercial Signage & Border Contours: Simplifies the on-site wire configuration of perimeter building borders, long step-riser lights, and custom retail display light boxes.
- Corners & Modular Layouts: Works as a critical connection block when paired with short flexible wire jumpers to route high-voltage strip segments around tight \(90^{\circ }\) walls or multi-tier shelving corners.
Specifications
The TEKLED 3528 220V LED Strip Light Connector is a heavy-duty, solderless inline connection adapter engineered specifically for mains-voltage linear lighting. Molded from premium high-transmittance, flame-retardant clear polycarbonate, this structural coupling sleeve allows installers to cleanly link two sections of high-voltage LED strip lights or join a strip to a power cable with absolute structural safety and zero dark zones.
Technical Specifications
The standard mechanical and electrical baselines for this 220V connector sleeve include:
- Compatibility Profile: Built explicitly for 3528 SMD single-color high-voltage LED strip lights.
- Operating Mains Threshold: Optimized for 220V–240V AC high-voltage electrical circuits.
- Pin Configuration: Heavy-gauge 2-Pin internal conductive layout (designed to match standard 3528 tape line traces).
- Connection Mechanism: Solderless, dual-sided pierce-and-clamp coupling system.
- Enclosure Composition: High-grade, UV-stabilized crystal clear polycarbonate (PC) housing that limits yellowing over long run-times.
- Maximum Continuous Load Capacity: Safely supports continuous strip segments stretching up to 50 meters depending on system wire gauge boundaries.
- Ingress Protection (IP): IP20 baseline safety rating (requires specialized silicone sealant and heat-shrink tubing to achieve an outdoor weatherproof rating).
Applications & Use Cases
Because this connector eliminates the need for complex field-soldering on dangerous mains-voltage systems, it is highly favored for several installations:
- Splicing & Extensions: Ideal for cleanly linking multiple reels or leftover cuts of 220V LED strip lights to create seamless, ultra-long linear runs.
- Architectural Cove Light Maintenance: Used to repair or join sections of accent tape lights tucked away inside dropped ceilings, building bulkheads, and shadow coves.
- Commercial Signage & Border Contours: Simplifies the on-site wire configuration of perimeter building borders, long step-riser lights, and custom retail display light boxes.
- Corners & Modular Layouts: Works as a critical connection block when paired with short flexible wire jumpers to route high-voltage strip segments around tight \(90^{\circ }\) walls or multi-tier shelving corners.
