12W Downlight LED Round Slim Panel Light D170mm - 4000K Cool White.

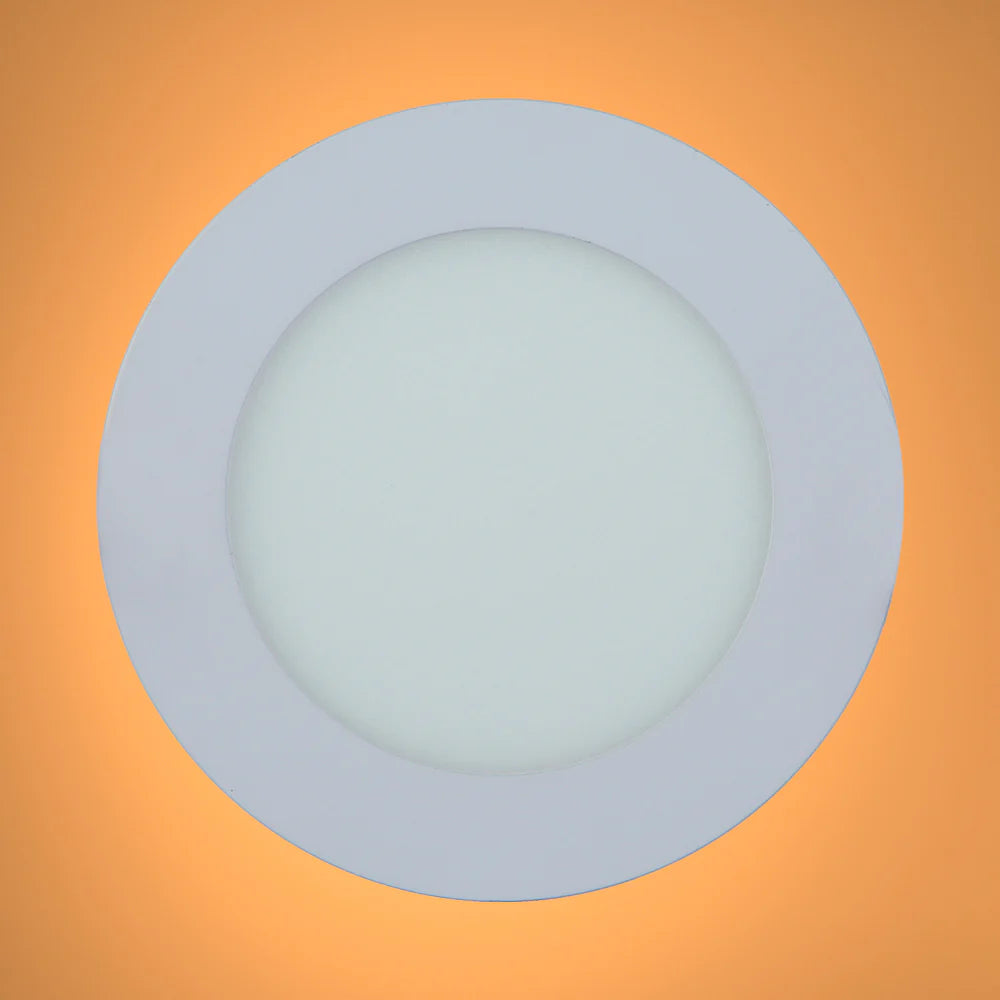

Downlight LED Round Slim Panel Light 12W D170mm

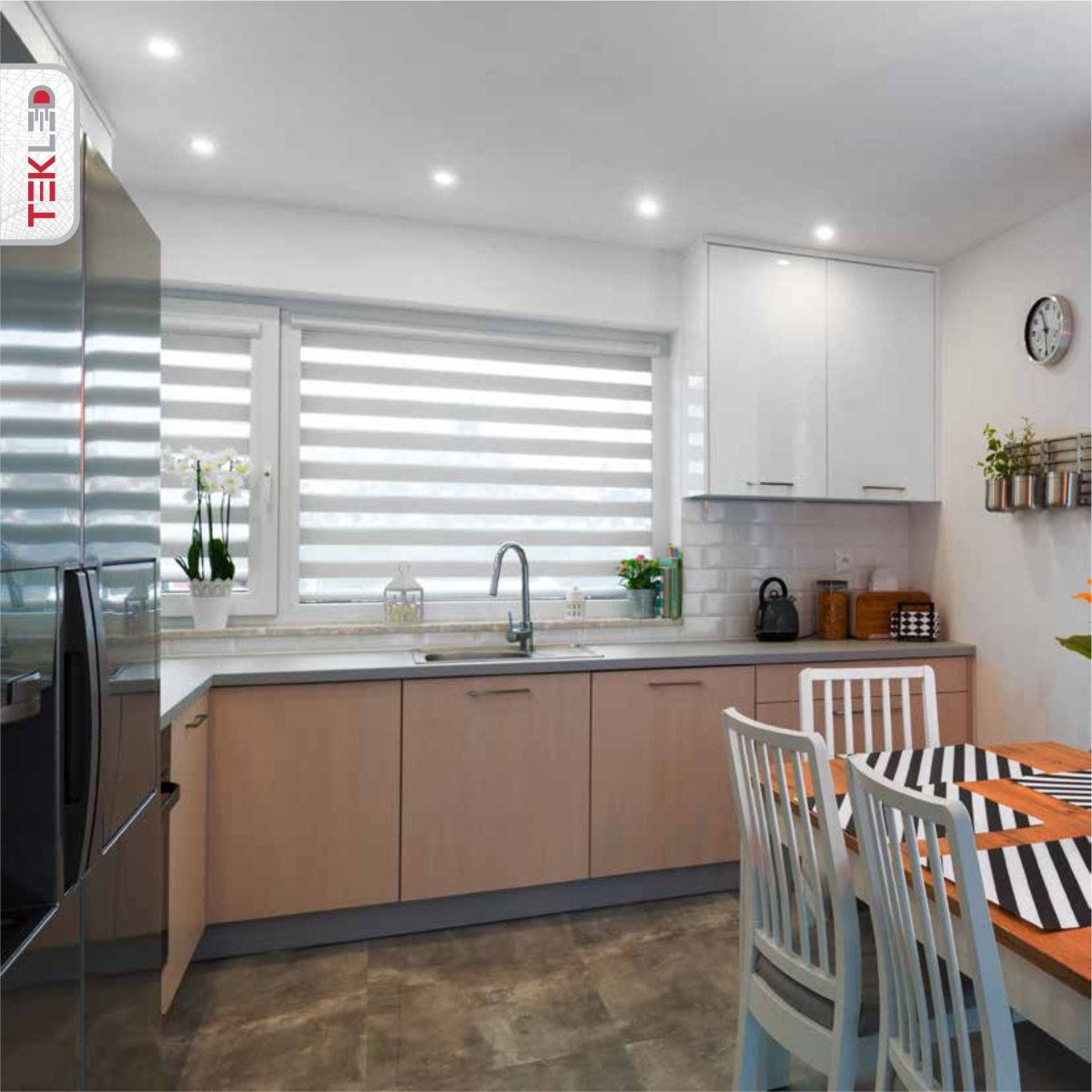

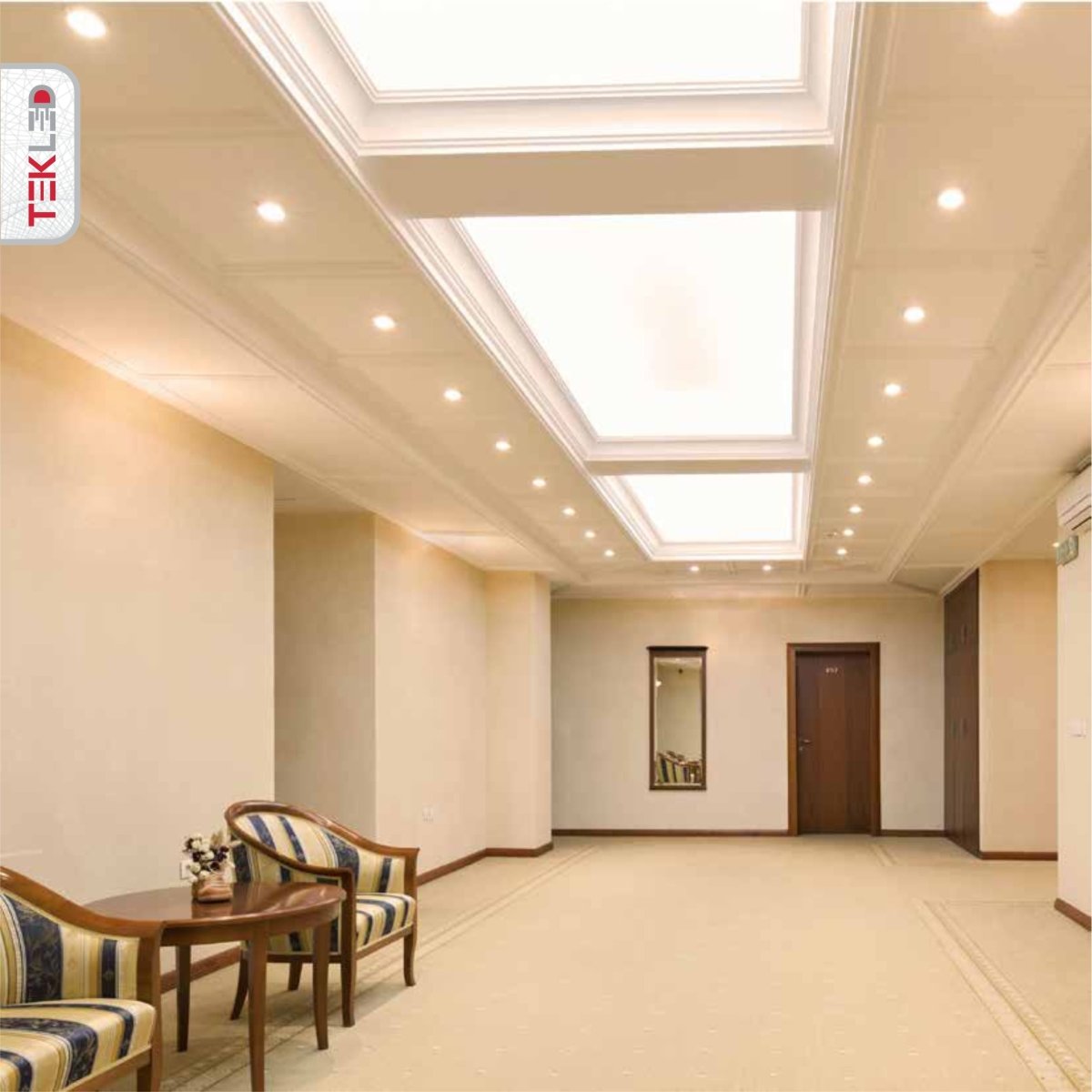

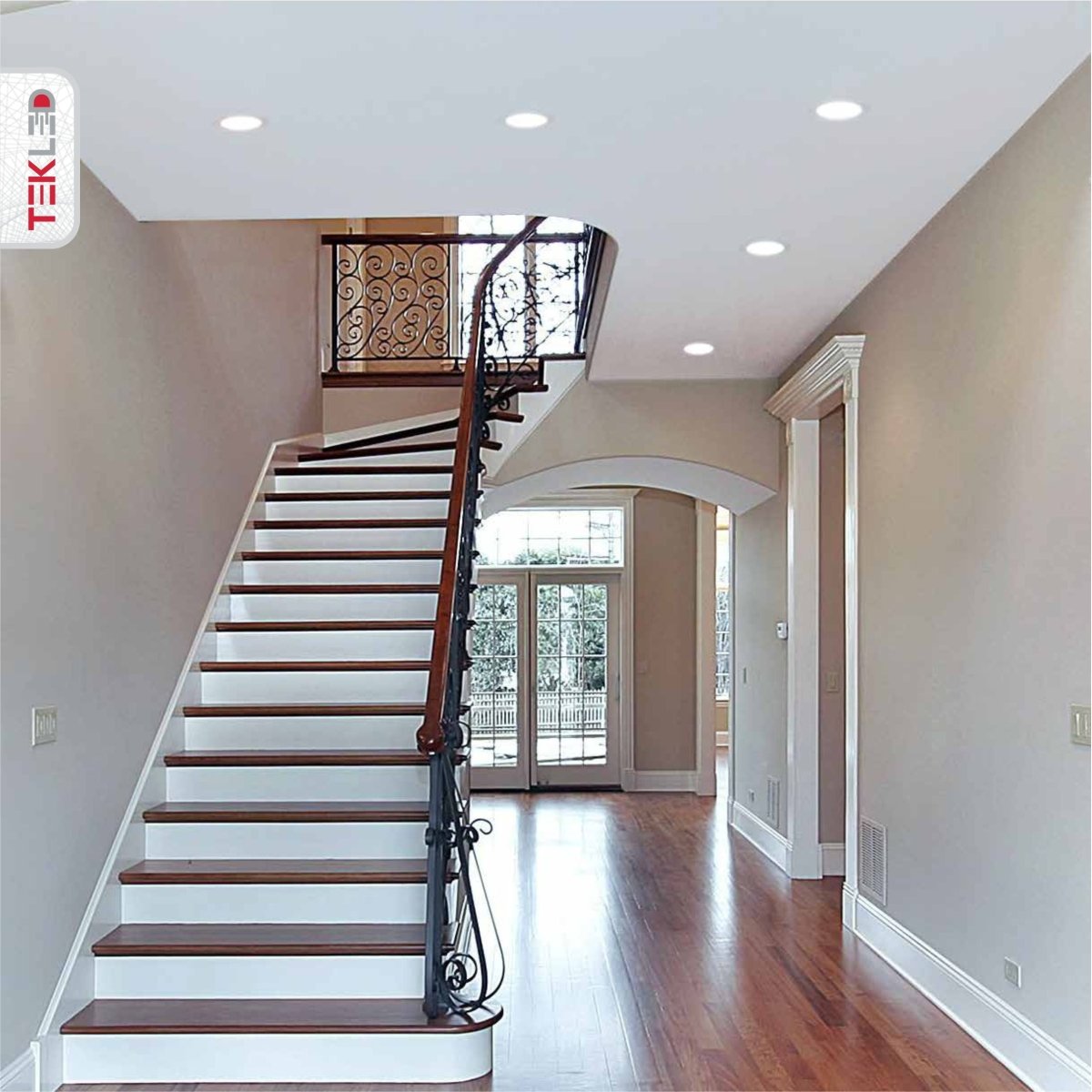

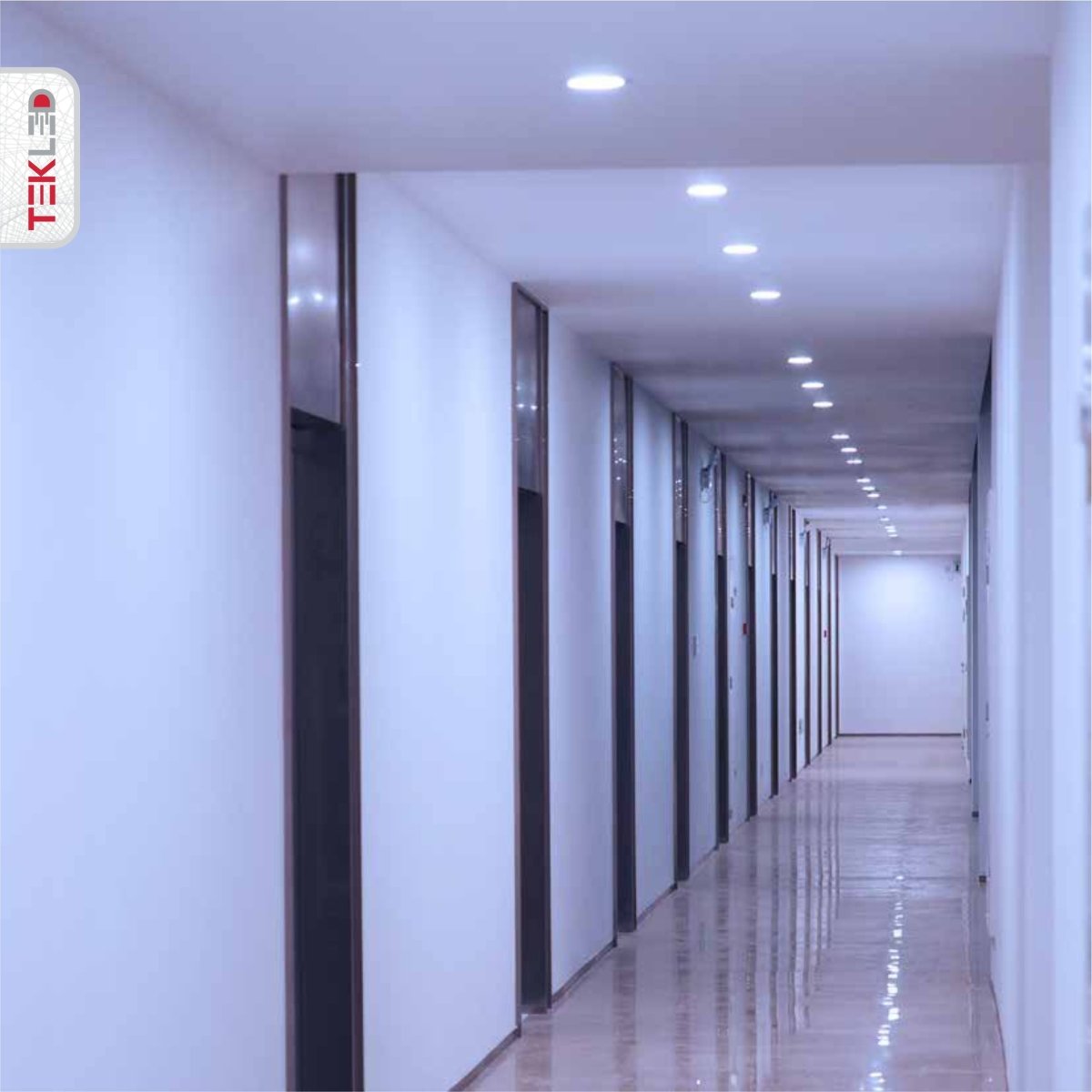

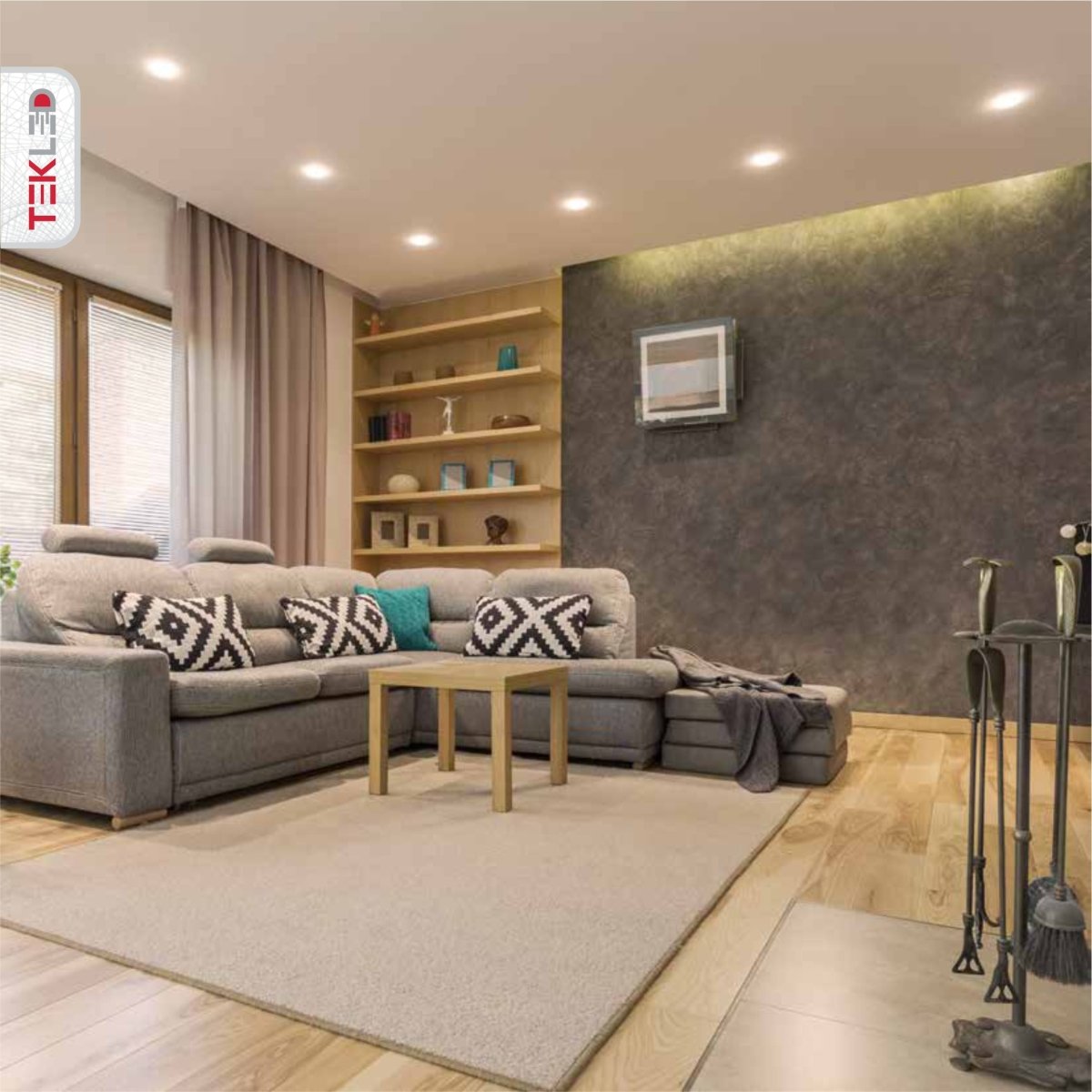

Bring home the new range of LED round slim panel downlight from TEKLED for a brighter and even illumination all around while saving up to 80% on your electricity bills. This IP 20 recessed mount light is made from high quality aluminium and steel, making it highly durable. With a colour rendering index of 80, this hardwired downlight comes with integrated LEDs which run for more hours than any traditional incandescent lamp and give you non-flickering brightness. These LED panel light can be installed in dining room, living Room, hallways, balcony, bedrooms, kitchen, bathroom, staircases, garage, office, school, hospital, restaurants, hotels, shops, beauty salons and any such places that require to be lit up for longer periods of time. LEDs also save you big bucks on lamp replacement costs, making this a highly cost effective purchase for you. Our high quality LED Lights are elegant in design and integrate seamlessly with your ceilings. All are our LED Lights are extremely energy efficient and feature high efficiency LED driver giving outstanding lighting performance while being extremely low on energy consumption. More so, our lights dissipate least amount of heat to the environment resulting in cooler and comfortable indoors. This fixture comes fitted with 12W 3000K warm white LEDs, 4000K cool white LEDs and 5700K cool daylight LEDs. You can choose the colour temperature as per your need and set up an ambience for yourself.

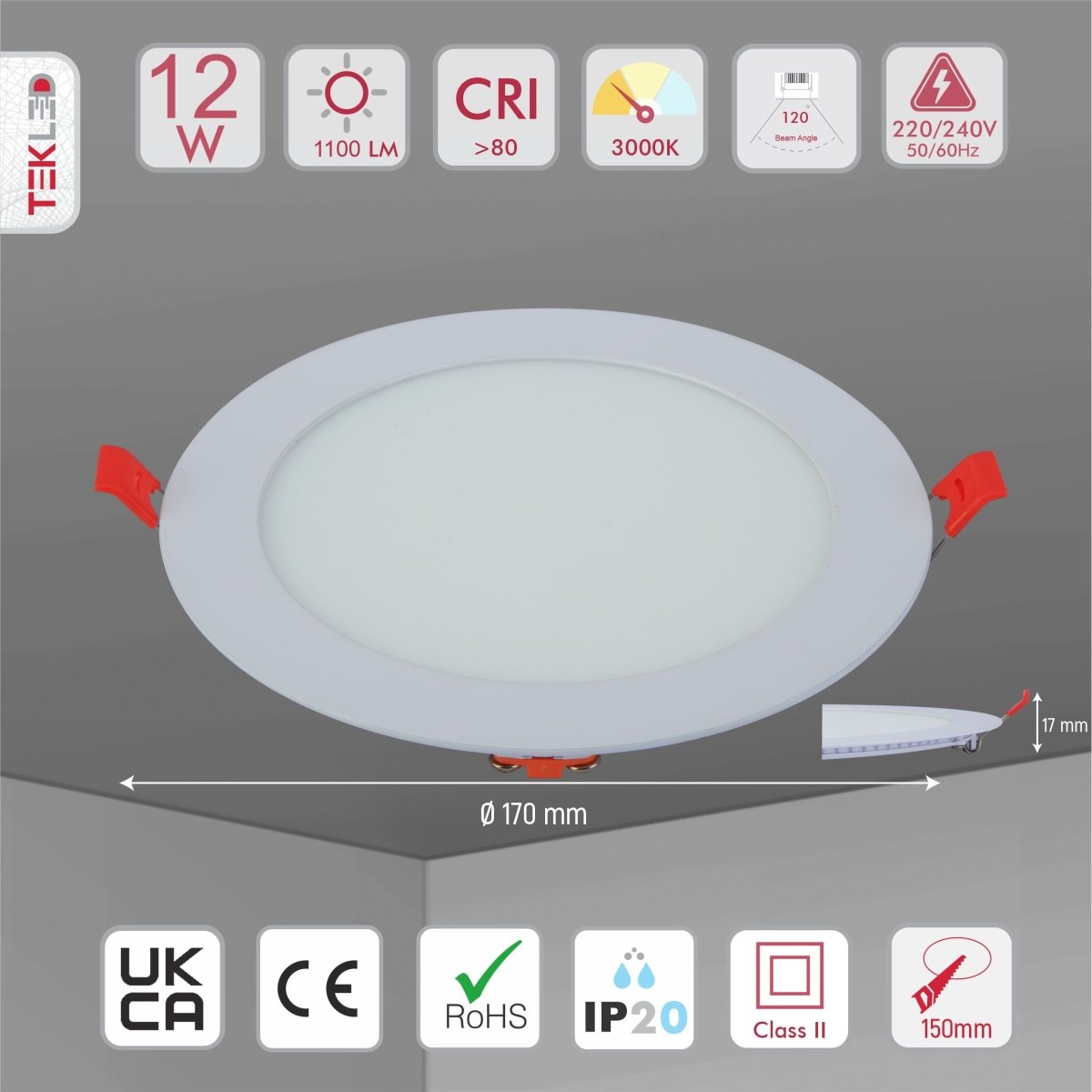

Technical Specifications
Product Code | 165-03608 | 165-03609 | 165-03610 |
Power | 12W |
Power Source | Hardwired |
Voltage | 85/265V AC 50/60Hz |
Lamp Holder Type | Built-in LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | SMD 2835 LED |
Led Quantity | 5P12S 60 PCS |
Bulbs | Integrated LED, no need additional bulb |
Lit Type | Edge Lit |
Lumen | 1100lm |
Luminous Efficacy | 90lm/W |
Lux | 36Lux @2m | 37Lux @2m |
CRI | CRI>80 |
CCT (Kelvin) Light Colour | 3000K Warm White | 4000K Cool White | 5700K Cool Daylight |
Flickering | Flicker-free |
IP Class | IP20 |
Mount Type | Recessed Mount |
Product Dimensions (LxWxH) (DxH) | D170x17mm |
Cutout Size | D150mm |
Power Cord Length | 150mm |

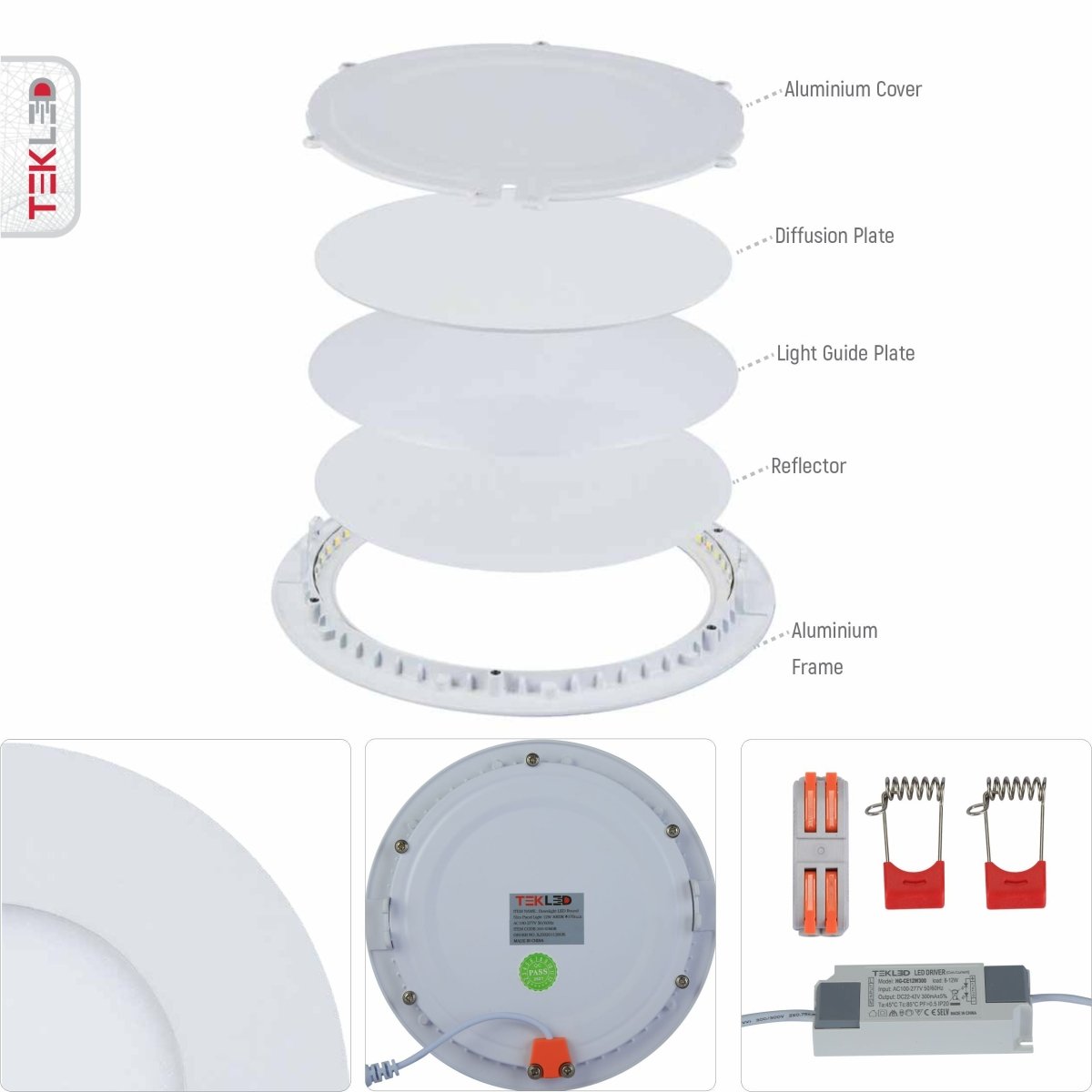

Made Of Materials | Aluminium, Steel, Polystyrene |
Product Colour | White |
Paint Type | Spray Painted |
Diffuser Material | PS (Polystyrene) |
Diffuser Type | Opal |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | F |
Energy Rating Range | A-G |
Warranty | 2 year |
Life Span | 30000h |
Net Weight | 220g |
Gross Weight | 260g |
Box Dimension (LxWxH) | 17.5x2.5x20.5cm |
Box Content | 1 pc Light Fixture, User Manual, 2 pcs Springs, 1 pc Terminal |
Certifications | UKCA, CE, RoHS |
