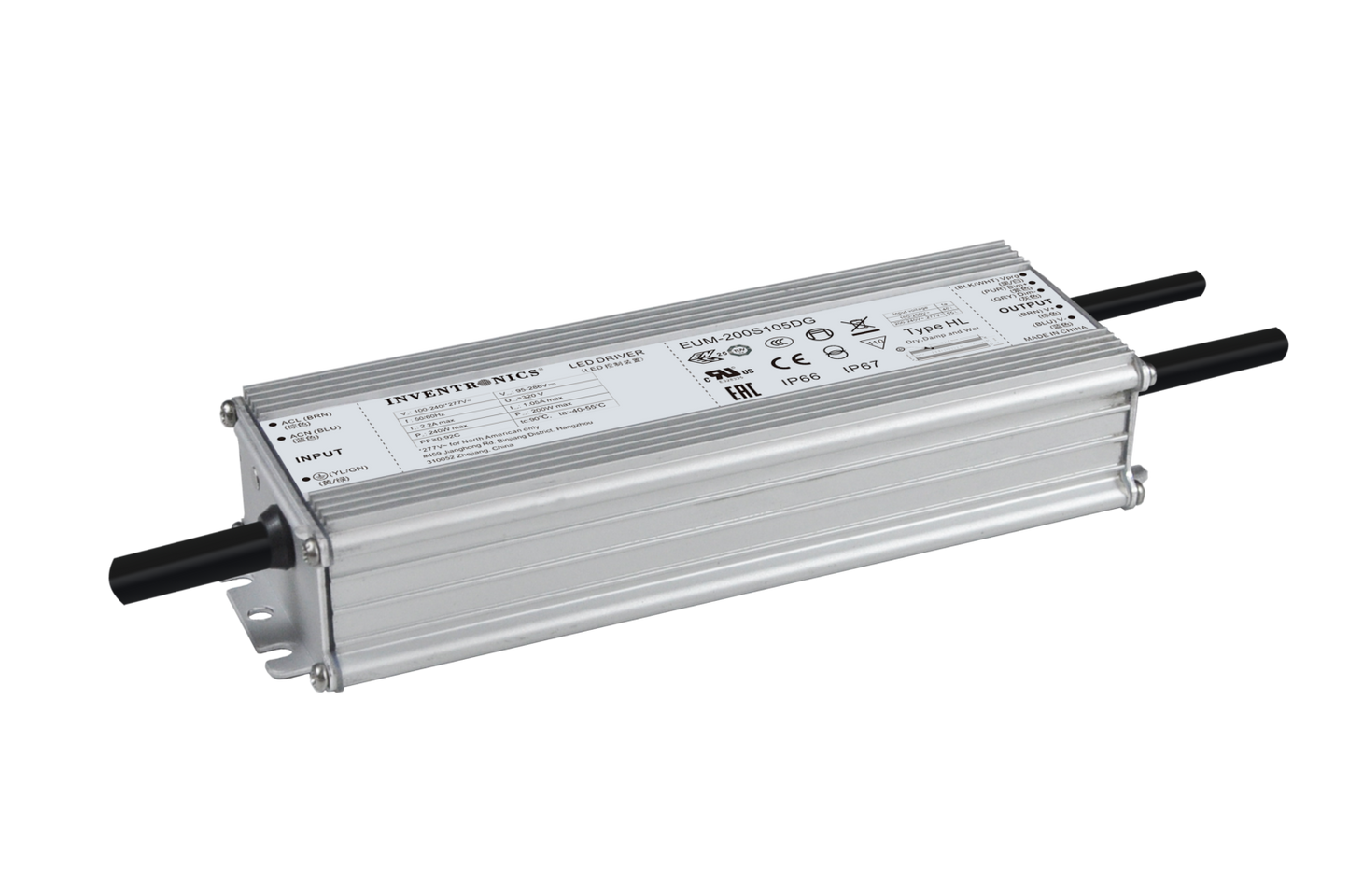

DRIVER FOR POWERLIN EUM-200S105DG (224-03356)

The Inventronics EUM-200S105DG Constant Current Programmable LED Driver is an industrial-grade, high-performance power supply unit engineered for heavy-duty outdoor and high-bay smart lighting installations. Distributed as a part of reliable system setups, this driver features a compact, extruded metal chassis designed with specialized encapsulation to offer superior thermal dissipation and complete environmental resilience.

• Maximum Output Capacity: 200 Watts continuous power distribution.
• Input Voltage Range: Universal 90V–305V AC (compatible with 120V, 220V, 230V, and 277V systems).
• Output Type: Single-channel Constant Current.
• Adjustable Output Current (AOC): Programmable from 700mA to 1050mA (Factory default is set to 700mA).
• Output Voltage Range: 95V–286V DC depending on the set current mapping.
• Full-Power Efficiency: Up to 93.5% peak efficiency for cooler and more cost-effective operation.
• Power Factor (PFC): High correction metric at ≥ 0.96.
• Integrated Dimming Functions: Supports isolated 0-10V, 1-5V, 10V PWM, and 3-Timer-Modes dim-to-off configurations.
• Ingress Protection Rating: Dual IP66 and IP67 rated (completely dust-tight and fully waterproof against water immersion up to 1 meter).
• Surge Protection Rating: Built-in heavy-duty defense with 6kV Differential Mode (DM) and 10kV Common Mode (CM) resistance.
• Hardware Protections: All-around safety tracking for Over-Voltage. (OVP), Short-Circuit (SCP), and Over-Temperature (OTP) scenarios.
• Hazardous Certification: TYPE HL certified, allowing safe usage in Class I, Division 2 hazardous industrial environments.

• Industrial High Bay Lighting: Powers heavy industrial fixtures inside warehouses, logistics hubs, factories, and indoor sports arenas.
• Roadway & Street Lighting: Supplies consistent power to municipal streetlights, highway lighting grids, and highway toll gate light panels.
• Area & High Mast Lighting: Ideal for large open-area commercial spaces, stadium perimeter lighting, airport tarmacs, and parking lot floodlights.
• Tunnel & Bridge Infrastructure: Safely operates within harsh, high-moisture, and vibration-prone environments like underpasses and marine bridges.



The Inventronics EUM-200S105DG Constant Current Programmable LED Driver is an industrial-grade, high-performance power supply unit engineered for heavy-duty outdoor and high-bay smart lighting installations. Distributed as a part of reliable system setups, this driver features a compact, extruded metal chassis designed with specialized encapsulation to offer superior thermal dissipation and complete environmental resilience.

• Maximum Output Capacity: 200 Watts continuous power distribution.
• Input Voltage Range: Universal 90V–305V AC (compatible with 120V, 220V, 230V, and 277V systems).
• Output Type: Single-channel Constant Current.
• Adjustable Output Current (AOC): Programmable from 700mA to 1050mA (Factory default is set to 700mA).
• Output Voltage Range: 95V–286V DC depending on the set current mapping.
• Full-Power Efficiency: Up to 93.5% peak efficiency for cooler and more cost-effective operation.
• Power Factor (PFC): High correction metric at ≥ 0.96.
• Integrated Dimming Functions: Supports isolated 0-10V, 1-5V, 10V PWM, and 3-Timer-Modes dim-to-off configurations.
• Ingress Protection Rating: Dual IP66 and IP67 rated (completely dust-tight and fully waterproof against water immersion up to 1 meter).
• Surge Protection Rating: Built-in heavy-duty defense with 6kV Differential Mode (DM) and 10kV Common Mode (CM) resistance.
• Hardware Protections: All-around safety tracking for Over-Voltage. (OVP), Short-Circuit (SCP), and Over-Temperature (OTP) scenarios.
• Hazardous Certification: TYPE HL certified, allowing safe usage in Class I, Division 2 hazardous industrial environments.

• Industrial High Bay Lighting: Powers heavy industrial fixtures inside warehouses, logistics hubs, factories, and indoor sports arenas.
• Roadway & Street Lighting: Supplies consistent power to municipal streetlights, highway lighting grids, and highway toll gate light panels.
• Area & High Mast Lighting: Ideal for large open-area commercial spaces, stadium perimeter lighting, airport tarmacs, and parking lot floodlights.
• Tunnel & Bridge Infrastructure: Safely operates within harsh, high-moisture, and vibration-prone environments like underpasses and marine bridges.
