The TEKLED Proz-h / Pegasus LED Motion Sensor Floodlight (20W) is a highly durable, high-efficiency outdoor security luminaire engineered to deliver crisp, automated bright-light performance across external residential and commercial zones.
Description

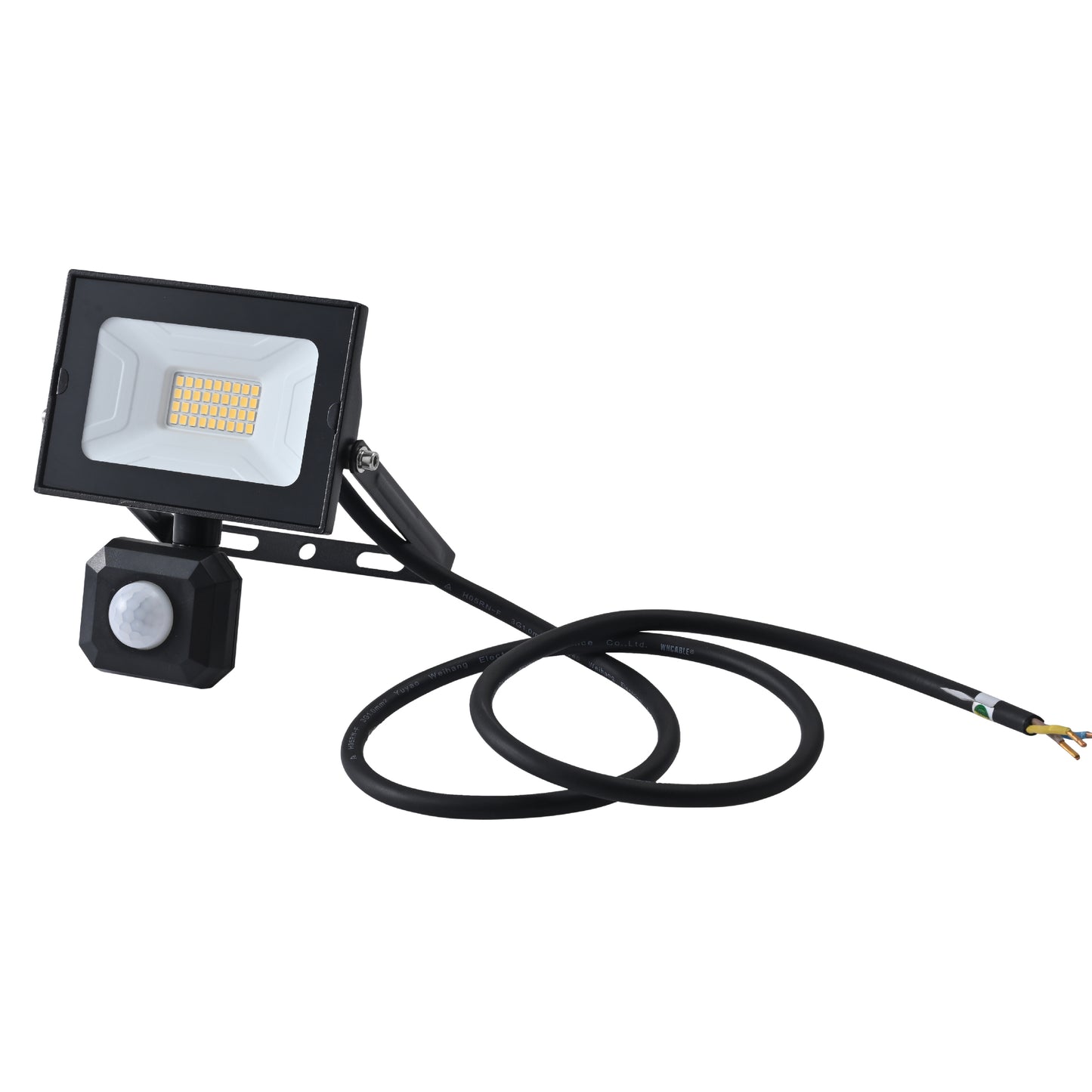

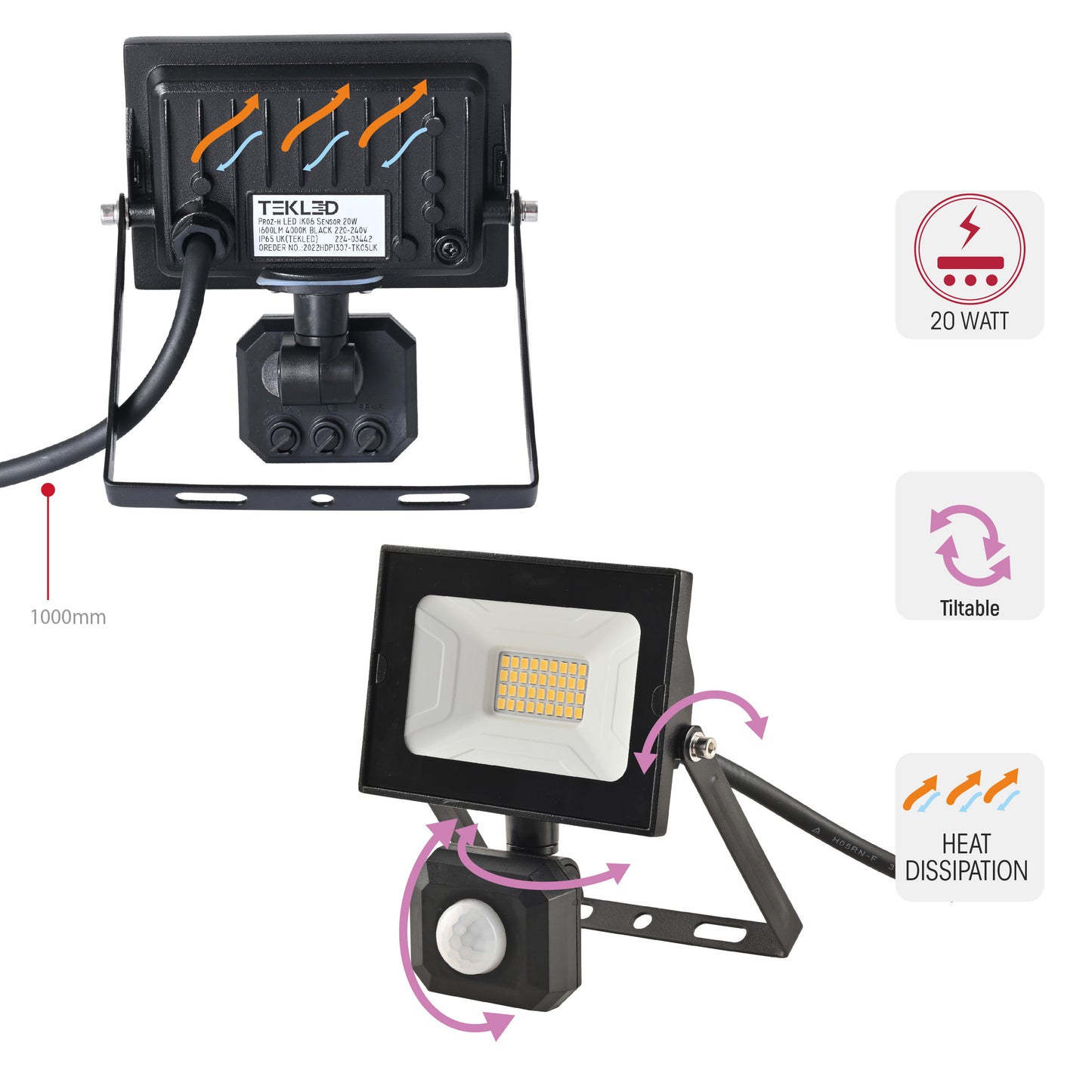

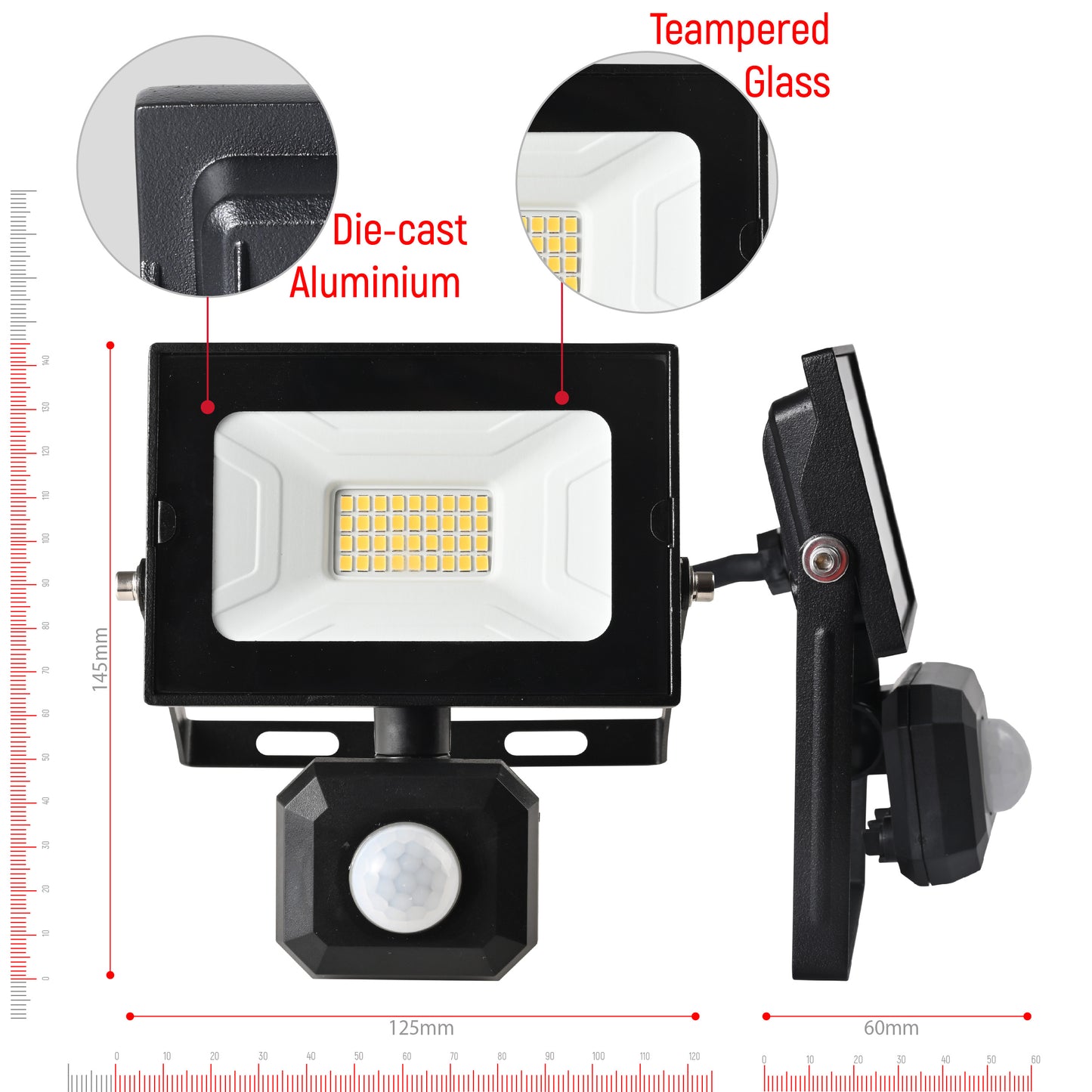

The fixture features a compact, heavy-duty black rectangular housing crafted from die-cast aluminum. It encloses a central array of SMD LED chips behind a robust glass cover. Centered immediately beneath the main spotlight frame is an integrated PIR (Passive Infrared) motion sensor, which automatically triggers illumination upon tracking thermal movement. It comes equipped with an adjustable rear U-bracket for flexible surface mounting and directional tilt optimization.
Technical Specifications
-
Power Wattage: 20W
-
Luminous Flux: 1600 Lumens
-
Luminous Efficacy: 80 lm/W
-

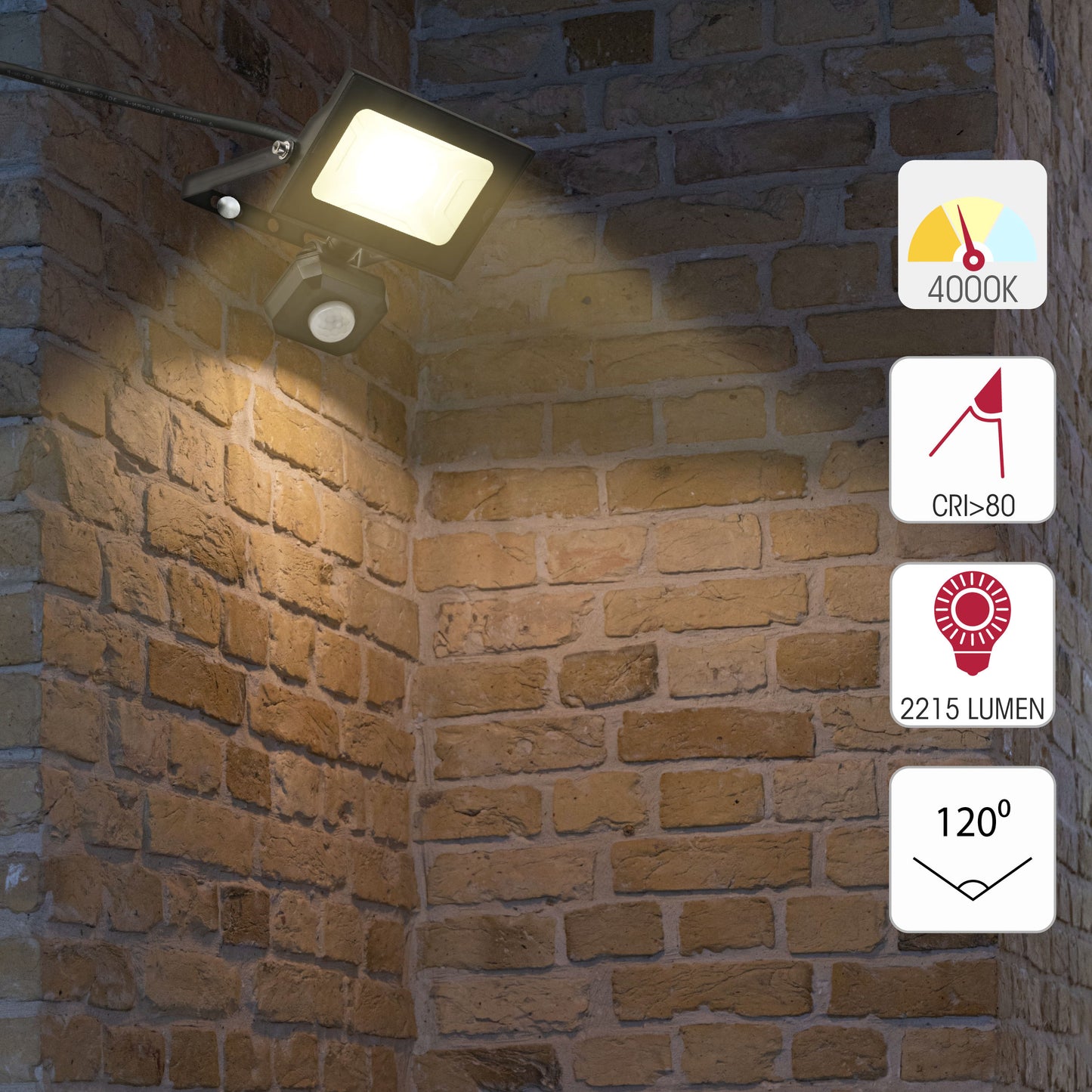

Color Temperature (CCT): 4000K Cool White / Neutral White
-
Operating Voltage: 220V–240V AC
-

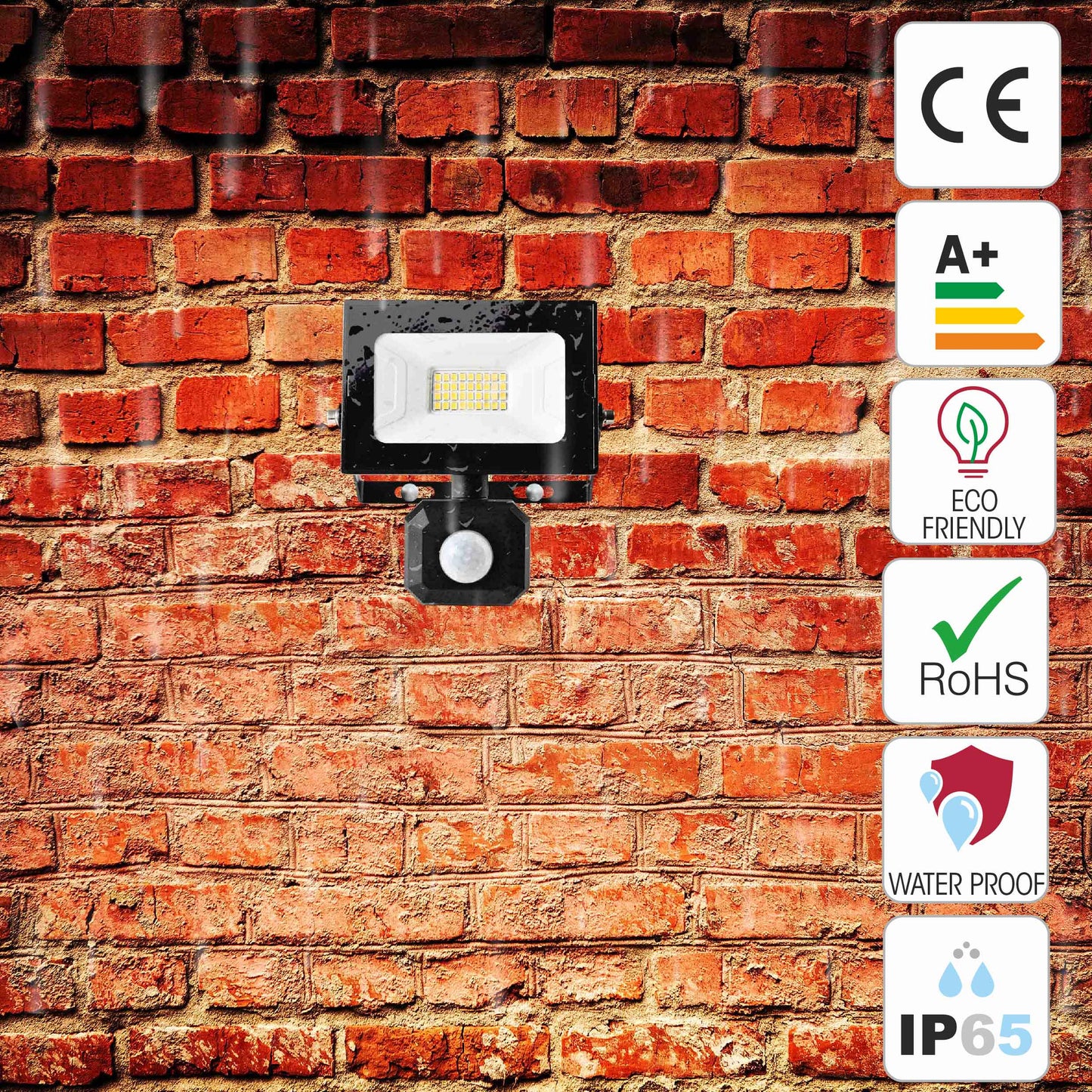

Ingress Protection: IP65 rated (Fully dustproof and waterproof against low-pressure water jets from any direction)
-
Impact Protection: IK06 rated (Shielded against mechanical shocks and impacts up to 1 joule)
-

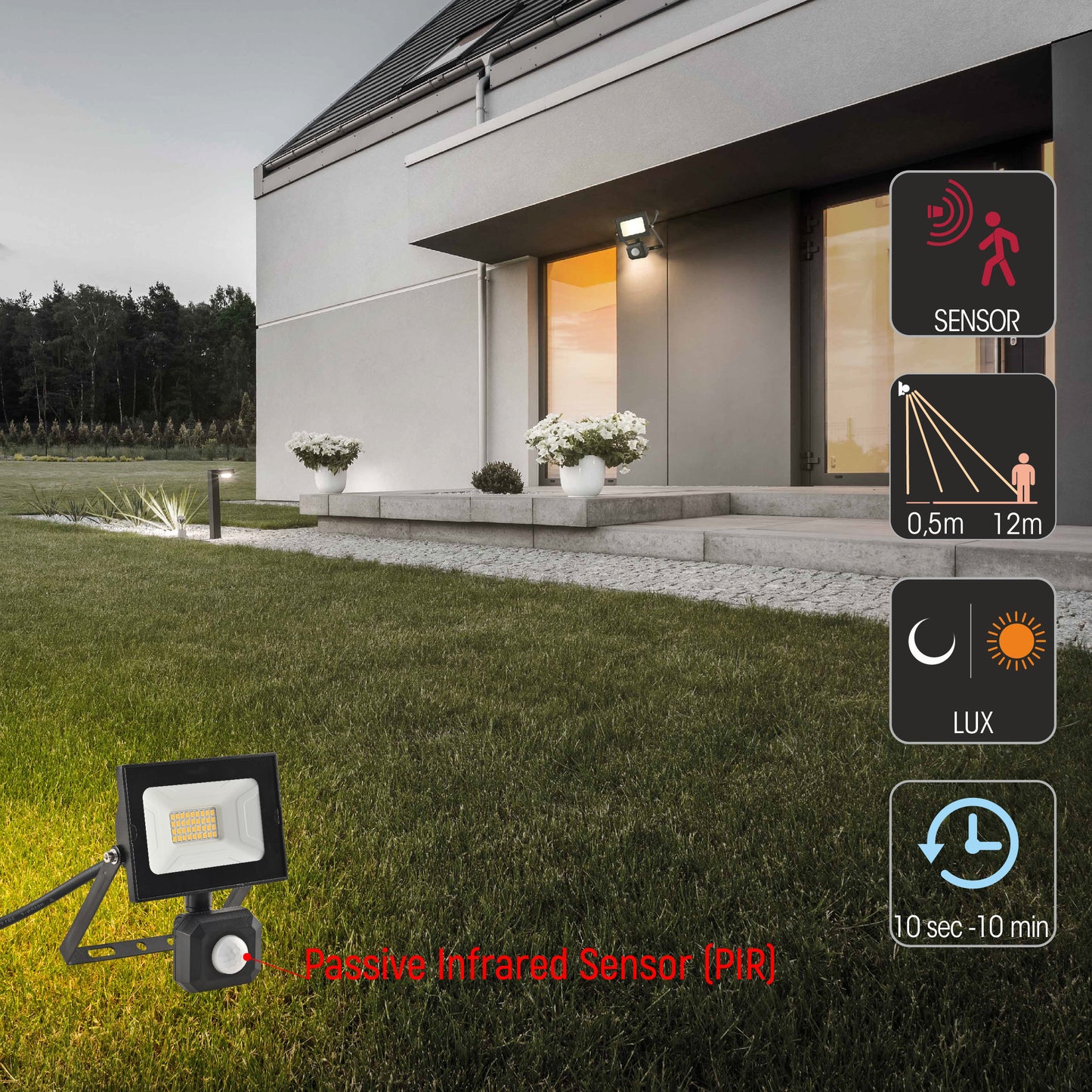

Sensor Type: PIR Motion & Daylight Sensor (Supports customizable adjustment for sensing distance, daylight lux activation, and ON duration)
-
Finish Color: Black (BL)
- Certifications: CE, UKCA, and RoHS compliant
Applications
The high luminous output combined with robust impact shielding makes this security floodlight excellent for challenging outdoor applications:
-
Driveways & Perimeter Walls: Activates automatically to provide safe vehicular parking guidance and ward off unwanted trespassers at night.
-

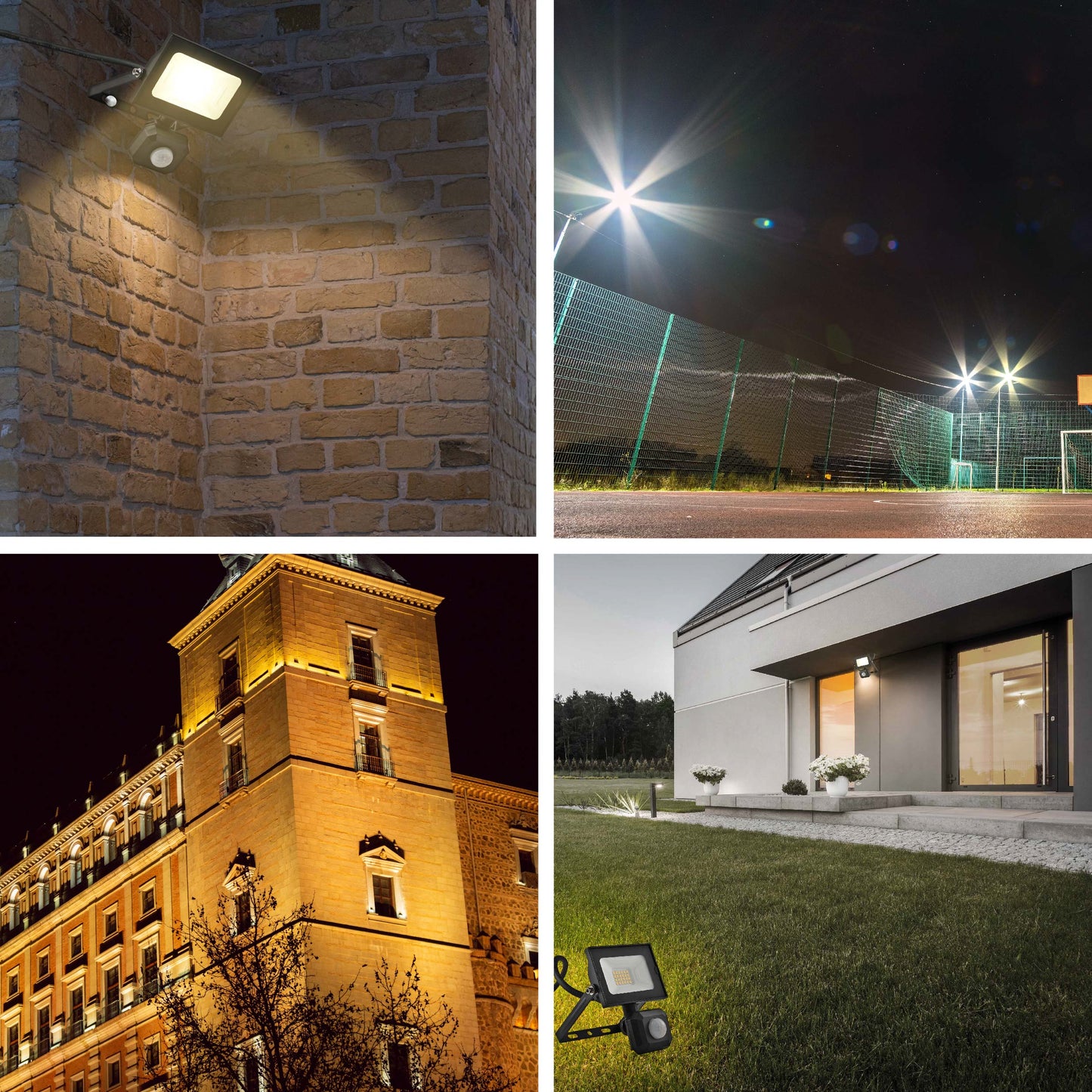

Building Facades & Entrance Gates: Supplies wide-angle, bright area illumination across main gates, reception entryways, and warehouses.
- Public Underpasses & Garages: Adds persistent protection and clear tracking lines across car parks, public alleyways, construction sites, and multi-car outdoor garage decks.
