Floodlight LED ZY328 150W 5700K (TEKSAN)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The TEKSAN RKU LED SMD ZY328 150W Floodlight (5700K) is a commercial-grade outdoor security luminaire. Engineered for high structural durability, it is designed to replace energy-intensive halogen and metal-halide arrays, providing a balanced and efficient throw of bright daylight over expansive open spaces.
Product Description

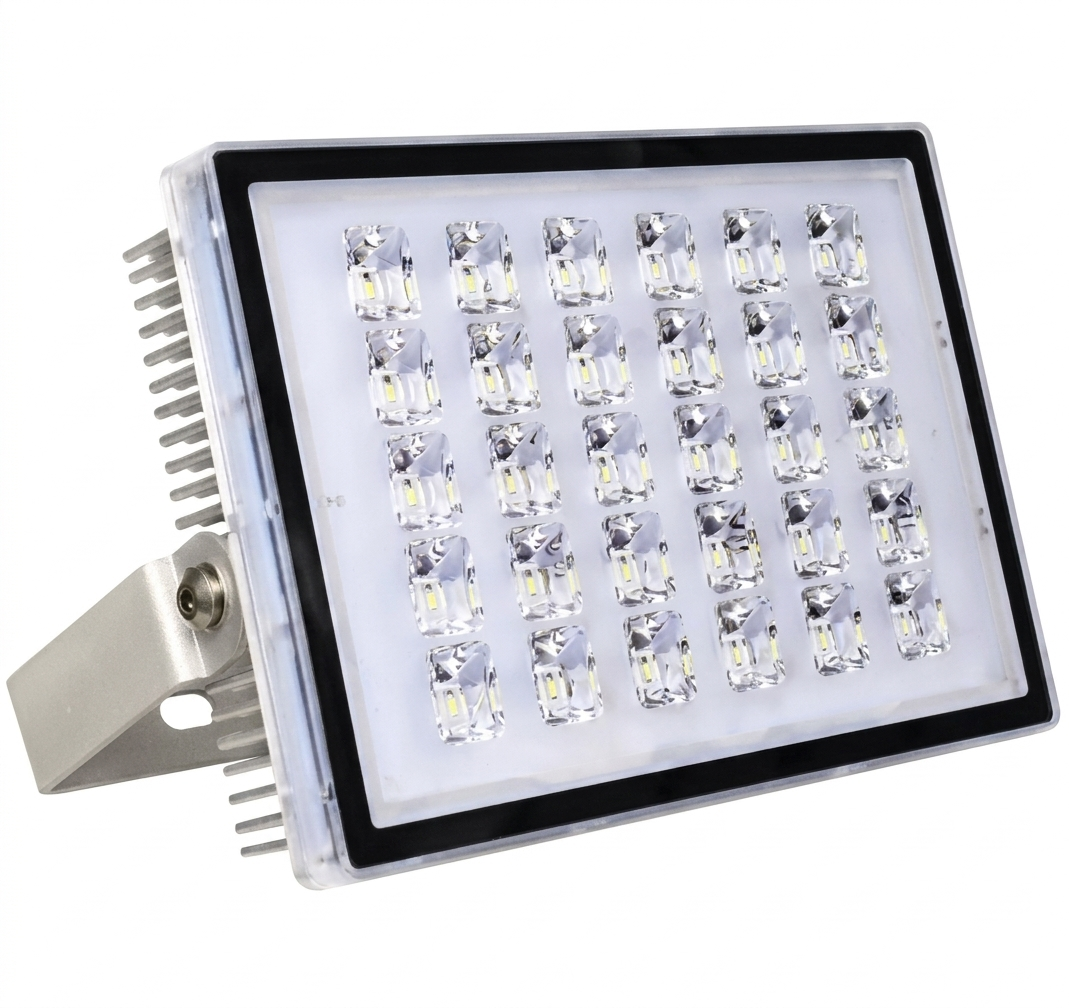

This heavy-duty floodlight features a single-block, high-density die-cast aluminum chassis with a black protective perimeter border finish. The rear profile is engineered with aerated aluminum heat-sink cooling fins that prevent internal heat buildup, safeguarding the constant-current LED driver and maximizing component longevity.
The light face houses a multi-array Surface Mounted Device (SMD) LED platform, with each individual diode shielded by its own optical magnification lens. These micro-lenses shape the beam into a focused, highly efficient wide flood angle that prevents dark zones. Outfitted with a heavy-duty, pre-drilled steel trunnion mounting bracket, the entire unit can be tilted and adjusted 180 degrees to direct the beam exactly where needed.
Technical Specifications
This ZY328 series fixture conforms to standard international exterior commercial metrics:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand | TEKSAN |
| Model / Line Identifier | RKU LED SMD ZY328 Series |
| Power Consumption | 150 Watts |
| Luminous Output | ~18,000 to 19,500 Lumens (High luminous efficacy ratio) |
| Color Temperature (CCT) | 5700K (Daylight / Natural Cold White Spectrum) |
| Color Rendering Index (CRI) |
≥ 70 to ≥ 80 Ra |
| Operational Input Voltage | 100V – 265V AC, 50/60Hz (Wide-range voltage protection) |
| Power Factor | ≥ 0.9 (Optimized structural energy distribution) |
| Weather Protection Class | IP65 / IP66 Waterproof & Dustproof certified |
| Chassis Construction | High-Grade Die-Cast Aluminum with a clear tempered glass diffuser |
| Standards & Certifications | CE, RoHS, Outdoor Industrial Safety Certified |
System Applications
The high-power 150W output combined with a crisp 5700K natural white color profile makes this luminaire effective for high-elevation or long-throw perimeter layouts:
- Commercial & Industrial Warehouses: Mounted onto exterior walls or tracking beams to illuminate loading bays, container shipping bays, and heavy vehicle parking locks.
- Perimeter Security Barriers: Deployed along restricted boundary fences, entrance gates, and institutional borders to ensure crisp visibility for high-definition CCTV camera networks.
- Outdoor Sports Facilities: Provides uniform, clear illumination for open basketball courts, tennis complexes, localized soccer pitches, and recreational parks.
- Architectural & Facade Lighting: Positions high-lumen accent highlighting up building structural pillars, monument facades, billboards, and public plazas.
- Residential & Civil Backyards: Serves as a heavy-duty security light for large open residential compounds, farm processing fields, and long access pathways.
Specifications
The TEKSAN RKU LED SMD ZY328 150W Floodlight (5700K) is a commercial-grade outdoor security luminaire. Engineered for high structural durability, it is designed to replace energy-intensive halogen and metal-halide arrays, providing a balanced and efficient throw of bright daylight over expansive open spaces.
Product Description
This heavy-duty floodlight features a single-block, high-density die-cast aluminum chassis with a black protective perimeter border finish. The rear profile is engineered with aerated aluminum heat-sink cooling fins that prevent internal heat buildup, safeguarding the constant-current LED driver and maximizing component longevity.
The light face houses a multi-array Surface Mounted Device (SMD) LED platform, with each individual diode shielded by its own optical magnification lens. These micro-lenses shape the beam into a focused, highly efficient wide flood angle that prevents dark zones. Outfitted with a heavy-duty, pre-drilled steel trunnion mounting bracket, the entire unit can be tilted and adjusted 180 degrees to direct the beam exactly where needed.
Technical Specifications
This ZY328 series fixture conforms to standard international exterior commercial metrics:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand | TEKSAN |
| Model / Line Identifier | RKU LED SMD ZY328 Series |
| Power Consumption | 150 Watts |
| Luminous Output | ~18,000 to 19,500 Lumens (High luminous efficacy ratio) |
| Color Temperature (CCT) | 5700K (Daylight / Natural Cold White Spectrum) |
| Color Rendering Index (CRI) |
≥ 70 to ≥ 80 Ra |
| Operational Input Voltage | 100V – 265V AC, 50/60Hz (Wide-range voltage protection) |
| Power Factor | ≥ 0.9 (Optimized structural energy distribution) |
| Weather Protection Class | IP65 / IP66 Waterproof & Dustproof certified |
| Chassis Construction | High-Grade Die-Cast Aluminum with a clear tempered glass diffuser |
| Standards & Certifications | CE, RoHS, Outdoor Industrial Safety Certified |
System Applications
The high-power 150W output combined with a crisp 5700K natural white color profile makes this luminaire effective for high-elevation or long-throw perimeter layouts:
- Commercial & Industrial Warehouses: Mounted onto exterior walls or tracking beams to illuminate loading bays, container shipping bays, and heavy vehicle parking locks.
- Perimeter Security Barriers: Deployed along restricted boundary fences, entrance gates, and institutional borders to ensure crisp visibility for high-definition CCTV camera networks.
- Outdoor Sports Facilities: Provides uniform, clear illumination for open basketball courts, tennis complexes, localized soccer pitches, and recreational parks.
- Architectural & Facade Lighting: Positions high-lumen accent highlighting up building structural pillars, monument facades, billboards, and public plazas.
- Residential & Civil Backyards: Serves as a heavy-duty security light for large open residential compounds, farm processing fields, and long access pathways.
