HES KABLO CABLE 1X4 RM (UCT)
HES KABLO CABLE 1X4 RM (UCT)
Regular price
GH₵950.00
Sale price
GH₵950.00
Unit price
per
Light bulb sold separately
SKU: SKU: 401-56462 EAN:| EAN:
Low stock: 1 available
Couldn't load pickup availability
HES KABLO CABLE 1X4 RM (UCT)
Black
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

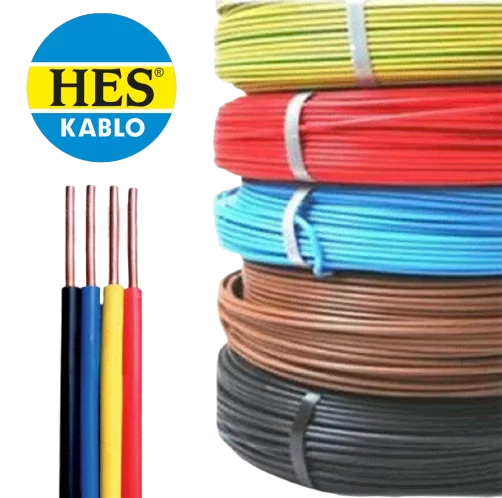

The HES KABLO 1×4mm² RM Single-Core Building Cable is a Turkey-made, premium-grade electrical conductor. This heavy-duty conduit wire offers an upgraded cross-sectional area over standard 2.5mm² options, ensuring lower voltage drops and increased current capabilities for demanding appliances.
Product Description
This high-performance building wire features a single core with a 4.0 mm² nominal cross-sectional area. The abbreviation RM (Round Multi-wire) indicates that the internal core is constructed from 7 concentric, bundled bare copper strands (Class 2 rigid stranded configuration) rather than a singular, stiff solid conductor. This multi-strand layout allows the wire to remain physically pliable, making it considerably easier to pull through long run channels, tight angles, and wall conduits without kinking or fracturing. The core is protected by an exterior layer of tough, non-sheathed Polyvinyl Chloride (PVC) insulation designed for effortless stripping and termination.
Technical Specifications
This 4mm² cable satisfies strict European and international metrics:
| Property / Feature | Technical Parameter Value / Standard |
|---|---|
| Brand / Origin | HES Kablo (Hacılar Elektrik Sanayi / Turkey) |
| Conductor Configuration | Single-core, multi-wire stranded circular layout (RM / Class 2) |
| Harmonized Cable Code | H07V-R (60227 IEC 01 / BS 6491X) |
| Conductor Core Material | 99.97% Pure Annealed Electrolytic Bare Copper |
| Nominal Cross-Section | 4.0 mm² |
| Insulation Compound | Fire-Retardant Polyvinyl Chloride (FR-PVC Type TI 1) |
| Voltage Rating | 450V / 750V AC |
| Max Core Resistance | ≤ 4.61Ω/km at 20°C (Highly efficient over long runs) |
| Continuous Temp Limit | -15°C to +70°C standard exposure |
| Max Short-Circuit Temp | +160°C (For a peak structural safety window of 5 seconds) |
| Available Jacket Colors | Black, Blue, Red, Yellow/Green (Earth), Brown |
| Compliance Certifications | EN 50525-2-31, IEC 60227, TSE, CE, RoHS Approved |
System Applications
The 4.0mm² profile manages heavier operational current demands safely, making it a crucial component in both residential sub-circuits and commercial installations:
- Heavy-Duty Appliance Radial Feeds: Deployed as the primary power supply wire for appliances with higher current draws, including large split air conditioners, storage water heaters, commercial microwaves, and water pumps.
- Kitchen Ring and Radial Circuits: Serves as a heavy-duty sub-main backbone running from the distribution box to power dense kitchen clusters containing cookers, ovens, and kettles.
- Internal Distribution Panel Bridging: Used as low-resistance internal bridge wiring inside residential consumer units and sub-panels to interlink high-amperage breakers safely.
- Main Safety Grounding Ties: The Green/Yellow jacket variant is commonly used as a structural earthing tie line to bond metal appliance chassis back to primary grounding buses.
- Conduit and Cable Trunking Layouts: Pulled smoothly through embedded or surface-mounted PVC and metal conduits, structural building channels, and closed cable tray systems.
Specifications
The HES KABLO 1×4mm² RM Single-Core Building Cable is a Turkey-made, premium-grade electrical conductor. This heavy-duty conduit wire offers an upgraded cross-sectional area over standard 2.5mm² options, ensuring lower voltage drops and increased current capabilities for demanding appliances.
Product Description
This high-performance building wire features a single core with a 4.0 mm² nominal cross-sectional area. The abbreviation RM (Round Multi-wire) indicates that the internal core is constructed from 7 concentric, bundled bare copper strands (Class 2 rigid stranded configuration) rather than a singular, stiff solid conductor. This multi-strand layout allows the wire to remain physically pliable, making it considerably easier to pull through long run channels, tight angles, and wall conduits without kinking or fracturing. The core is protected by an exterior layer of tough, non-sheathed Polyvinyl Chloride (PVC) insulation designed for effortless stripping and termination.
Technical Specifications
This 4mm² cable satisfies strict European and international metrics:
| Property / Feature | Technical Parameter Value / Standard |
|---|---|
| Brand / Origin | HES Kablo (Hacılar Elektrik Sanayi / Turkey) |
| Conductor Configuration | Single-core, multi-wire stranded circular layout (RM / Class 2) |
| Harmonized Cable Code | H07V-R (60227 IEC 01 / BS 6491X) |
| Conductor Core Material | 99.97% Pure Annealed Electrolytic Bare Copper |
| Nominal Cross-Section | 4.0 mm² |
| Insulation Compound | Fire-Retardant Polyvinyl Chloride (FR-PVC Type TI 1) |
| Voltage Rating | 450V / 750V AC |
| Max Core Resistance | ≤ 4.61Ω/km at 20°C (Highly efficient over long runs) |
| Continuous Temp Limit | -15°C to +70°C standard exposure |
| Max Short-Circuit Temp | +160°C (For a peak structural safety window of 5 seconds) |
| Available Jacket Colors | Black, Blue, Red, Yellow/Green (Earth), Brown |
| Compliance Certifications | EN 50525-2-31, IEC 60227, TSE, CE, RoHS Approved |
System Applications
The 4.0mm² profile manages heavier operational current demands safely, making it a crucial component in both residential sub-circuits and commercial installations:
- Heavy-Duty Appliance Radial Feeds: Deployed as the primary power supply wire for appliances with higher current draws, including large split air conditioners, storage water heaters, commercial microwaves, and water pumps.
- Kitchen Ring and Radial Circuits: Serves as a heavy-duty sub-main backbone running from the distribution box to power dense kitchen clusters containing cookers, ovens, and kettles.
- Internal Distribution Panel Bridging: Used as low-resistance internal bridge wiring inside residential consumer units and sub-panels to interlink high-amperage breakers safely.
- Main Safety Grounding Ties: The Green/Yellow jacket variant is commonly used as a structural earthing tie line to bond metal appliance chassis back to primary grounding buses.
- Conduit and Cable Trunking Layouts: Pulled smoothly through embedded or surface-mounted PVC and metal conduits, structural building channels, and closed cable tray systems.
