KGP Constant Voltage LED Driver 24V 250W 10A for LED Strips-Modules

TEKLED

OSRAM Constant Voltage LED Driver 24V 250W 10A for LED Strips-Modules

Sale priceGH₵758.00
SKU: 890-15955 | BARCODE: 5056547505039
More than 30 in stock
Quantity:

OSRAM Constant Voltage LED Driver 24V 250W 10A for LED Strips-Modules

Introducing the OSRAM Constant Voltage LED Driver — your robust solution for powering LED Modules and Strip lights. With its sleek design and advanced features, it ensures the reliable performance of your LED setups.

Key Features & Benefits:

  • Power-packed Performance: With an impressive 250W capacity and a broad output current range up to 10,420 mA, this driver stands out, ensuring your LEDs shine brightly and consistently.
  • Steady Voltage Output: Delivering a uniform 24V DC, the driver ensures your LEDs maintain a consistent luminosity and hue.
  • Adaptable Dimming Options: Though the driver is inherently non-dimmable, pair it with 24V dimmer controllers to achieve your desired brightness levels, offering flexibility in lighting ambiance.

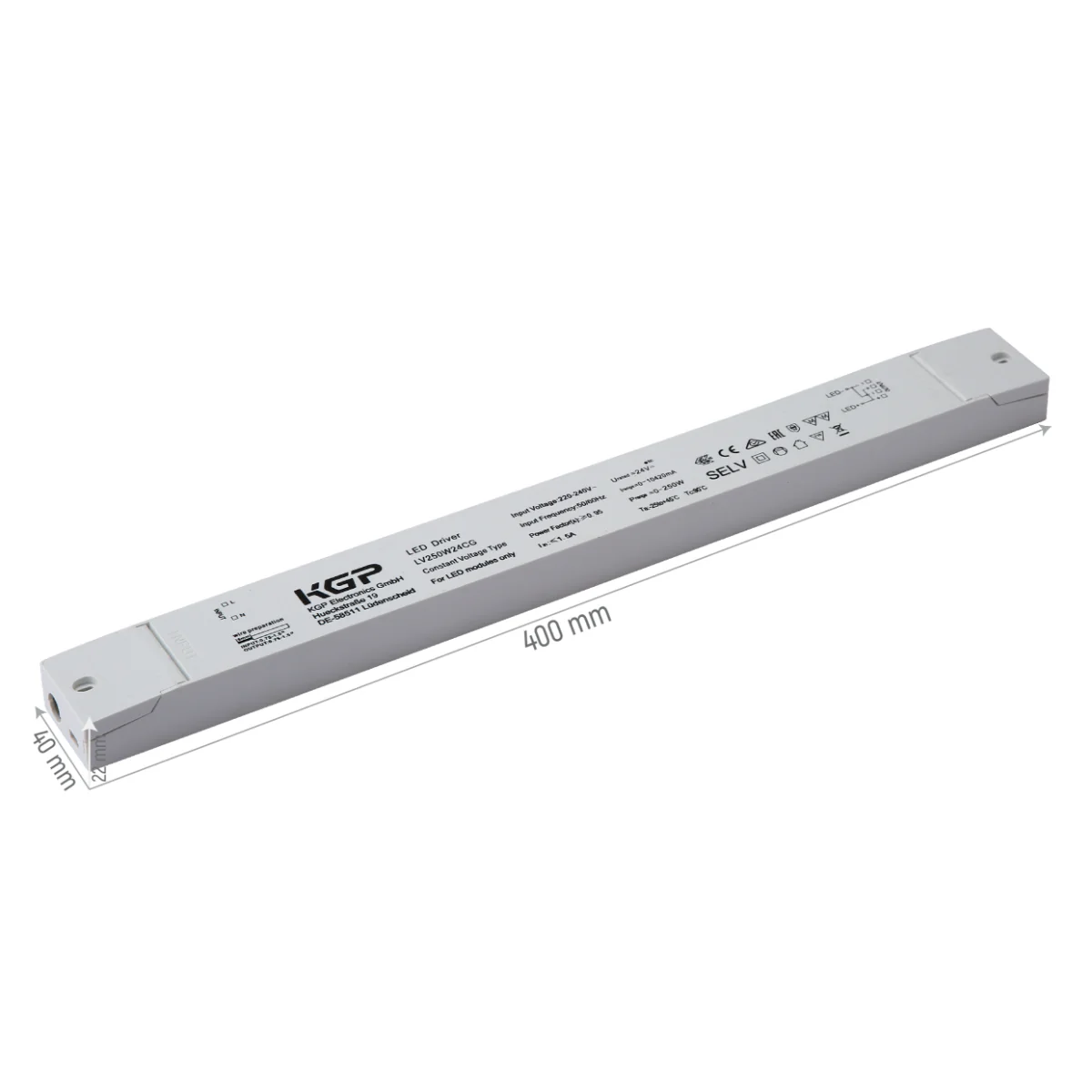

  • Sleek and Unobtrusive Design: Measuring just 4004022 mm, its white, compact plastic casing can be discreetly integrated into most settings, preserving aesthetics.
  • Exceptional Durability: Designed for longevity, this driver boasts a lifespan of 50,000 hours, so you can install with confidence, knowing it's built to last.
  • Wide Temperature Tolerance: With an operational temperature range from -25°C to +45°C, it's resilient enough to perform in diverse climatic conditions, ensuring reliability.
  • Certified Excellence: Meeting stringent quality benchmarks, it's endorsed with certifications from UKCA, CE, ENEC, EAC, and SELV. Rest assured, you're investing in a product that meets globally recognized standards.

Perfect for both residential and commercial applications, the OSRAM Constant Voltage LED Driver guarantees a harmonious blend of efficiency, longevity, and compatibility. Whether you're setting up decorative strips or high-power LED modules, trust this driver to deliver the power you need.

Technical Specifications

Product Code 890-15955 LV250W24CG
Power 250W
Type Constant Voltage 24V DC
Voltage 85/265V AC 50/60Hz
Output Voltage 24V DC
Output Current 0-10420mA
Power Range 0-250W
Led Type for LED Modules and LED Strip lights
Output 2 output
Protection Class Class II
Dimmability Non-Dimmable but can be used with 24V dimmer controllers for dimming the LEDs
Flickering Flicker-free
IP Class IP20
Product Dimensions (LxWxH) (DxH) 400x40x22mm
Made Of Materials Plastic Box
Product Colour White
Input Cable Size 0.75 - 1.5 mm
Output Cable Size 0.75 - 1.5 mm (1.5 mm for if Pout > 150W)
Power Factor pf>0.95
Operating Temperature (C) -25/+45C
Temperature (tc) 90C
Warranty 3 year
Life Span 50000h
Box Dimension (LxWxH) xxmm
Box Content 1 Piece of driver
Certifications UKCA, CE, ENEC, EAC, SELV
