LED CHIP (182-03384)

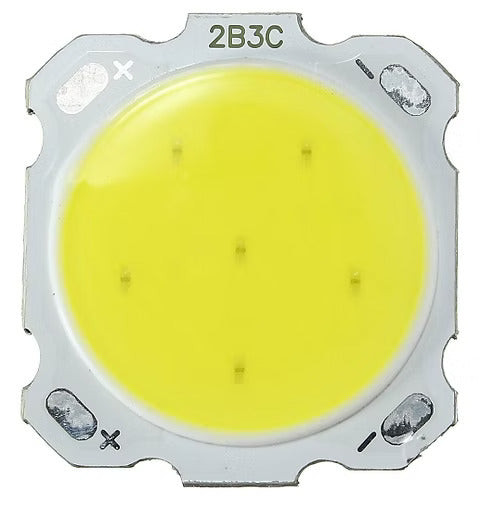

The TEKLED 3W High-Power COB LED Chip (2B3C Architecture) is a highly efficient, compact localized light source matrix designed for small-scale luminaires, directional spotlights, and downlights. Featuring a concentrated circular Chip-on-Board (COB) multi-diode layout marked with standard 2B3C configuration indicators (2 parallel branches of 3 diodes in series), this micro-module provides crisp, stable brightness on a highly thermal-conductive miniature backing plate.

• Power Output: 3 Watts maximum continuous load rating.
• Circuit Matrix Layout: 2B3C structure (Internal 2 Parallel x 3 Series diode mapping).
• Operating Forward Voltage: 9V–11V DC low-voltage baseline requirement.
• Forward Current Threshold: 280mA to 300mA stable continuous current target.
• Substrate Plate Build: Stamped square aluminum core PCB equipped with clear corner mounting screw notches.
• Electrical Connection Pads: Dedicated corner solder contact pads clearly marked with plus (+) and minus (-) polarity anchors.
• Color Temperature Options (CCT): Available in Warm White (3000K) or Cool White (6000K) spectrum models.

• Recessed Mini Downlights: Acts as the primary light engine for 3W interior ceiling downlights installed in residential cabinet soffits, wardrobes, and modern display alcoves.
• Directional Track Spotlights: Powers tight-angle display spotlights used in retail galleries and jewelry display cases where high-intensity localized light is required without heat buildup.
• Landscape Garden Spikes: Fits perfectly as a replacement light board inside 3W outdoor garden spotlights, architectural accent uplights, and pathway step-lights.
• Portable Flashlights & Lanterns: Favored for custom electronics maintenance and manufacturing to repair high-drain portable lamps, emergency torches, and desk reading lamps.
