LED CHIP 50W 48V GLOW
LED CHIP 50W 48V GLOW
Regular price
GH₵266.00
Sale price
GH₵266.00
Unit price
per
Light bulb sold separately
SKU: SKU: 890-15025902 EAN:| EAN:
In stock. 20 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
LED CHIP 50W 48V GLOW
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

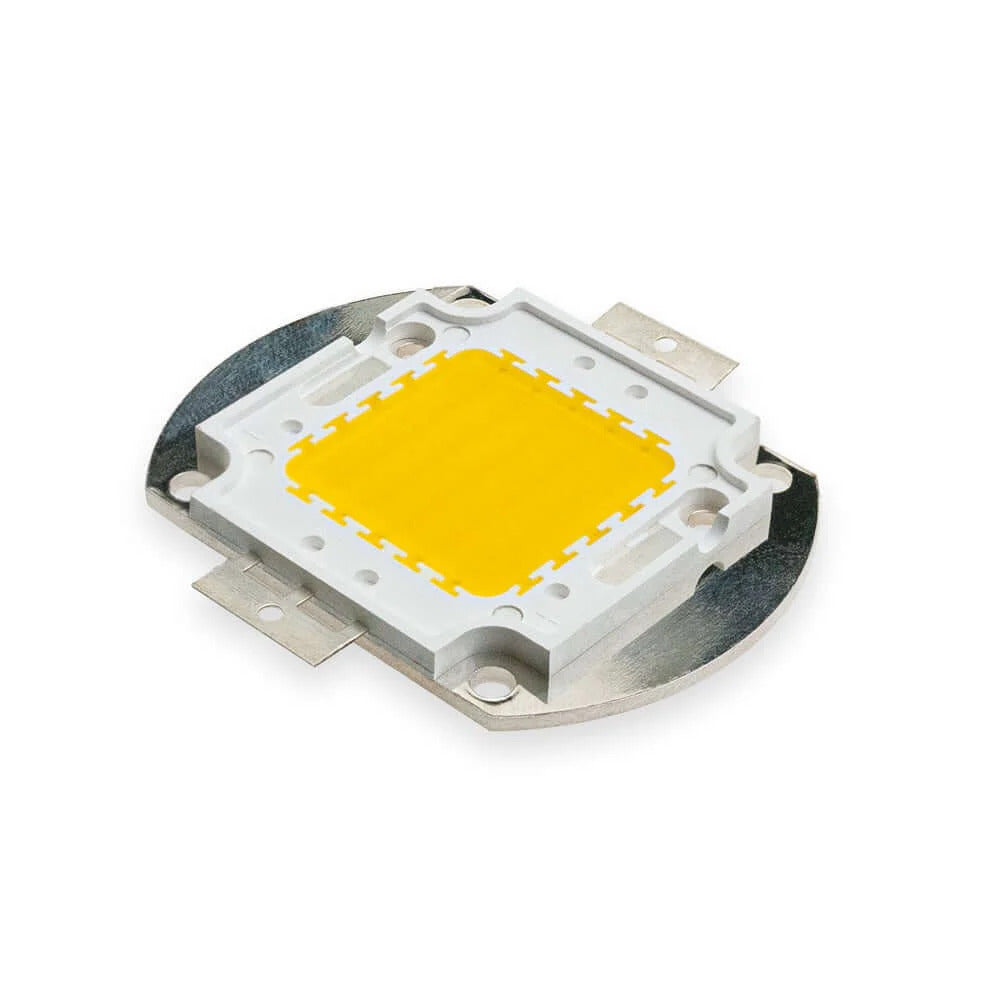

The TEKLED 50W 48V GLOW High Power COB LED Chip is an industrial-grade, ultra-bright light source matrix designed for heavy-duty floodlights, stadium lamps, and high-bay fixtures. Featuring a concentrated COB (Chip-on-Board) multi-diode array, this high-density module delivers exceptional luminous efficiency and thermal conductivity, engineered to directly replace worn or aging light engines in industrial outdoor fixtures.
Technical Specifications
The standard structural and electrical configurations for this high-power COB chip include:
- Power Output: 50 Watts continuous power rating.
- Operating Forward Voltage : 42V–48V DC low-voltage system architecture.
- Chip Technology: Integrated multi-diode Chip-on-Board (COB) configuration layered onto a copper/aluminum thermal substrate.
- Glow Color / Spectrum: Warm White (3000K) or Cool White (6000K) depending on the specific model variation.
- Maximum Current Threshold: Approximately 1050mA to 1200mA continuous current ceiling.
- Chassis Engineering: Ultra-conductive thick aluminum base plate featuring pre-drilled bolt slots and dual-sided solder terminal pads.
- Luminous Flux Output: Delivers an intense 4,500 to 5,000 Lumens of high-density brightness.
- Color Rendering Index (CRI): ≥ 70–80 Ra, optimized for high-intensity commercial distance throwing.
Applications & Use Cases
Thanks to its massive lumen density and low-voltage stability, this raw COB module is widely utilized across high-power lighting infrastructures:
- LED Floodlight Maintenance: Directly services as a replacement light engine for 50W outdoor security floodlights guarding building perimeters, gardens, and loading docks.
- Industrial High-Bay Lights: Powers heavy factory and warehouse high-bay fixtures requiring intense downward light throw from high ceilings.
- Street & Area Lighting: Acts as the core light source for public municipal streetlights, highway banners, and open commercial parking lot lamps.
- DIY Custom Projectors: Highly favored by engineering custom setups to build specialized stadium spotlights, photography studio key-lights, or heavy-duty architectural up-lighting blocks.
Critical Installation Note
Because this high-power 50W chip generates massive localized thermal loads within seconds, it must never be powered without a proper heat-sink. It is mandatory to apply a uniform layer of thermal silicone grease paste across the entire aluminum backing before firmly bolting it onto a heavy-duty aluminum or copper cooling block.
Specifications
The TEKLED 50W 48V GLOW High Power COB LED Chip is an industrial-grade, ultra-bright light source matrix designed for heavy-duty floodlights, stadium lamps, and high-bay fixtures. Featuring a concentrated COB (Chip-on-Board) multi-diode array, this high-density module delivers exceptional luminous efficiency and thermal conductivity, engineered to directly replace worn or aging light engines in industrial outdoor fixtures.
Technical Specifications
The standard structural and electrical configurations for this high-power COB chip include:
- Power Output: 50 Watts continuous power rating.
- Operating Forward Voltage : 42V–48V DC low-voltage system architecture.
- Chip Technology: Integrated multi-diode Chip-on-Board (COB) configuration layered onto a copper/aluminum thermal substrate.
- Glow Color / Spectrum: Warm White (3000K) or Cool White (6000K) depending on the specific model variation.
- Maximum Current Threshold: Approximately 1050mA to 1200mA continuous current ceiling.
- Chassis Engineering: Ultra-conductive thick aluminum base plate featuring pre-drilled bolt slots and dual-sided solder terminal pads.
- Luminous Flux Output: Delivers an intense 4,500 to 5,000 Lumens of high-density brightness.
- Color Rendering Index (CRI): ≥ 70–80 Ra, optimized for high-intensity commercial distance throwing.
Applications & Use Cases
Thanks to its massive lumen density and low-voltage stability, this raw COB module is widely utilized across high-power lighting infrastructures:
- LED Floodlight Maintenance: Directly services as a replacement light engine for 50W outdoor security floodlights guarding building perimeters, gardens, and loading docks.
- Industrial High-Bay Lights: Powers heavy factory and warehouse high-bay fixtures requiring intense downward light throw from high ceilings.
- Street & Area Lighting: Acts as the core light source for public municipal streetlights, highway banners, and open commercial parking lot lamps.
- DIY Custom Projectors: Highly favored by engineering custom setups to build specialized stadium spotlights, photography studio key-lights, or heavy-duty architectural up-lighting blocks.
Critical Installation Note
Because this high-power 50W chip generates massive localized thermal loads within seconds, it must never be powered without a proper heat-sink. It is mandatory to apply a uniform layer of thermal silicone grease paste across the entire aluminum backing before firmly bolting it onto a heavy-duty aluminum or copper cooling block.
