LED DRIVER J008 42W 1100MA (TEKLED)
LED DRIVER J008 42W 1100MA (TEKLED)
Regular price
GH₵69.00
Sale price
GH₵69.00
Unit price
per
Light bulb sold separately
SKU: SKU: 890-159470 EAN:| EAN:
In stock. 72 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
LED DRIVER J008 42W 1100MA (TEKLED)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

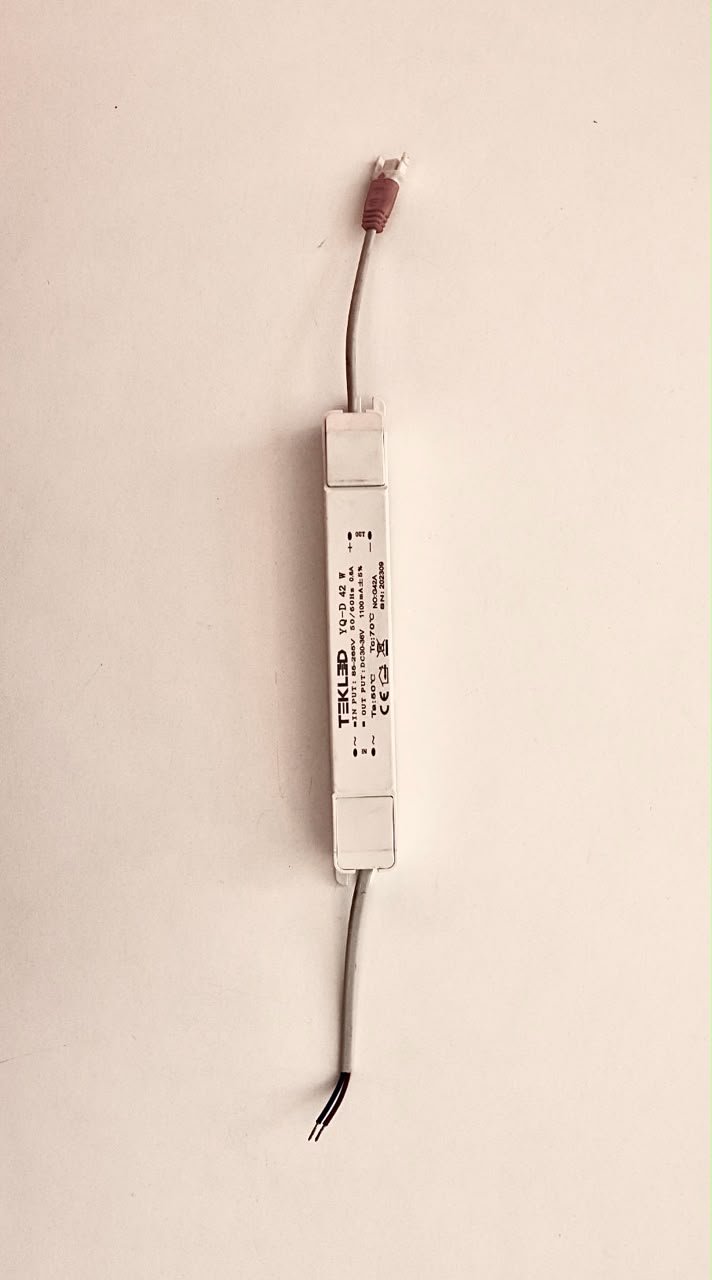

The TEKLED J008 42W LED Driver (Model: YQ-D 42 W) is a high-efficiency, slimline constant current power supply module designed for modern architectural lighting applications. Featuring an elongated, low-profile white polymer chassis, it easily slides into tight ceiling cavities and linear light channels. It functions as an electronic current regulator, isolating sensitive LED chips from incoming voltage ripples and grid-side transients.
Detailed Technical Specifications
As printed on the product's chassis label:
- Model Number: YQ-D 42 W
- Max Output Power: 42 Watts (Continuous load)
- Driving Profile: Constant Current
- Input Parameters: AC 85-265V, 50/60Hz, 0.68A (Wide-range universal voltage support)
- Output Parameters: (DC 25-42V, 1100mA ±5%)
-
Thermal Boundaries:
- Max Operating Ambient Temperature: \(50 ◦C)
- Maximum Permissible Case Temperature: (70 ◦C)
- Safety Classifications: Class II Electrical Device (Double Insulated), CE Certified
Key Features & Safety Infrastructure
- High-Current Stability: Delivers a continuous, locked output of (1100mA) to guarantee maximum brightness uniformity, complete flicker-free operation, and protection against diode thermal runaway.
- Slim Linear Form Factor: The narrow body layout is specially tailored to fit cleanly behind track light rails, slim architectural coves, and drop-ceiling cutouts.
- Wide Voltage Range Adaptability: Works flawlessly across a wide line voltage spectrum (85V - 265V), mitigating the risks of voltage drops or local grid surges.
- Pre-wired Integration Leads: Features distinct, ready-to-wire terminal cables—stripped bare-wire ends for the AC input mains side, and a specialized polarized snap connector on the low-voltage DC output end for quick, foolproof setup.
Typical Applications
- LED Panel & Troffer Lighting: Ideal for powering rectangular (600 x 600mm) or linear recessed ceiling panel grids in commercial office spaces.
- Linear Architectural Coves: Perfectly sized to sit tucked inside high-end perimeter accent lighting troughs in luxury residential and hotel lobbies.
- Commercial Downlighting: Serves as the primary external power driver for multi-diode commercial LED downlights in showrooms and supermarkets.
Specifications
The TEKLED J008 42W LED Driver (Model: YQ-D 42 W) is a high-efficiency, slimline constant current power supply module designed for modern architectural lighting applications. Featuring an elongated, low-profile white polymer chassis, it easily slides into tight ceiling cavities and linear light channels. It functions as an electronic current regulator, isolating sensitive LED chips from incoming voltage ripples and grid-side transients.
Detailed Technical Specifications
As printed on the product's chassis label:
- Model Number: YQ-D 42 W
- Max Output Power: 42 Watts (Continuous load)
- Driving Profile: Constant Current
- Input Parameters: AC 85-265V, 50/60Hz, 0.68A (Wide-range universal voltage support)
- Output Parameters: (DC 25-42V, 1100mA ±5%)
-
Thermal Boundaries:
- Max Operating Ambient Temperature: \(50 ◦C)
- Maximum Permissible Case Temperature: (70 ◦C)
- Safety Classifications: Class II Electrical Device (Double Insulated), CE Certified
Key Features & Safety Infrastructure
- High-Current Stability: Delivers a continuous, locked output of (1100mA) to guarantee maximum brightness uniformity, complete flicker-free operation, and protection against diode thermal runaway.
- Slim Linear Form Factor: The narrow body layout is specially tailored to fit cleanly behind track light rails, slim architectural coves, and drop-ceiling cutouts.
- Wide Voltage Range Adaptability: Works flawlessly across a wide line voltage spectrum (85V - 265V), mitigating the risks of voltage drops or local grid surges.
- Pre-wired Integration Leads: Features distinct, ready-to-wire terminal cables—stripped bare-wire ends for the AC input mains side, and a specialized polarized snap connector on the low-voltage DC output end for quick, foolproof setup.
Typical Applications
- LED Panel & Troffer Lighting: Ideal for powering rectangular (600 x 600mm) or linear recessed ceiling panel grids in commercial office spaces.
- Linear Architectural Coves: Perfectly sized to sit tucked inside high-end perimeter accent lighting troughs in luxury residential and hotel lobbies.
- Commercial Downlighting: Serves as the primary external power driver for multi-diode commercial LED downlights in showrooms and supermarkets.
