Description

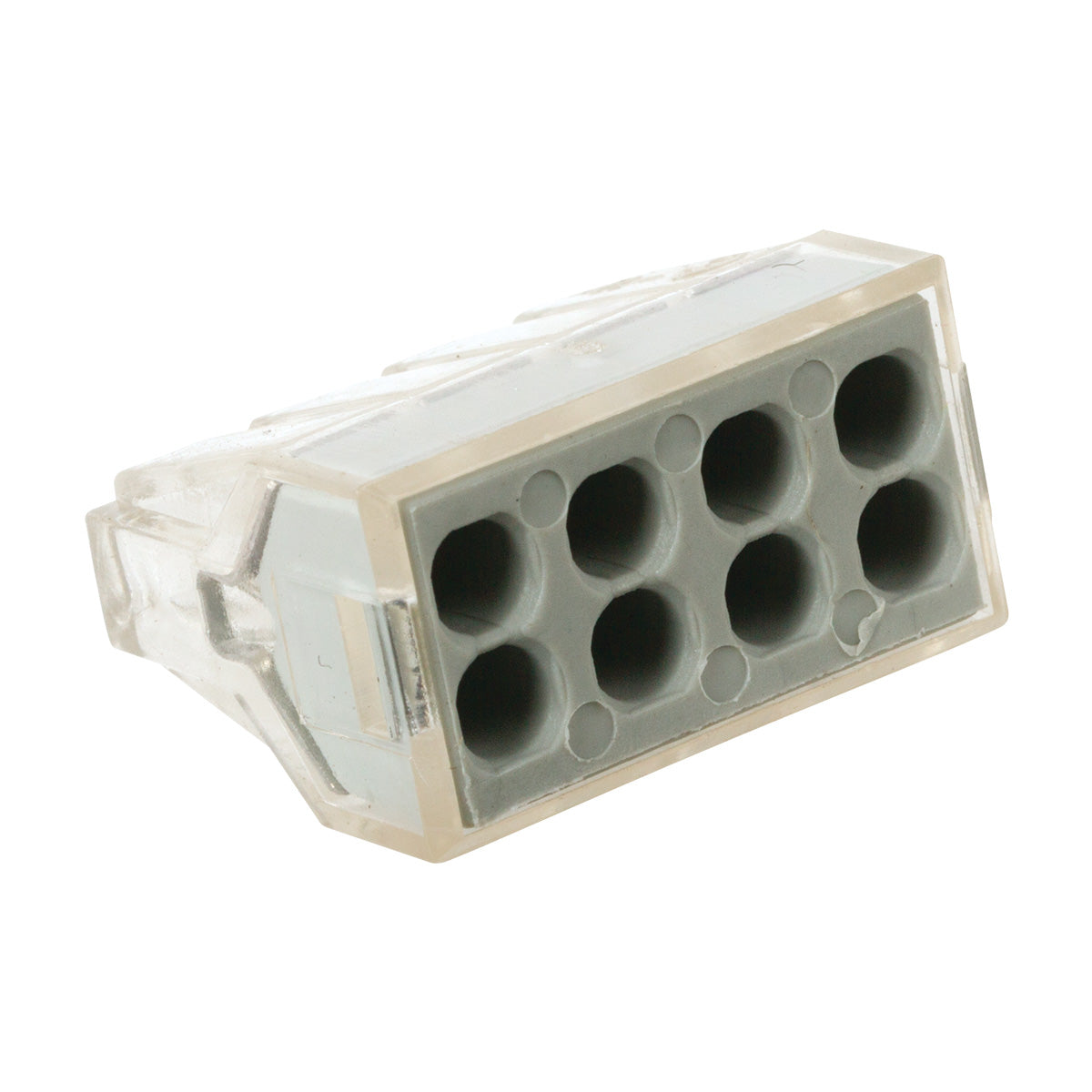

The PCT218108 express connector (also referred to as the PCT-108) is a high-capacity, 8-port push-in wire connector designed for fast, tool-free electrical installations. It is commonly used in junction boxes, lighting systems, and control panels to consolidate multiple wire connections efficiently.
Key Product Features
- Tool-Free "Plug & Play": Features a push-in mechanism that allows for quick and secure wire insertion without the need for twisting, taping, or crimping.
- Visual Inspection: The transparent housing allows you to visually verify that conductors are fully inserted and properly stripped.
- Space-Saving Design: Consolidates up to eight wires into a single compact block, reducing space consumption in crowded junction boxes by up to 40% compared to traditional connectors.
- Built-in Test Point: Includes an integrated test slot for easy electrical testing with standard probes without dismantling the connection.
- Durable Build: Made from high-quality, flame-retardant Nylon (PA66) that is resistant to heat, corrosion, and aging.
Technical Specifications
- Model Number: PCT-108 / PCT218108.
- Number of Ports: 8 Poles.
- Voltage Rating: Rated for up to 400V.
- Current Rating: Typically rated at 24A (though some high-capacity variants support up to 32A).
- Wire Compatibility: Supports solid copper wires ranging from 0.5mm² to 2.5mm² (approx. 18–12 AWG).
- Strip Length: Recommended wire stripping length of 8mm to 10mm.
- Operating Temperature: Rated for stable use between -40°C and +105°C
Specifications
The PCT218108 express connector (also referred to as the PCT-108) is a high-capacity, 8-port push-in wire connector designed for fast, tool-free electrical installations. It is commonly used in junction boxes, lighting systems, and control panels to consolidate multiple wire connections efficiently.
Key Product Features
- Tool-Free "Plug & Play": Features a push-in mechanism that allows for quick and secure wire insertion without the need for twisting, taping, or crimping.
- Visual Inspection: The transparent housing allows you to visually verify that conductors are fully inserted and properly stripped.
- Space-Saving Design: Consolidates up to eight wires into a single compact block, reducing space consumption in crowded junction boxes by up to 40% compared to traditional connectors.
- Built-in Test Point: Includes an integrated test slot for easy electrical testing with standard probes without dismantling the connection.
- Durable Build: Made from high-quality, flame-retardant Nylon (PA66) that is resistant to heat, corrosion, and aging.
Technical Specifications
- Model Number: PCT-108 / PCT218108.
- Number of Ports: 8 Poles.
- Voltage Rating: Rated for up to 400V.
- Current Rating: Typically rated at 24A (though some high-capacity variants support up to 32A).
- Wire Compatibility: Supports solid copper wires ranging from 0.5mm² to 2.5mm² (approx. 18–12 AWG).
- Strip Length: Recommended wire stripping length of 8mm to 10mm.
- Operating Temperature: Rated for stable use between -40°C and +105°C
