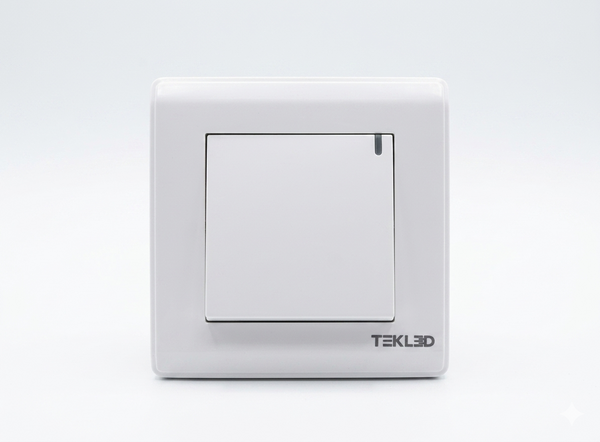

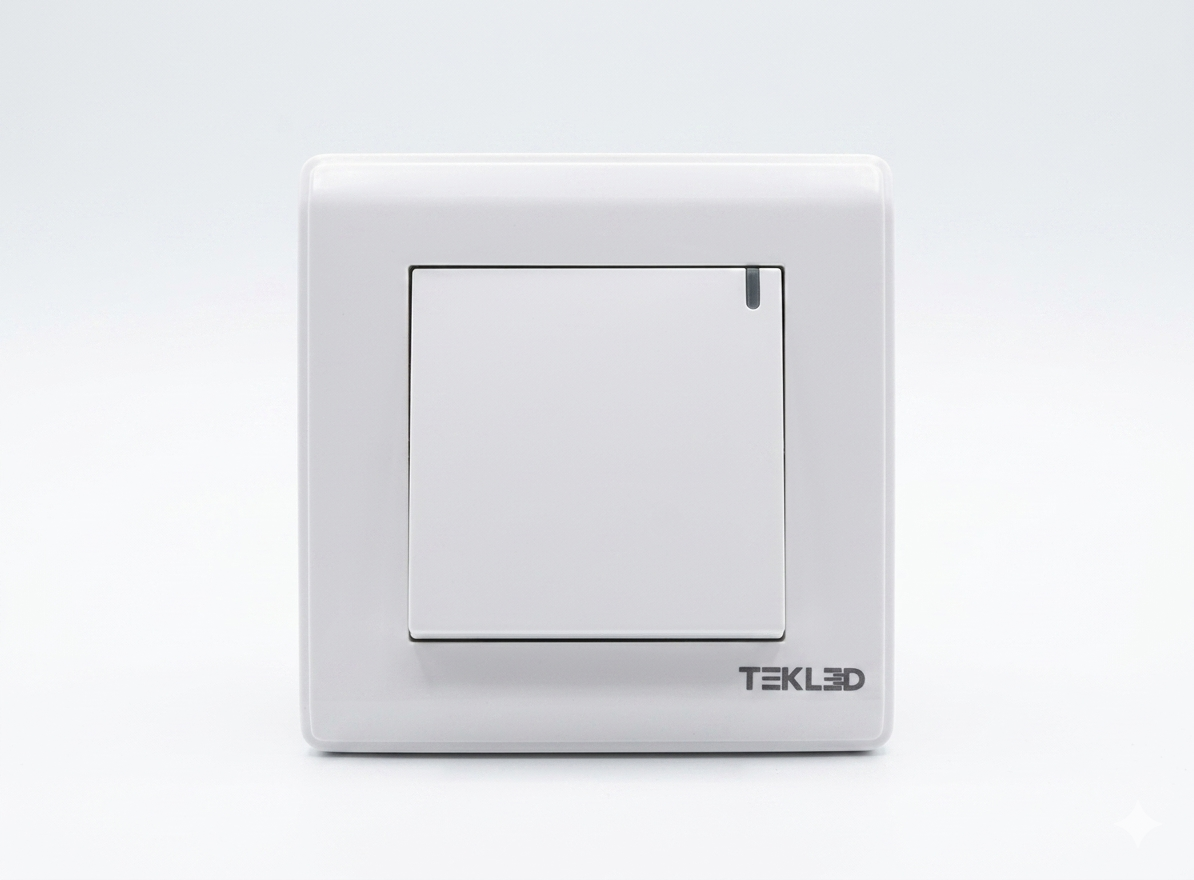

The TEKLED Prime White 1 Gang 2 Way Switch is a clean, minimalist wall switch designed for modern interior lighting control. Featuring a broad, premium rocker panel with a built-in neon locator indicator, this device seamlessly blends aesthetic design with technical functionality. It offers 2-way wiring circuitry, enabling users to control a single light fixture or zone from two completely separate physical locations.
Detailed Technical Specifications
-
Rated Voltage: 250V AC (50/60Hz grid configuration)
-
Rated Current: 10A / 16A standard lighting load capacity
-
Configuration: 1 Gang (Single large rocker panel)
-
Switching Mode: 2 Way (Can be wired for standard 1-way or intermediate 2-way control loops)
-
Indicator Light: Integrated fluorescent/neon orientation window (Top right)
-
Housing Material: High-grade, UV-stabilized, flame-retardant white polycarbonate panel
-

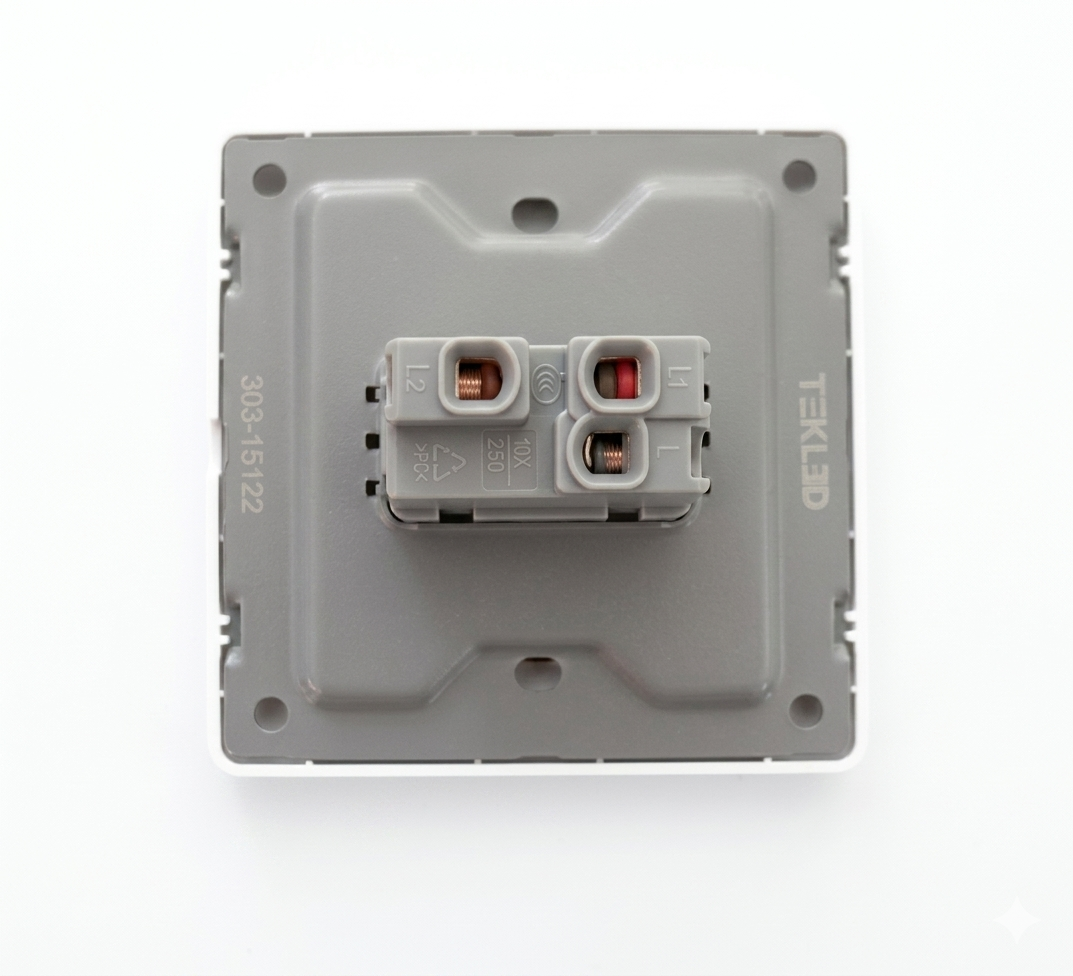

Terminal Material: High-conductivity solid brass connectors with heavy-duty screw clamps
-
Dimensions: Standard 86mm x 86mm square faceplate layout
Key Features & Safety Infrastructure
-
Versatile 2-Way Switching: Fully capable of handling multi-location loops, meaning it can be paired with another 2-way switch to toggle a hallway light from both the top and bottom of a staircase.
-
Integrated Neon Locator: Features a small, transparent light aperture in the upper corner of the rocker, ensuring the switch remains clearly visible in total darkness.
-
Premium Tactile Feel: Built with a spring-loaded, low-noise rocker mechanism that delivers a firm click response upon actuation.
-
Enhanced Safety Build: Molded out of self-extinguishing polycarbonate materials that resist high temperatures, standard electrical arcing, and color yellowing over time.
Typical Applications
-
Staircases and Corridors: Frequently installed at both ends of long walkways or steps to allow flexible lighting control from either entry point.
-
Master Bedrooms: Positioned symmetrically by the entry door and right beside the bedside frame, removing the need to get out of bed to kill main lights.
- Large Living Rooms: Configured at multiple entry zones in open-concept spaces to provide effortless light toggling across a wide footprint.
