SPARE DRIVER 24V IP68 FOR 210-03100/102
SPARE DRIVER 24V IP68 FOR 210-03100/102
Regular price
GH₵445.00
Sale price
GH₵445.00
Unit price
per
Light bulb sold separately
SKU: SKU: 210-03700 EAN:| EAN:
In stock. 57 available
Couldn't load pickup availability
SPARE DRIVER 24V IP68 FOR 210-03100/102
150 Watts
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The Maoshuo IP68 Constant Voltage LED Driver is an industrial-grade, ultra-thin waterproof power supply. It is specifically engineered to safely convert primary mains AC power down to a stable low-voltage DC current for heavy-duty outdoor strip installations and automated architectural lighting networks.
Product Description

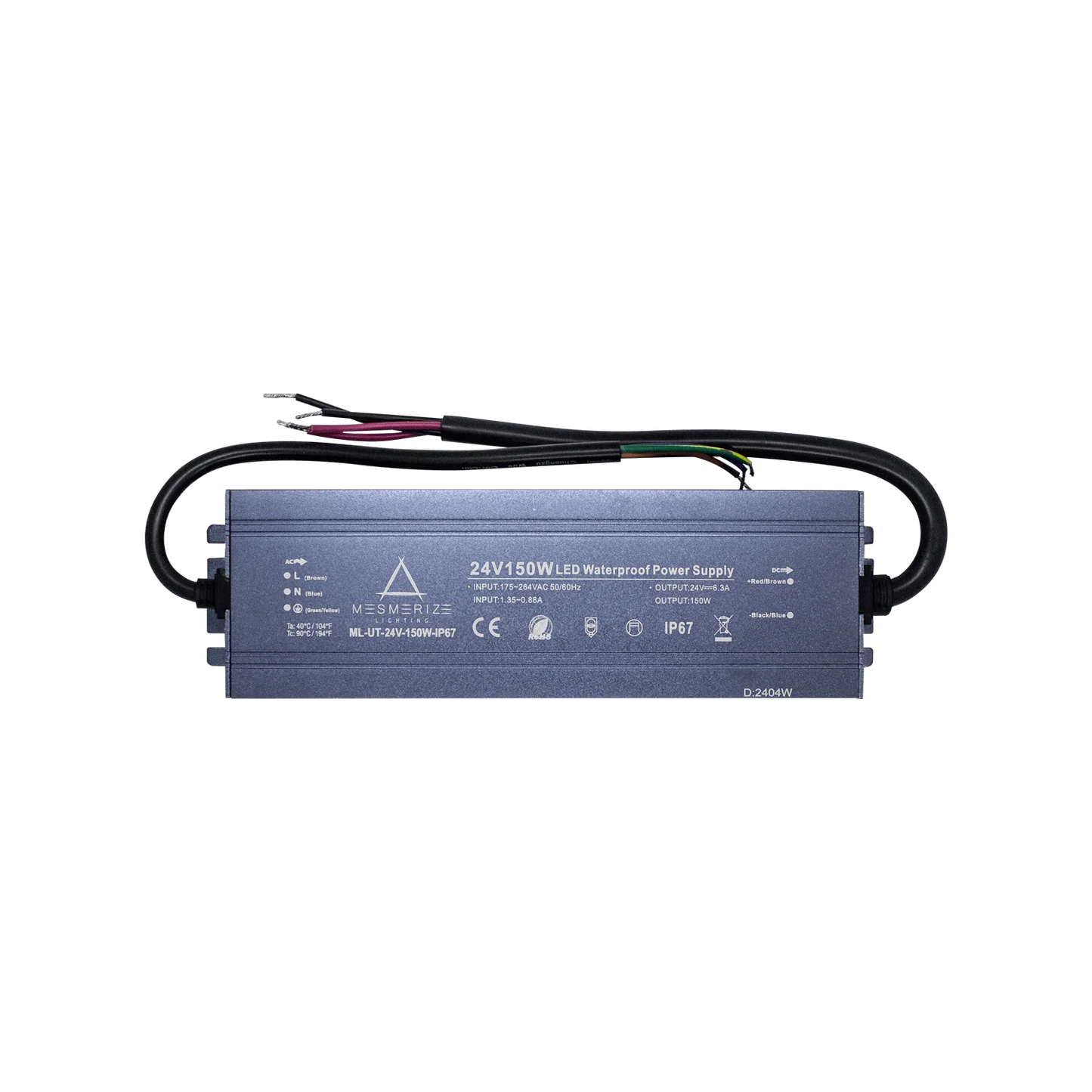

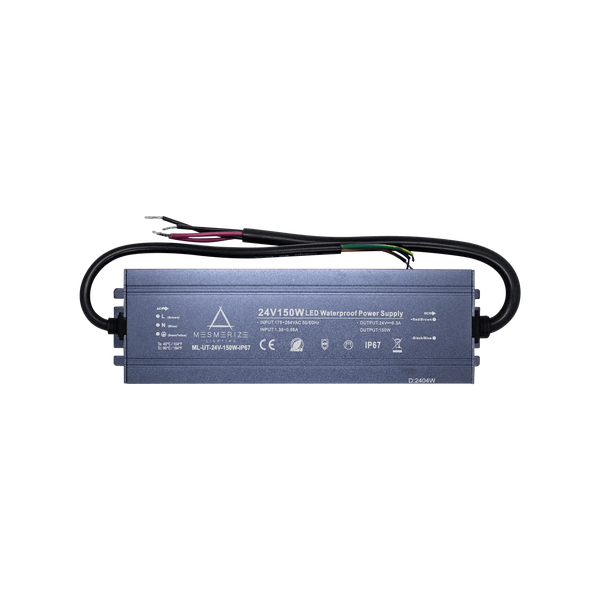

This spare driver features an ultra-thin linear design encased in a hard-anodized blue aluminum extrusion chassis. The metal body acts as an efficient passive cooling block, pulling heat away from internal solid-state components without requiring noisy internal fans.
Internally, the transformer is fully potted with protective epoxy resin, achieving a top-tier IP68 waterproof rating. This ensures the internal circuits are protected against heavy rain, dust storm ingress, and temporary immersion. Outfitted with robust dual-sided fly-lead wiring bundles, the driver easily integrates into tight architectural slots, outdoor luminaire boxes, or specialized aluminum lighting profile tracks.
Technical Specifications
This high-capacity transformer uses standardized electrical parameters:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand / Product Line | Maoshuo |
| Model / SKU Reference | ML-UT-24V-150W-IP68 |
| Power Supply Type | Constant Voltage (CV) LED Transformer |
| Maximum Power Capacity | 150 Watts and 300 Watts |
| Output Operating Voltage | 24V DC (Direct Current) |
| Maximum Output Current | 6.25 Amperes and 12.5 Amperes |
| Input Operational Voltage | 175V – 264V AC, 50/60Hz |
| Rated Load Input Amps | 1.35A – 0.88A max draw |
| Weather Protection Class | IP68 Rated (Fully weatherproof and dust-tight) |
| Thermal Operating Threshold | Ambient: 40°C | Case Maximum: 90°C |
| Wiring Pinout Colors |
Input: Brown (L), Blue (N), Green/Yellow (Earth) Output: Red/Brown (+), Black/Blue (-) |
| Certifications & Compliance | CE, SELV, RoHS Compliant, Short-Circuit Protected |
System Applications
The 24V constant voltage output combined with full weatherproofing makes this spare driver effective for various indoor and outdoor low-voltage layouts:
- High-Output Outdoor LED Strips: Powers expansive architectural LED tape light arrays on outdoor building trims, roof lines, and under-cabinet setups.
- Exterior Neon Flex Routing: Serves as the primary power station for low-voltage decorative signage, building facades, and creative commercial installations.
- Landscape & Garden Illumination: Supplies reliable, safe low-voltage power to buried walk-over spotlights, pool-deck perimeter markers, and up-lighting fixtures.
- Industrial Panel Sub-Assemblies: Functions as a heavy-duty, internal step-down power supply within exterior automation control panels, security hubs, and intercom grids.
- Signage and Light Boxes: Provides bright, flicker-free low-voltage power to commercial advertising displays, outdoor menus, and architectural letters.
Specifications
The Maoshuo IP68 Constant Voltage LED Driver is an industrial-grade, ultra-thin waterproof power supply. It is specifically engineered to safely convert primary mains AC power down to a stable low-voltage DC current for heavy-duty outdoor strip installations and automated architectural lighting networks.
Product Description
This spare driver features an ultra-thin linear design encased in a hard-anodized blue aluminum extrusion chassis. The metal body acts as an efficient passive cooling block, pulling heat away from internal solid-state components without requiring noisy internal fans.
Internally, the transformer is fully potted with protective epoxy resin, achieving a top-tier IP68 waterproof rating. This ensures the internal circuits are protected against heavy rain, dust storm ingress, and temporary immersion. Outfitted with robust dual-sided fly-lead wiring bundles, the driver easily integrates into tight architectural slots, outdoor luminaire boxes, or specialized aluminum lighting profile tracks.
Technical Specifications
This high-capacity transformer uses standardized electrical parameters:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand / Product Line | Maoshuo |
| Model / SKU Reference | ML-UT-24V-150W-IP68 |
| Power Supply Type | Constant Voltage (CV) LED Transformer |
| Maximum Power Capacity | 150 Watts and 300 Watts |
| Output Operating Voltage | 24V DC (Direct Current) |
| Maximum Output Current | 6.25 Amperes and 12.5 Amperes |
| Input Operational Voltage | 175V – 264V AC, 50/60Hz |
| Rated Load Input Amps | 1.35A – 0.88A max draw |
| Weather Protection Class | IP68 Rated (Fully weatherproof and dust-tight) |
| Thermal Operating Threshold | Ambient: 40°C | Case Maximum: 90°C |
| Wiring Pinout Colors |
Input: Brown (L), Blue (N), Green/Yellow (Earth) Output: Red/Brown (+), Black/Blue (-) |
| Certifications & Compliance | CE, SELV, RoHS Compliant, Short-Circuit Protected |
System Applications
The 24V constant voltage output combined with full weatherproofing makes this spare driver effective for various indoor and outdoor low-voltage layouts:
- High-Output Outdoor LED Strips: Powers expansive architectural LED tape light arrays on outdoor building trims, roof lines, and under-cabinet setups.
- Exterior Neon Flex Routing: Serves as the primary power station for low-voltage decorative signage, building facades, and creative commercial installations.
- Landscape & Garden Illumination: Supplies reliable, safe low-voltage power to buried walk-over spotlights, pool-deck perimeter markers, and up-lighting fixtures.
- Industrial Panel Sub-Assemblies: Functions as a heavy-duty, internal step-down power supply within exterior automation control panels, security hubs, and intercom grids.
- Signage and Light Boxes: Provides bright, flicker-free low-voltage power to commercial advertising displays, outdoor menus, and architectural letters.
