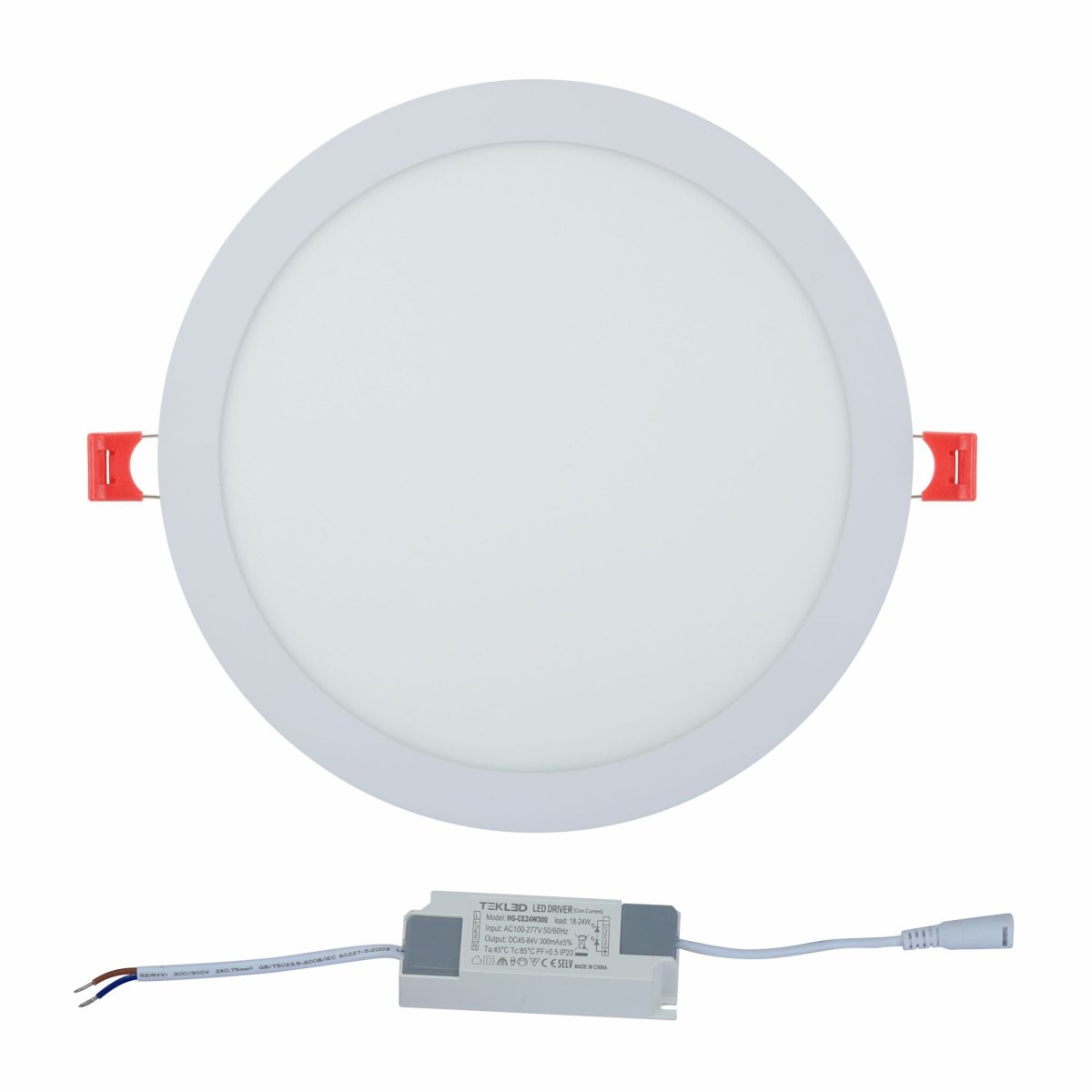

The SV-K DL LED SLIM ROUND PANEL 24W 5700K is a high-efficiency, low-profile recessed ceiling panel luminaire. It is specifically designed with edge-lit technology to deliver crisp, glare-free daylight illumination inside space-constrained commercial and residential false ceiling installations.

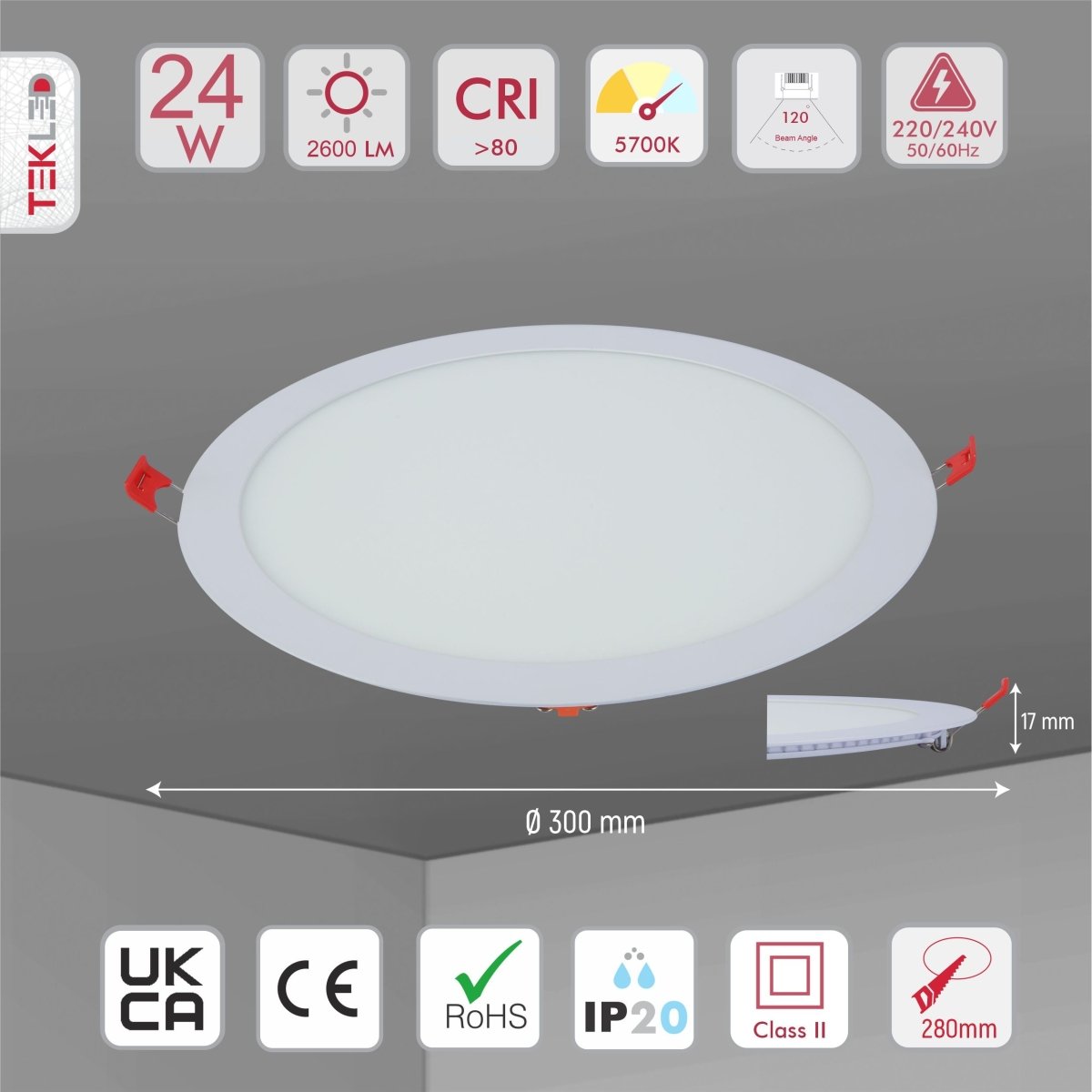

Technical Specifications
-
Light Source Type: Integrated high-density energy-saving SMD LED matrix board
-
Power Consumption: 24W total operational system draw
-
Color Temperature: 5700K (Crisp Cool Daylight White spectrum)
-
Luminous Flux: High-performance brightness reaching up to 2400 to 2600 lumens
-
Housing Dimensions: Ultra-thin profile width of φ300 mm (30 cm diameter) × 17 mm structural depth
-
Electrical Driver: External dedicated TEKLED LED Driver transformer (
Model: HG-CB24W300) with an input tolerance range of AC 100-277V (50/60Hz) converting to DC 48-84V (300mA)
-
Ingress Protection Rating: IP20 certified (optimized for dry indoor architectural environments)

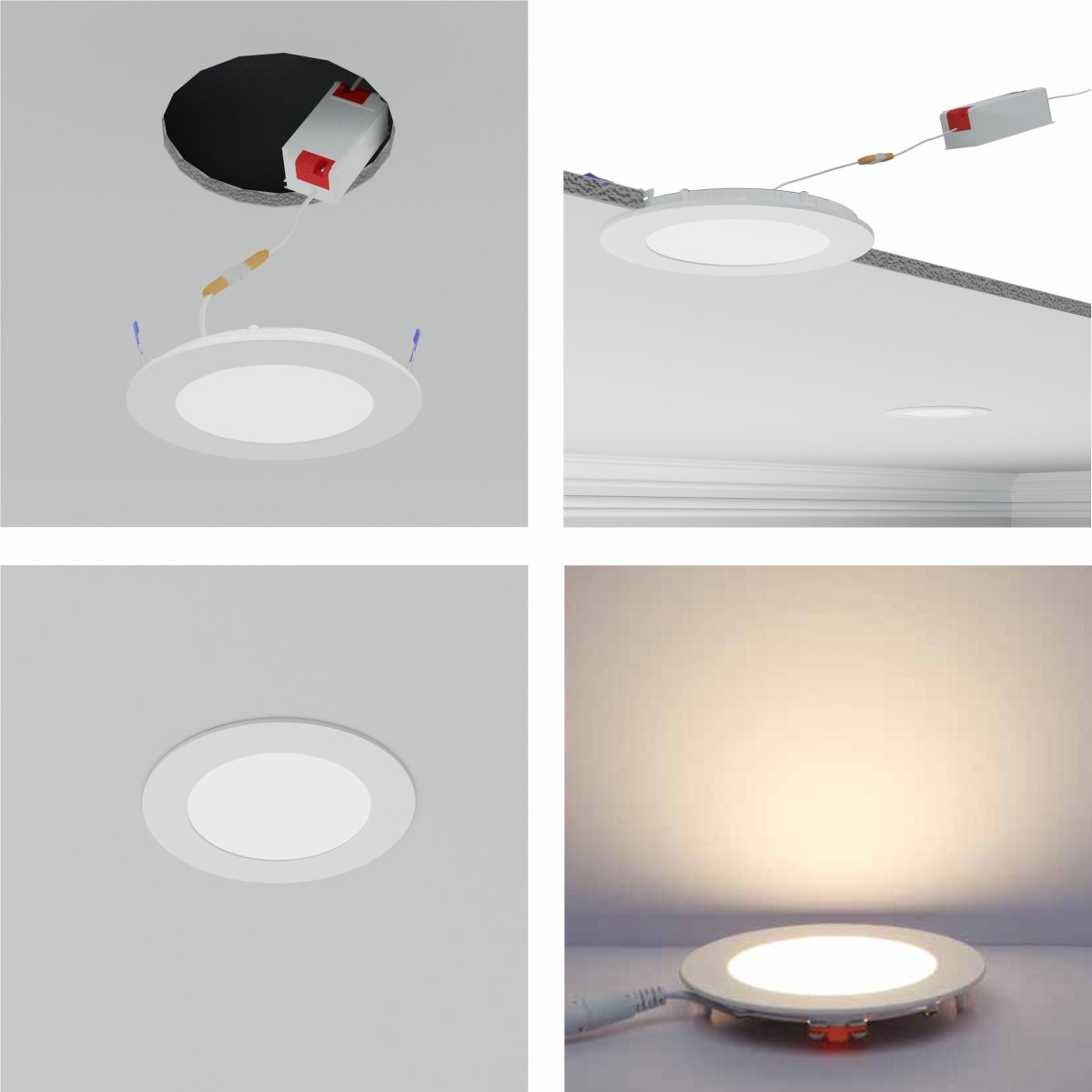

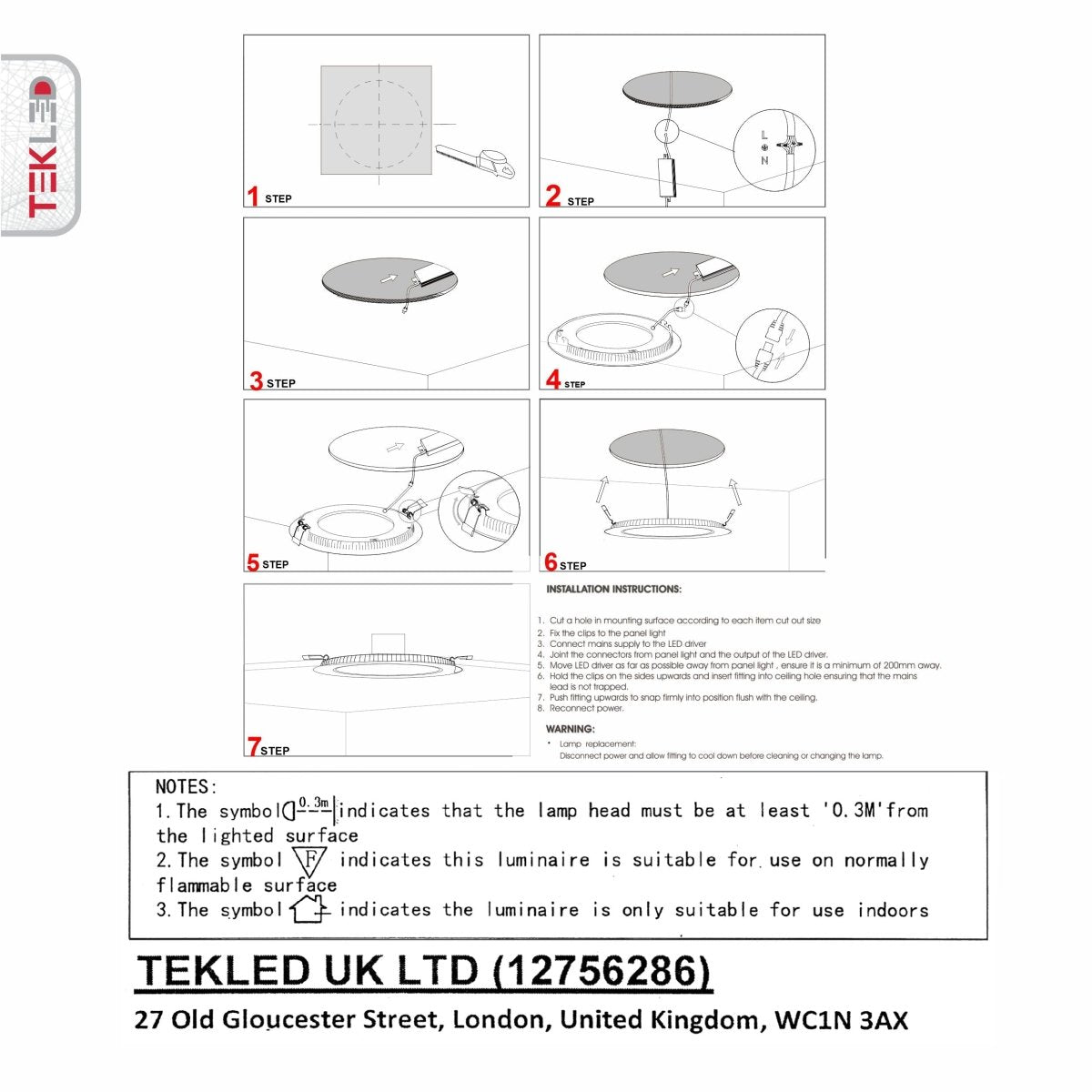

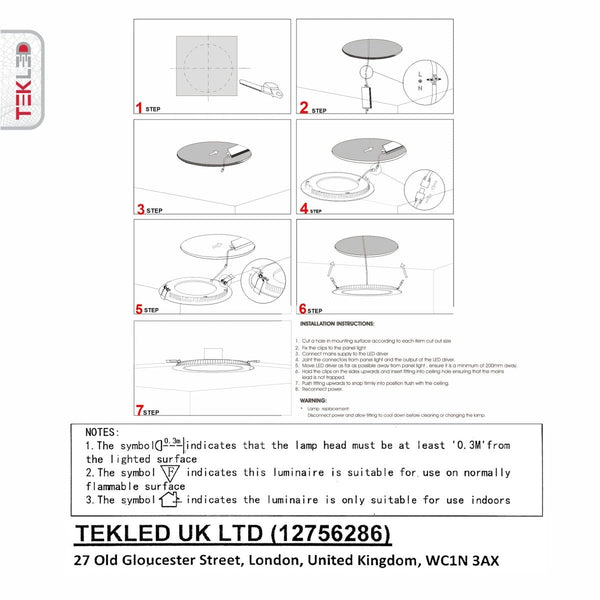

- Installation Method: Recessed ceiling mounting via integrated orange-capped side tension spring clips
Structural & Optical Features
-
17mm Ultra-Slim Profile: The low-profile flat-panel depth easily bypasses clearance constraints in tight ceiling voids, completely avoiding internal plumbing lines, HVAC ductwork, or structural concrete layout beams.
-

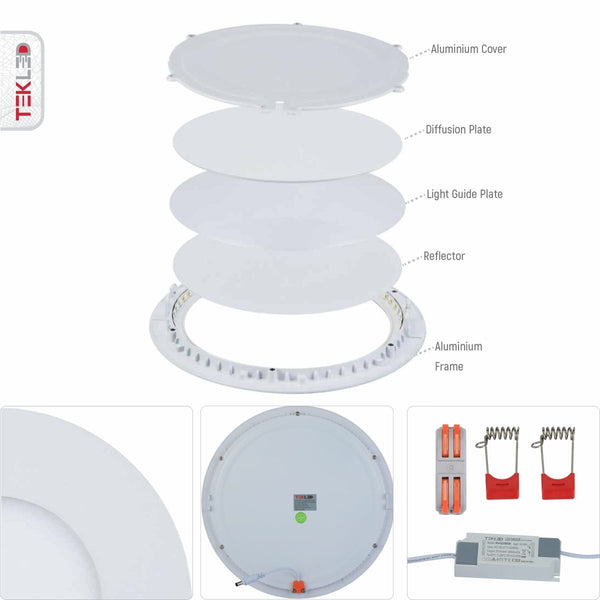

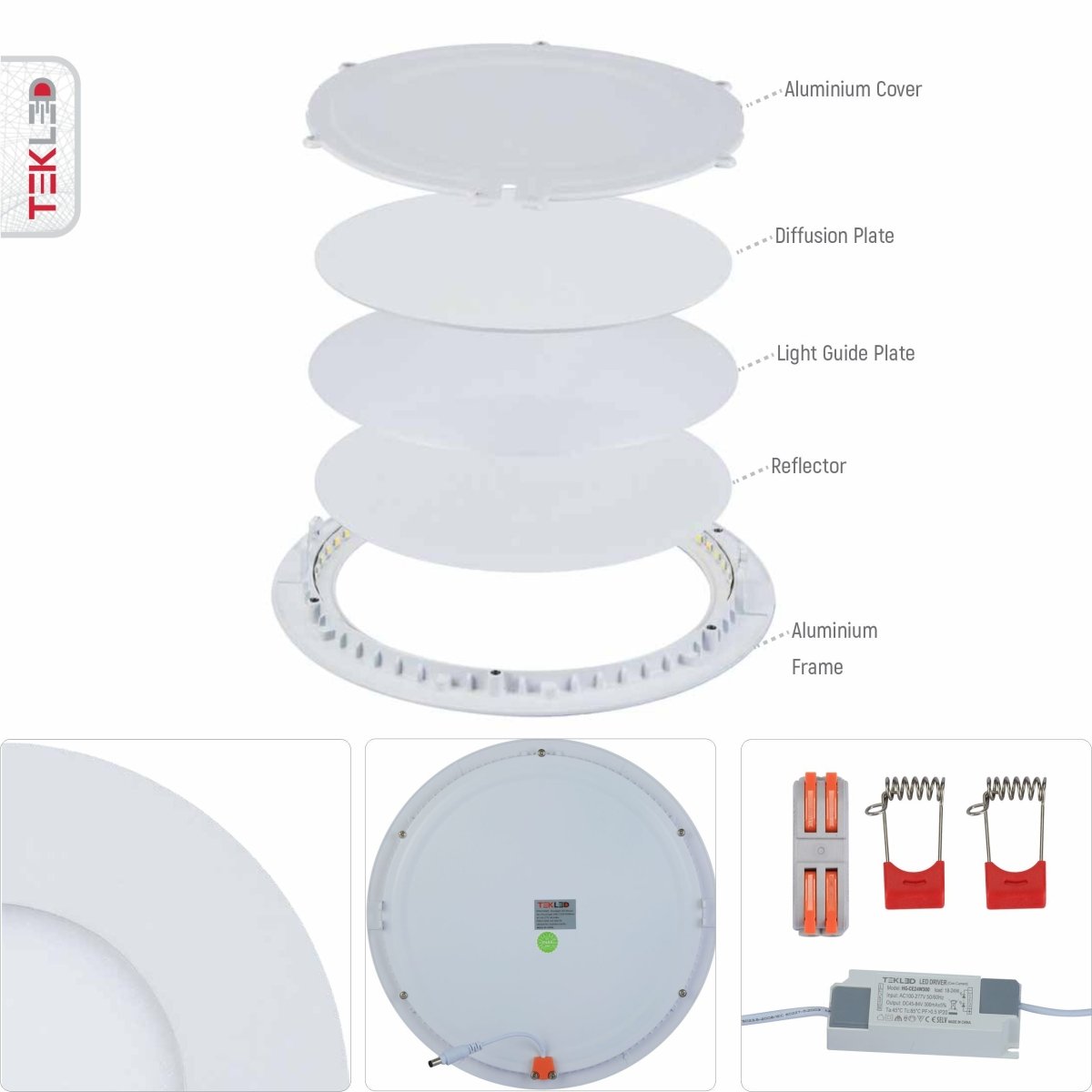

Advanced Edge-Lit Optics: Side-mounted LED strings direct light sideways into an internal light guide plate, shifting the beam down through a frosted opal diffuser panel. This eliminates raw chip hotspots and provides a uniform blanket of light that reduces eye strain.
-
Independent External Driver: Separating the power supply driver block from the primary luminaire chassis limits heat build-up inside the ceiling void, preserving long-term color stability.
Core Application Placements
-

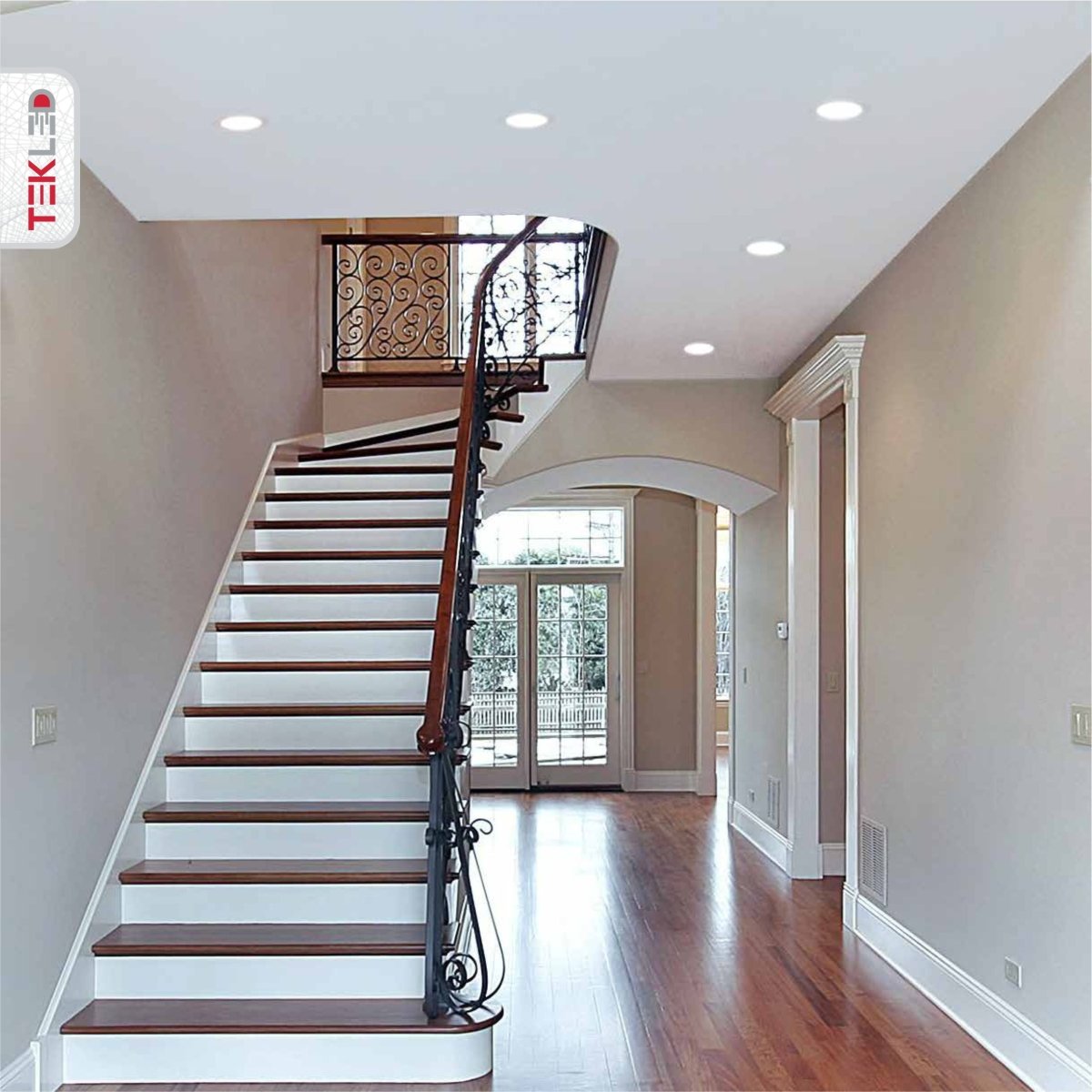

Central ambient ceiling downlighting for modern residential living rooms, kitchens, bedrooms, and wide corridors.
-
High-visibility corporate task setups for commercial office blocks, classrooms, reception lobbies, and conference spaces.
- Clean architectural utility framing inside retail showrooms, clothing boutiques, grocery storefronts, beauty salons, and hospital halls.
