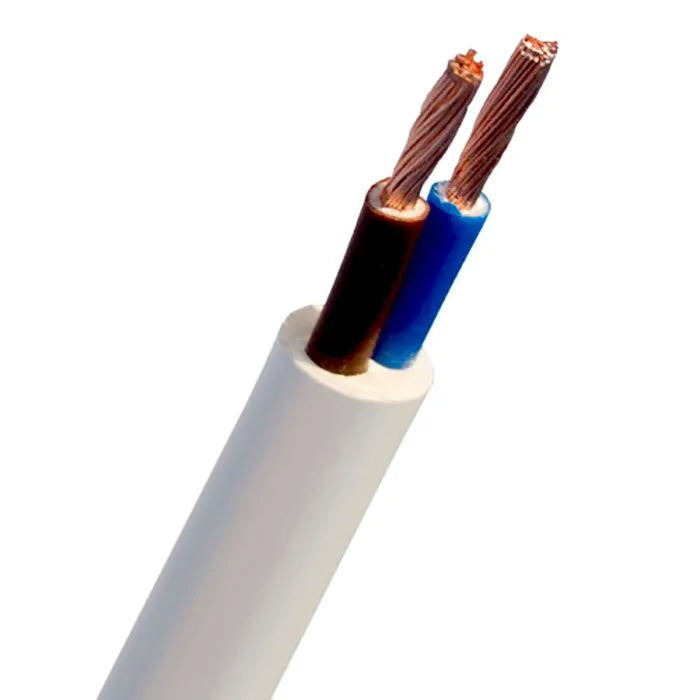

TTR FLEXIBLE CABLE 2x1.5 mm (SIGNAL)
TTR FLEXIBLE CABLE 2x1.5 mm (SIGNAL)
SKU: SKU: 401-56418 EAN:| EAN:
Low stock: 9 available
Couldn't load pickup availability
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The TTR Flexible Cable 2x1.5 mm (SIGNAL) is a multi-core, harmonized electrical cable designed for low-voltage applications that require frequent bending and movement. In many regions, this cable type is also referred to as H05VV-F or RVV.
| Feature | Specification |
|---|---|
| Number of Cores | 2 (typically Brown for Live and Blue for Neutral) |
| Conductor Size | 1.5 mm² per core |
| Conductor Type | Stranded Copper (Class 5 flexibility) |
| Voltage Rating | 300/500 V |
| Temperature Range | Fixed: -40°C to +70°C; Flexing: -5°C to +70°C |
| Insulation & Sheath | PVC (Polyvinyl Chloride) |
| Max Current Rating | Typically up to 16A in standard indoor setups |
- High Flexibility: The Class 5 stranded copper core allows for a low bending radius (typically 6x the cable diameter), making it easy to route in tight spaces.
- Common Uses: Ideal for household appliances (e.g., washing machines, refrigerators), office equipment, portable tools, and lighting fixtures.
- Indoor Suitability: While it is moisture-resistant and suitable for damp indoor premises, it is not recommended for permanent outdoor use as the PVC sheath lacks UV protection and can become brittle under sunlight.
- Safety Standards: Complies with harmonized European standards (TS EN 50525-2-11) and is generally flame-retardant (IEC 60332-1).
Specifications
The TTR Flexible Cable 2x1.5 mm (SIGNAL) is a multi-core, harmonized electrical cable designed for low-voltage applications that require frequent bending and movement. In many regions, this cable type is also referred to as H05VV-F or RVV.
| Feature | Specification |
|---|---|
| Number of Cores | 2 (typically Brown for Live and Blue for Neutral) |
| Conductor Size | 1.5 mm² per core |
| Conductor Type | Stranded Copper (Class 5 flexibility) |
| Voltage Rating | 300/500 V |
| Temperature Range | Fixed: -40°C to +70°C; Flexing: -5°C to +70°C |
| Insulation & Sheath | PVC (Polyvinyl Chloride) |
| Max Current Rating | Typically up to 16A in standard indoor setups |
- High Flexibility: The Class 5 stranded copper core allows for a low bending radius (typically 6x the cable diameter), making it easy to route in tight spaces.
- Common Uses: Ideal for household appliances (e.g., washing machines, refrigerators), office equipment, portable tools, and lighting fixtures.
- Indoor Suitability: While it is moisture-resistant and suitable for damp indoor premises, it is not recommended for permanent outdoor use as the PVC sheath lacks UV protection and can become brittle under sunlight.
- Safety Standards: Complies with harmonized European standards (TS EN 50525-2-11) and is generally flame-retardant (IEC 60332-1).
