VTC-12/10/S AC CONTACTOR 12A 1NO 230V(VIKO)
VTC-12/10/S AC CONTACTOR 12A 1NO 230V(VIKO)
Regular price
GH₵120.00
Sale price
GH₵120.00
Unit price
per
Light bulb sold separately
SKU: SKU: 620-36012 EAN:| EAN:
In stock. 23 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
VTC-12/10/S AC CONTACTOR 12A 1NO 230V(VIKO)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

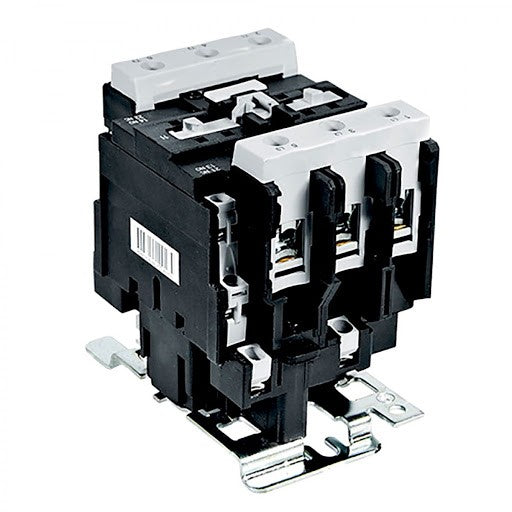

The Viko VTC-12/10/S is a compact 3-pole AC contactor designed for switching electrical power circuits. It is commonly used in industrial and commercial control systems to remotely operate motors, heating elements, and large lighting loads.
Technical Specifications
- Rated Current (Ie): 12A (AC-3 category).
- Coil Voltage: 230V AC (50/60Hz).
- Auxiliary Contacts: 1NO (1 Normally Open).
- Poles: 3-Pole (main power contacts).
- Rated Insulation Voltage (Ui): 690V.
- Operating Power (AC-3, 380/400V): Typically supports motors up to 5.5kW.
- Mechanical Life: Up to 10,000,000 operations.
- Electrical Life: Up to 1,000,000 operations.
Key Features
- Durable Performance: Built for high-frequency switching, providing reliable control for inductive and resistive loads.
- Mounting Versatility: Can be easily mounted on a standard 35mm DIN rail or screw-fixed to a mounting plate.
- Expandability: Supports the addition of side-mounted or top-mounted auxiliary contact blocks for more complex control logic.
- Safety: Features shrouded terminals to prevent accidental contact with live parts.
Common Applications
- Motor Starters: Often used as the main switching component in Direct-On-Line (DOL) or Star-Delta motor starters.
- Lighting Control: Ideal for managing high-power lighting circuits in warehouses or street lighting systems.
- HVAC Systems: Used to control compressors, fans, and heaters in air conditioning and ventilation units.
Specifications
The Viko VTC-12/10/S is a compact 3-pole AC contactor designed for switching electrical power circuits. It is commonly used in industrial and commercial control systems to remotely operate motors, heating elements, and large lighting loads.
Technical Specifications
- Rated Current (Ie): 12A (AC-3 category).
- Coil Voltage: 230V AC (50/60Hz).
- Auxiliary Contacts: 1NO (1 Normally Open).
- Poles: 3-Pole (main power contacts).
- Rated Insulation Voltage (Ui): 690V.
- Operating Power (AC-3, 380/400V): Typically supports motors up to 5.5kW.
- Mechanical Life: Up to 10,000,000 operations.
- Electrical Life: Up to 1,000,000 operations.
Key Features
- Durable Performance: Built for high-frequency switching, providing reliable control for inductive and resistive loads.
- Mounting Versatility: Can be easily mounted on a standard 35mm DIN rail or screw-fixed to a mounting plate.
- Expandability: Supports the addition of side-mounted or top-mounted auxiliary contact blocks for more complex control logic.
- Safety: Features shrouded terminals to prevent accidental contact with live parts.
Common Applications
- Motor Starters: Often used as the main switching component in Direct-On-Line (DOL) or Star-Delta motor starters.
- Lighting Control: Ideal for managing high-power lighting circuits in warehouses or street lighting systems.
- HVAC Systems: Used to control compressors, fans, and heaters in air conditioning and ventilation units.
