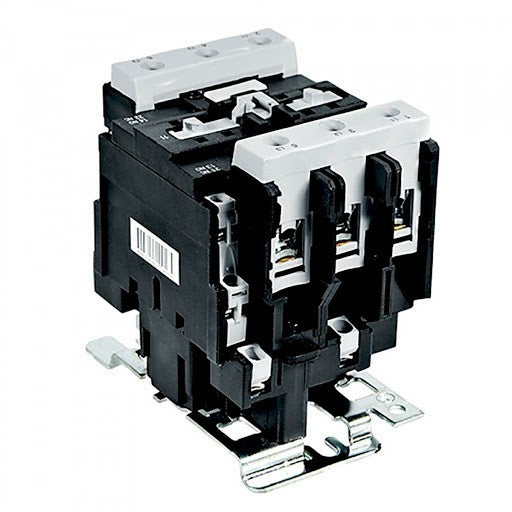

VTC-40/11/SAC CONTACTOR 40A 1NO+1NC 230V(VIK)
VTC-40/11/SAC CONTACTOR 40A 1NO+1NC 230V(VIK)
Regular price
GH₵429.00
Sale price
GH₵429.00
Regular price
GH₵613.00
Unit price
per
Light bulb sold separately
SKU: SKU: 620-36040 EAN:| EAN:
Low stock: 1 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
VTC-40/11/SAC CONTACTOR 40A 1NO+1NC 230V(VIK)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The VIKO VTC-40/11/SAC is a heavy-duty 3-pole AC magnetic contactor designed for industrial power, distribution, and motor control. It functions as an electrical switch to handle high-current loads, providing a greater load capacity and stable contact points with strong electrical conductivity.
Technical Specifications
- Operational Current: 40A
- Coil Voltage: 230V AC (Standard for industrial control circuits)
- Contact Configuration: 1NO + 1NC (One Normally Open and one Normally Closed auxiliary contact)
- Phase/Poles: 3-Phase / 3-Pole
- Insulation Voltage: Typically up to 690V
- Mounting: Compatible with standard 35mm DIN Rail mounting or screw mounting
Key Features
- Reliable Components: Features silver contact points and refractory material to ensure long-lasting performance and high breaking capacity under heavy loads.
- High Sensitivity: The 3P AC contactor is designed with a sensitive mechanism to ensure immediate and stable switching.
- Industrial Durability: Constructed from high-strength plastic and metal electrical parts to withstand frequent start/stop operations in factory environments.
- Safety Integration: Includes auxiliary contacts (1NO + 1NC) that allow for integration with feedback and protection systems, such as thermal overload relays.
Typical Applications
This contactor is primarily used for:
- Motor Control: Starting and stopping large AC motors in industrial machinery.
- Power Distribution: Controlling heating, ventilation, and lighting circuits in commercial buildings.
- Circuit Protection: Acting as a primary switch controller in complex electrical panels.
If you are setting up a control panel, I can help you find:
- Thermal Overload Relays for motor protection
- Compatible DIN Rails or mounting brackets
- Push-button stations for manual operation
