ALUMINUM PROFILE 13X13MM A1313ZJ (TEKLED)
ALUMINUM PROFILE 13X13MM A1313ZJ (TEKLED)
Regular price
GH₵75.00
Sale price
GH₵75.00
Unit price
per
Light bulb sold separately
SKU: SKU: 169-03774 EAN:| EAN:
Low stock: 2 available
Couldn't load pickup availability
Liquid error (snippets/sticky-add-to-cart line 11): invalid url input
ALUMINUM PROFILE 13X13MM A1313ZJ (TEKLED)
Default Title
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description

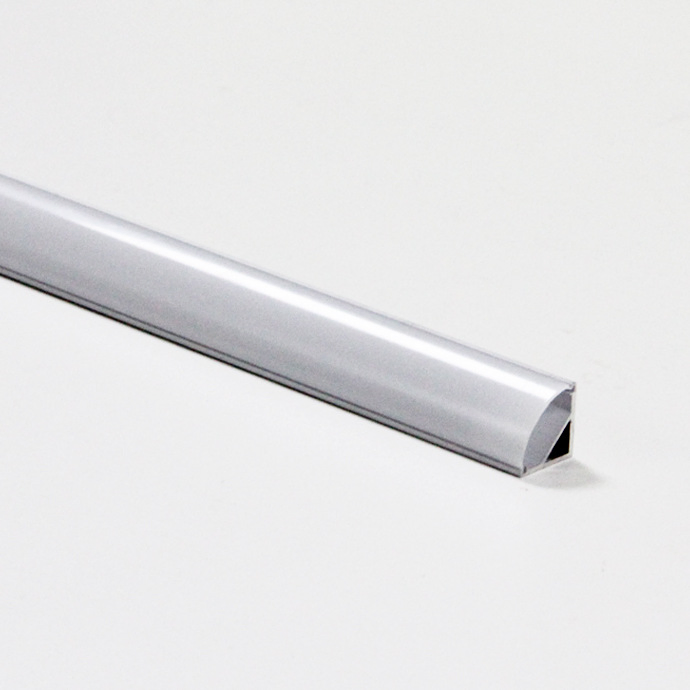

The TEKLED A1313ZJ 13×13mm Corner LED Aluminum Profile is a sleek, architectural-grade linear housing channel. Specifically engineered for 90-degree corner installations, this compact triangular extrusion allows flexible LED tape light strips to be mounted flush inside perpendicular structural joints while delivering an elegant, angled ambient glow.
Product Description
This professional extrusion features a high-density, anodized 6063-T5 aluminum alloy housing cut into a specialized 13mm right-angle triangular footprint. The metal framing acts as an essential thermal cooling block (heatsink), pulling heat away from dense LED chip matrixes to prevent premature light dimming and extend ribbon longevity.
The face is equipped with a high-transmittance, milky white frosted diffuser cover that smoothly snaps onto the track. This diffuser eliminates harsh hotspots and diode glare, converting localized LED points into a continuous, uniform stream of soft accent lighting. Complete with matching end caps and surface mounting clips, the profile sits perfectly flush in corners, making it virtually invisible when unlit.
Technical Specifications
This TEKLED corner channel complies with standard commercial lighting hardware metrics:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand / Supplier | TEKLED Ghana |
| Model Code | A1313ZJ |
| Profile Footprint Shape | 90-Degree Corner Triangle (Quadrant Round Facing) |
| Extrusion Dimensions | 13.0 mm x 13.0 mm cross-sectional width/height |
| Chassis Construction | Structural Anodized Aluminum Alloy (Grade 6063-T5) |
| Diffuser Shield Material | High-Grade Milky White Frosted Polycarbonate (PC/PMMA) |
| Compatible Strip Width | Fits any standard flexible LED ribbon up to 8mm to 10mm wide |
| Standard Stock Length | Typically supplied in 2-Meter or 3-Meter rigid tracks |
| Weather Protection Class | IP20 Rated (Designed for clean indoor dry area environments) |
| Standard Accessories | Included polymer end-caps and stainless-steel screw mount clips |
System Applications
The right-angle structural configuration of this 13×13mm channel makes it a versatile tool for creating clean, glare-free indirect linear accents:
- Under-Cabinet Kitchen Lighting: Mounted tightly into the 90-degree corner underneath kitchen wall cabinets to direct task illumination directly onto the countertops and backsplashes at a 45-degree angle.
- Showcase & Retail Shelf Displays: Integrated into jewelry display shelves, glass retail cases, and library bookshelves to illuminate products cleanly without exposing naked LED tape rows to customers' eyes.
- Wardrobe & Closet Dressing Arrays: Snaked vertically down the internal corner edges of closets or clothing drawers to cast automatic functional illumination across garment racks.
- Ceiling & Cove Crown Accents: Installed at the junction where walls meet ceilings or inside drop-ceiling coves to project smooth, upward boundary-defining perimeter light layers.
- Staircase Trim & Step Safety: Fastened tightly underneath individual stair treads or along low baseboard wall joints to serve as low-glare safety guide paths at night.
Specifications
The TEKLED A1313ZJ 13×13mm Corner LED Aluminum Profile is a sleek, architectural-grade linear housing channel. Specifically engineered for 90-degree corner installations, this compact triangular extrusion allows flexible LED tape light strips to be mounted flush inside perpendicular structural joints while delivering an elegant, angled ambient glow.
Product Description
This professional extrusion features a high-density, anodized 6063-T5 aluminum alloy housing cut into a specialized 13mm right-angle triangular footprint. The metal framing acts as an essential thermal cooling block (heatsink), pulling heat away from dense LED chip matrixes to prevent premature light dimming and extend ribbon longevity.
The face is equipped with a high-transmittance, milky white frosted diffuser cover that smoothly snaps onto the track. This diffuser eliminates harsh hotspots and diode glare, converting localized LED points into a continuous, uniform stream of soft accent lighting. Complete with matching end caps and surface mounting clips, the profile sits perfectly flush in corners, making it virtually invisible when unlit.
Technical Specifications
This TEKLED corner channel complies with standard commercial lighting hardware metrics:
| Property / Feature | Technical Parameter Value |
|---|---|
| Brand / Supplier | TEKLED Ghana |
| Model Code | A1313ZJ |
| Profile Footprint Shape | 90-Degree Corner Triangle (Quadrant Round Facing) |
| Extrusion Dimensions | 13.0 mm x 13.0 mm cross-sectional width/height |
| Chassis Construction | Structural Anodized Aluminum Alloy (Grade 6063-T5) |
| Diffuser Shield Material | High-Grade Milky White Frosted Polycarbonate (PC/PMMA) |
| Compatible Strip Width | Fits any standard flexible LED ribbon up to 8mm to 10mm wide |
| Standard Stock Length | Typically supplied in 2-Meter or 3-Meter rigid tracks |
| Weather Protection Class | IP20 Rated (Designed for clean indoor dry area environments) |
| Standard Accessories | Included polymer end-caps and stainless-steel screw mount clips |
System Applications
The right-angle structural configuration of this 13×13mm channel makes it a versatile tool for creating clean, glare-free indirect linear accents:
- Under-Cabinet Kitchen Lighting: Mounted tightly into the 90-degree corner underneath kitchen wall cabinets to direct task illumination directly onto the countertops and backsplashes at a 45-degree angle.
- Showcase & Retail Shelf Displays: Integrated into jewelry display shelves, glass retail cases, and library bookshelves to illuminate products cleanly without exposing naked LED tape rows to customers' eyes.
- Wardrobe & Closet Dressing Arrays: Snaked vertically down the internal corner edges of closets or clothing drawers to cast automatic functional illumination across garment racks.
- Ceiling & Cove Crown Accents: Installed at the junction where walls meet ceilings or inside drop-ceiling coves to project smooth, upward boundary-defining perimeter light layers.
- Staircase Trim & Step Safety: Fastened tightly underneath individual stair treads or along low baseboard wall joints to serve as low-glare safety guide paths at night.
