CON 1x1.5MM² STRANDS CABLE (SIGNAL)
CON 1x1.5MM² STRANDS CABLE (SIGNAL)
Regular price
GH₵366.00
Sale price
GH₵366.00
Unit price
per
Light bulb sold separately
SKU: SKU: 401-56400 EAN:| EAN:
In stock. 15 available
Couldn't load pickup availability
CON 1x1.5MM² STRANDS CABLE (SIGNAL)
Red
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The CON.1x1.5MM Stranded Single-Core Electrical Cable is specifically engineered for internal panel wiring, signal transmission, and low-voltage control pathways.
Description
The CON.1x1.5MM Stranded Cable features a single-core conductor built from multiple fine, high-purity annealed copper wires twisted into a Class 5 flexible stranded format. This structure provides exceptional pliability compared to rigid solid-core alternatives, preventing internal copper fatigue when bent or threaded through complex structural routes.

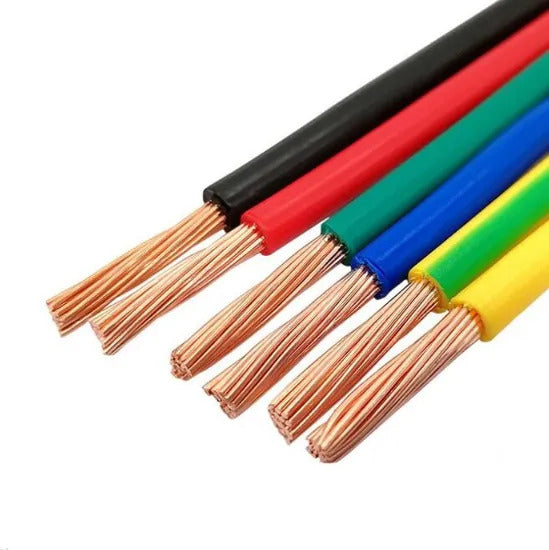

The stranded core is encased in a robust layer of high-grade Polyvinyl Chloride (PVC) insulation. As seen in the provided image, these single-core signal cables are manufactured in a full spectrum of standardized insulation colors (Black, Red, Green, Blue, Green/Yellow, and Yellow) to ensure seamless circuit identification, clear color-coding, and safe phase separation.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Single-Core Stranded Flexible Control/Signal Cable |
| Conductor Cross-Section / Length | 1.5 mm² / 100 Yards |
| Conductor Material | High-Conductivity Electrolytic Grade Flexible Copper (Class 5) |
| Insulation Material | Polyvinyl Chloride (PVC) Compound |
| Available Colors | Black, Red, Green, Blue, Yellow, Green/Yellow (Earth) |
| Voltage Rating (Uo/U) | 300/500V (Light-duty signal signaling) or 450/750V AC mains rated |
| Operating Temperature | Continuous: -5°C to +70°C |
| Standards Compliance | Aligned with BS EN 50525-2-31 / IEC 60227 parameters |
Application and Best Uses
The 1.5mm² cross-section combined with multi-strand flexibility makes this wire the industry standard for internal distribution equipment logic and low-amperage signaling circuits.
- Distribution Board Internals: The premier option for bridging connections, control circuits, and secondary jumpers between miniature circuit breakers (MCBs) inside residential consumer units.
- Signal & Control Systems: Widely used to wire relay stations, industrial contactor panels, thermostat controls, and low-voltage automation modules.
- Conduit and Trunking Paths: Ideal for pulling cleanly through metal or PVC conduit lines embedded in ceilings or walls due to its low friction coefficient and flexibility.
- Lighting Infrastructure: Perfect for supplying main switch lines, lighting loops, and individual pendant fixtures requiring a dedicated 1.5mm² load carrier.
Specifications
The CON.1x1.5MM Stranded Single-Core Electrical Cable is specifically engineered for internal panel wiring, signal transmission, and low-voltage control pathways.
Description
The CON.1x1.5MM Stranded Cable features a single-core conductor built from multiple fine, high-purity annealed copper wires twisted into a Class 5 flexible stranded format. This structure provides exceptional pliability compared to rigid solid-core alternatives, preventing internal copper fatigue when bent or threaded through complex structural routes.
The stranded core is encased in a robust layer of high-grade Polyvinyl Chloride (PVC) insulation. As seen in the provided image, these single-core signal cables are manufactured in a full spectrum of standardized insulation colors (Black, Red, Green, Blue, Green/Yellow, and Yellow) to ensure seamless circuit identification, clear color-coding, and safe phase separation.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Single-Core Stranded Flexible Control/Signal Cable |
| Conductor Cross-Section / Length | 1.5 mm² / 100 Yards |
| Conductor Material | High-Conductivity Electrolytic Grade Flexible Copper (Class 5) |
| Insulation Material | Polyvinyl Chloride (PVC) Compound |
| Available Colors | Black, Red, Green, Blue, Yellow, Green/Yellow (Earth) |
| Voltage Rating (Uo/U) | 300/500V (Light-duty signal signaling) or 450/750V AC mains rated |
| Operating Temperature | Continuous: -5°C to +70°C |
| Standards Compliance | Aligned with BS EN 50525-2-31 / IEC 60227 parameters |
Application and Best Uses
The 1.5mm² cross-section combined with multi-strand flexibility makes this wire the industry standard for internal distribution equipment logic and low-amperage signaling circuits.
- Distribution Board Internals: The premier option for bridging connections, control circuits, and secondary jumpers between miniature circuit breakers (MCBs) inside residential consumer units.
- Signal & Control Systems: Widely used to wire relay stations, industrial contactor panels, thermostat controls, and low-voltage automation modules.
- Conduit and Trunking Paths: Ideal for pulling cleanly through metal or PVC conduit lines embedded in ceilings or walls due to its low friction coefficient and flexibility.
- Lighting Infrastructure: Perfect for supplying main switch lines, lighting loops, and individual pendant fixtures requiring a dedicated 1.5mm² load carrier.
