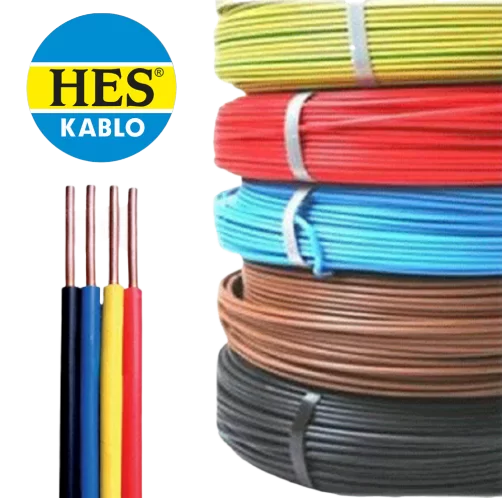

HES KABLO CABLE 1X10 RM (UCT)
HES KABLO CABLE 1X10 RM (UCT)
Regular price
GH₵2,200.00
Sale price
GH₵2,200.00
Unit price
per
Light bulb sold separately
SKU: SKU: 401-56467 EAN:| EAN:
Low stock: 3 available
Couldn't load pickup availability
HES KABLO CABLE 1X10 RM (UCT)
Red
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
The HES KABLO 1×10mm² RM Single-Core Building Cable is a Turkey-made, commercial-grade electrical conductor distributed through premium supply networks like UCT Ghana. Engineered for high-amperage low-voltage infrastructure, this single-core wire uses the standardized H07V-R designation to deliver excellent current-carrying capacity for heavy power routing.
Product Description
This high-performance building wire is constructed around a single core with a 10.0 mm² nominal cross-sectional area. The acronym RM (Round Multi-wire) indicates a structured, stranded circular conductor consisting of 7 bundled bare copper strands (Class 2 standard) rather than a stiff, single-solid metallic wire. This configuration gives the cable necessary physical bend compliance, allowing it to be pulled smoothly through conduits and tight trunking networks without kinking or fracturing. The core is encased within a tough, non-sheathed layer of custom-extruded, flame-retardant Polyvinyl Chloride (PVC) insulation that offers high dielectric strength and clean stripping properties.
Technical Specifications
This HES Kablo conductor meets international building compliance norms:
| Technical Feature / Property | Parameter Standard Value |
|---|---|
| Brand / Origin | HES Kablo (Hacılar Elektrik Sanayi / Turkey) |
| Conductor Architecture | Single-Core, Multi-wire Stranded Round (RM / Class 2) |
| Harmonized Cable Code | H07V-R (60227 IEC 01 / Type 6491X) |
| Conductor Base Material | 99.97% Pure Annealed Electrolytic Bare Copper |
| Nominal Cross-Section Area | 10.0 mm² |
| Insulation Composition | Premium Fire-Retardant Polyvinyl Chloride (FR-PVC Type TI 1) |
| Rated Voltage Metric | 450V / 750V AC |
| Max Continuous Operating Temp | +70°C |
| Max Short-Circuit Temp Limit | +160°C (For a maximum threshold duration of 5 seconds) |
| Max DC Resistance at 20°C | ≤ 1.83 Ω/km (Highly efficient transmission over long distances) |
| Available Insulation Colors | Red, Blue, Black, Yellow/Green (Earth), Brown |
| Compliance Certifications | EN 50525-2-31, IEC 60227, TSE, CE, RoHS Approved |
System Applications
The 10.0mm² stranded format handles heavy operational current demands safely, making it a crucial component for primary sub-mains and industrial equipment:
- Main Distribution Board Links: Functions as low-impedance internal bridge wiring inside residential consumer units, sub-panels, and industrial switchgear enclosures to link high-amperage breakers.
- Heavy-Duty Appliance Feeds: Deployed as a dedicated radial feed for high-load electrical installations, including central air conditioning units, large instant water heaters, and heavy water pumping systems.
- Master Functional Earth Backbones: The Green/Yellow jacket option is widely used as a master grounding backbone (Clean Earth) for IT server networks, telecommunication arrays, and sensitive control terminals to isolate EMI.
- Solar Combiner Box Networks: Manages high-current DC inputs running from large commercial solar panel strings back down to central inverter stations or main distribution matrices.
- Conduit and Cable Trunking Layouts: Pulled smoothly through embedded or surface-mounted PVC and metal conduits, structural building channels, and closed cable tray systems.
Specifications
The HES KABLO 1×10mm² RM Single-Core Building Cable is a Turkey-made, commercial-grade electrical conductor distributed through premium supply networks like UCT Ghana. Engineered for high-amperage low-voltage infrastructure, this single-core wire uses the standardized H07V-R designation to deliver excellent current-carrying capacity for heavy power routing.
Product Description
This high-performance building wire is constructed around a single core with a 10.0 mm² nominal cross-sectional area. The acronym RM (Round Multi-wire) indicates a structured, stranded circular conductor consisting of 7 bundled bare copper strands (Class 2 standard) rather than a stiff, single-solid metallic wire. This configuration gives the cable necessary physical bend compliance, allowing it to be pulled smoothly through conduits and tight trunking networks without kinking or fracturing. The core is encased within a tough, non-sheathed layer of custom-extruded, flame-retardant Polyvinyl Chloride (PVC) insulation that offers high dielectric strength and clean stripping properties.
Technical Specifications
This HES Kablo conductor meets international building compliance norms:
| Technical Feature / Property | Parameter Standard Value |
|---|---|
| Brand / Origin | HES Kablo (Hacılar Elektrik Sanayi / Turkey) |
| Conductor Architecture | Single-Core, Multi-wire Stranded Round (RM / Class 2) |
| Harmonized Cable Code | H07V-R (60227 IEC 01 / Type 6491X) |
| Conductor Base Material | 99.97% Pure Annealed Electrolytic Bare Copper |
| Nominal Cross-Section Area | 10.0 mm² |
| Insulation Composition | Premium Fire-Retardant Polyvinyl Chloride (FR-PVC Type TI 1) |
| Rated Voltage Metric | 450V / 750V AC |
| Max Continuous Operating Temp | +70°C |
| Max Short-Circuit Temp Limit | +160°C (For a maximum threshold duration of 5 seconds) |
| Max DC Resistance at 20°C | ≤ 1.83 Ω/km (Highly efficient transmission over long distances) |
| Available Insulation Colors | Red, Blue, Black, Yellow/Green (Earth), Brown |
| Compliance Certifications | EN 50525-2-31, IEC 60227, TSE, CE, RoHS Approved |
System Applications
The 10.0mm² stranded format handles heavy operational current demands safely, making it a crucial component for primary sub-mains and industrial equipment:
- Main Distribution Board Links: Functions as low-impedance internal bridge wiring inside residential consumer units, sub-panels, and industrial switchgear enclosures to link high-amperage breakers.
- Heavy-Duty Appliance Feeds: Deployed as a dedicated radial feed for high-load electrical installations, including central air conditioning units, large instant water heaters, and heavy water pumping systems.
- Master Functional Earth Backbones: The Green/Yellow jacket option is widely used as a master grounding backbone (Clean Earth) for IT server networks, telecommunication arrays, and sensitive control terminals to isolate EMI.
- Solar Combiner Box Networks: Manages high-current DC inputs running from large commercial solar panel strings back down to central inverter stations or main distribution matrices.
- Conduit and Cable Trunking Layouts: Pulled smoothly through embedded or surface-mounted PVC and metal conduits, structural building channels, and closed cable tray systems.
