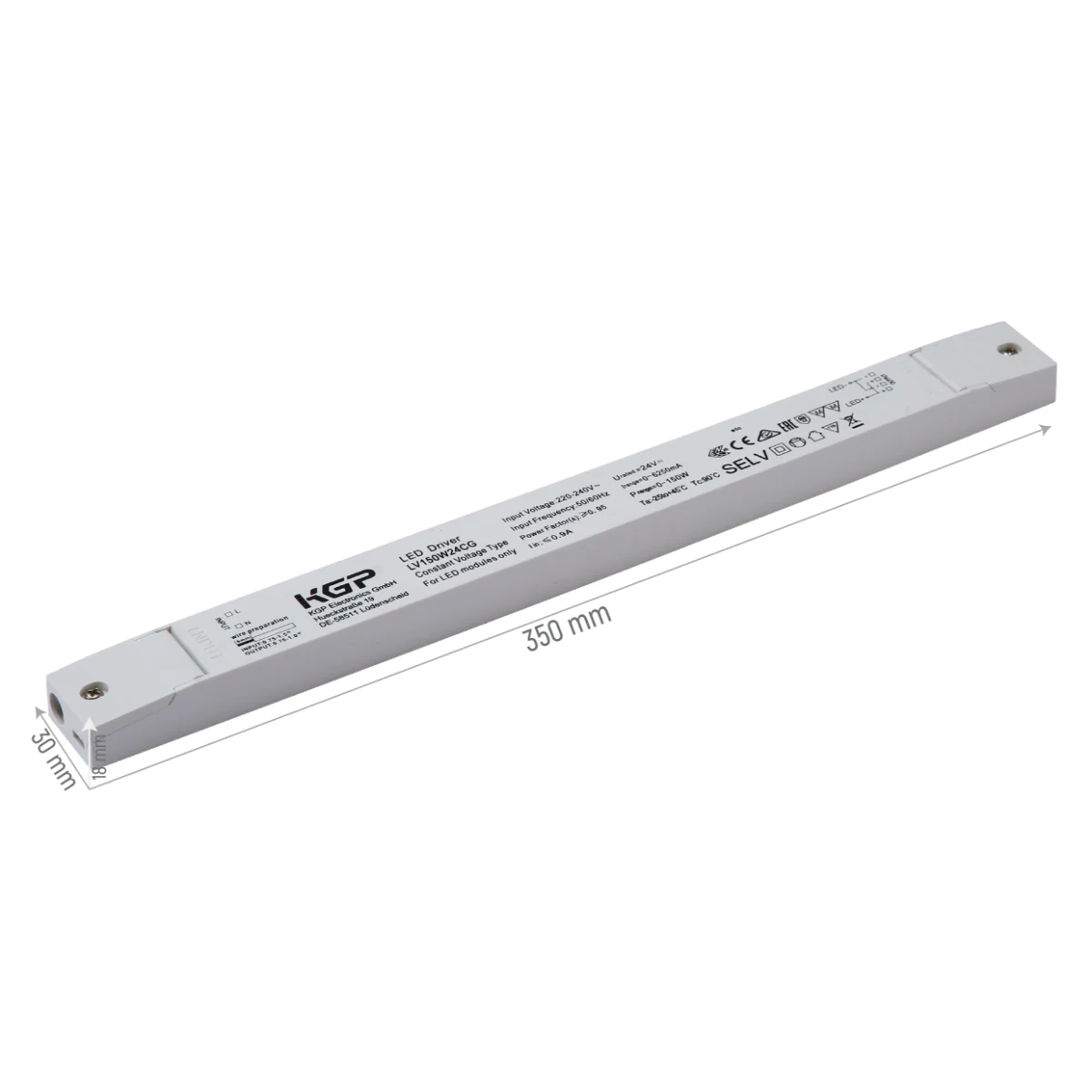

KGP Constant Voltage LED Driver 24V 150W 10A for LED Strips-Modules
Introducing the KGP Constant Voltage LED Driver — your robust solution for powering LED Modules and Strip lights. With its sleek design and advanced features, it ensures the reliable performance of your LED setups.
Key Features & Benefits:
- Power-packed Performance: With an impressive 150W capacity and a broad output current range up to 6250 mA, this driver stands out, ensuring your LEDs shine brightly and consistently.
- Steady Voltage Output: Delivering a uniform 24V DC, the driver ensures your LEDs maintain a consistent luminosity and hue.
- Adaptable Dimming Options: Though the driver is inherently non-dimmable, pair it with 24V dimmer controllers to achieve your desired brightness levels, offering flexibility in lighting ambiance.
- Sleek and Unobtrusive Design: Measuring just 350*30*18 mm, its white, compact plastic casing can be discreetly integrated into most settings, preserving aesthetics.
- Exceptional Durability: Designed for longevity, this driver boasts a lifespan of 50,000 hours, so you can install with confidence, knowing it's built to last.
- Wide Temperature Tolerance: With an operational temperature range from -25°C to +45°C, it's resilient enough to perform in diverse climatic conditions, ensuring reliability.
- Certified Excellence: Meeting stringent quality benchmarks, it's endorsed with certifications from UKCA, CE, ENEC, EAC, and SELV. Rest assured, you're investing in a product that meets globally recognized standards.
Perfect for both residential and commercial applications, the KGP Constant Voltage LED Driver guarantees a harmonious blend of efficiency, longevity, and compatibility. Whether you're setting up decorative strips or high-power LED modules, trust this driver to deliver the power you need.
Technical Specifications
| Product Code | 890-15956 LV150W24CG |
| Power | 150W |
| Type | Constant Voltage 24V DC |
| Voltage | 85/265V AC 50/60Hz |
| Output Voltage | 24V DC |
| Output Current | 0-6250mA |
| Power Range | 0-150W |
| Led Type | for LED Modules and LED Strip lights |
| Output | 2 output |
| Protection Class | Class II |
| Dimmability | Non-Dimmable but can be used with 24V dimmer controllers for dimming the LEDs |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Product Dimensions (LxWxH) (DxH) | 350x30x18mm |
| Made Of Materials | Plastic Box |
| Product Colour | White |
| Input Cable Size | 0.75 - 1.5 mm |
| Output Cable Size | 0.75 - 1 mm |
| Power Factor | pf>0.95 |
| Operating Temperature (C) | -25/+45C |
| Temperature (tc) | 90C |
| Warranty | 3 year |
| Life Span | 50000h |
| Box Dimension (LxWxH) | xxmm |
| Box Content | 1 Piece of driver |
| Certifications | UKCA, CE, ENEC, EAC, SELV |
