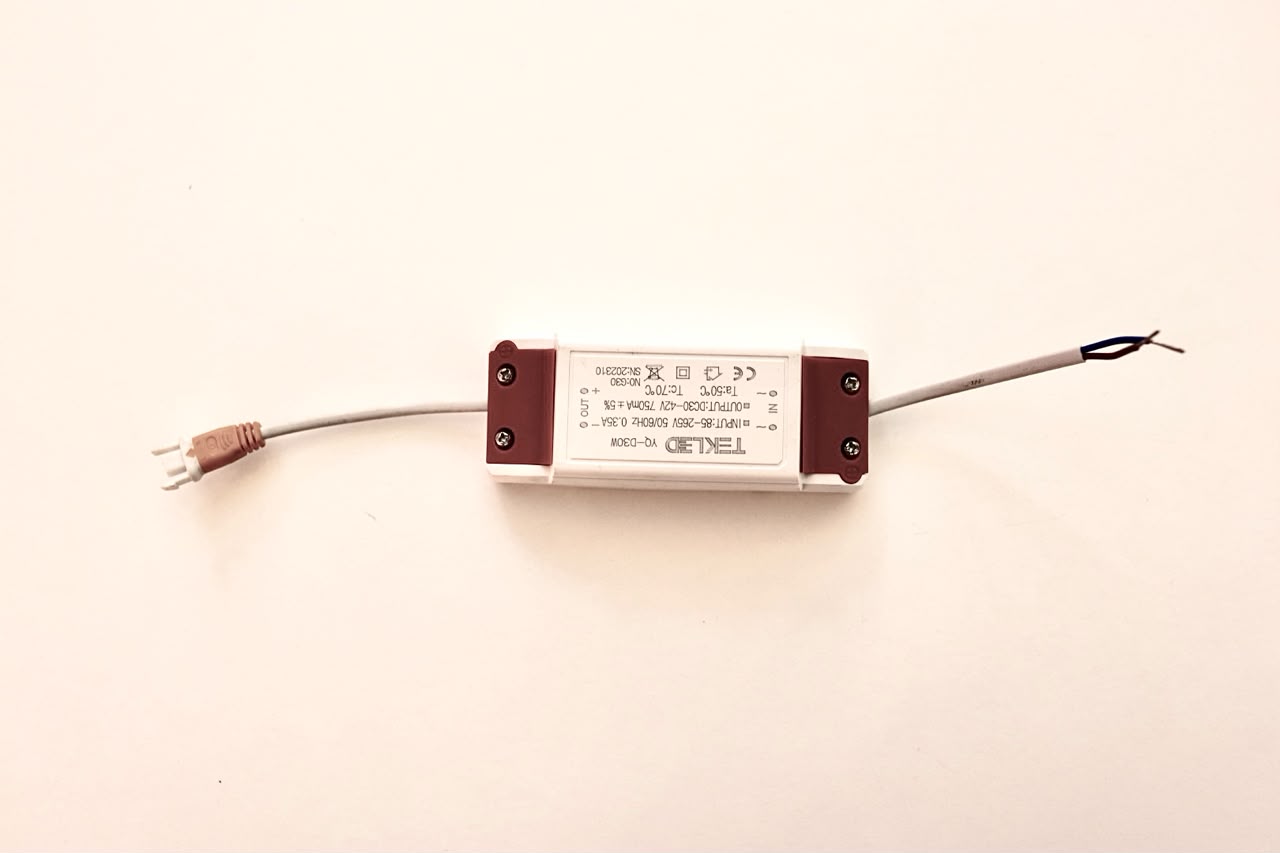

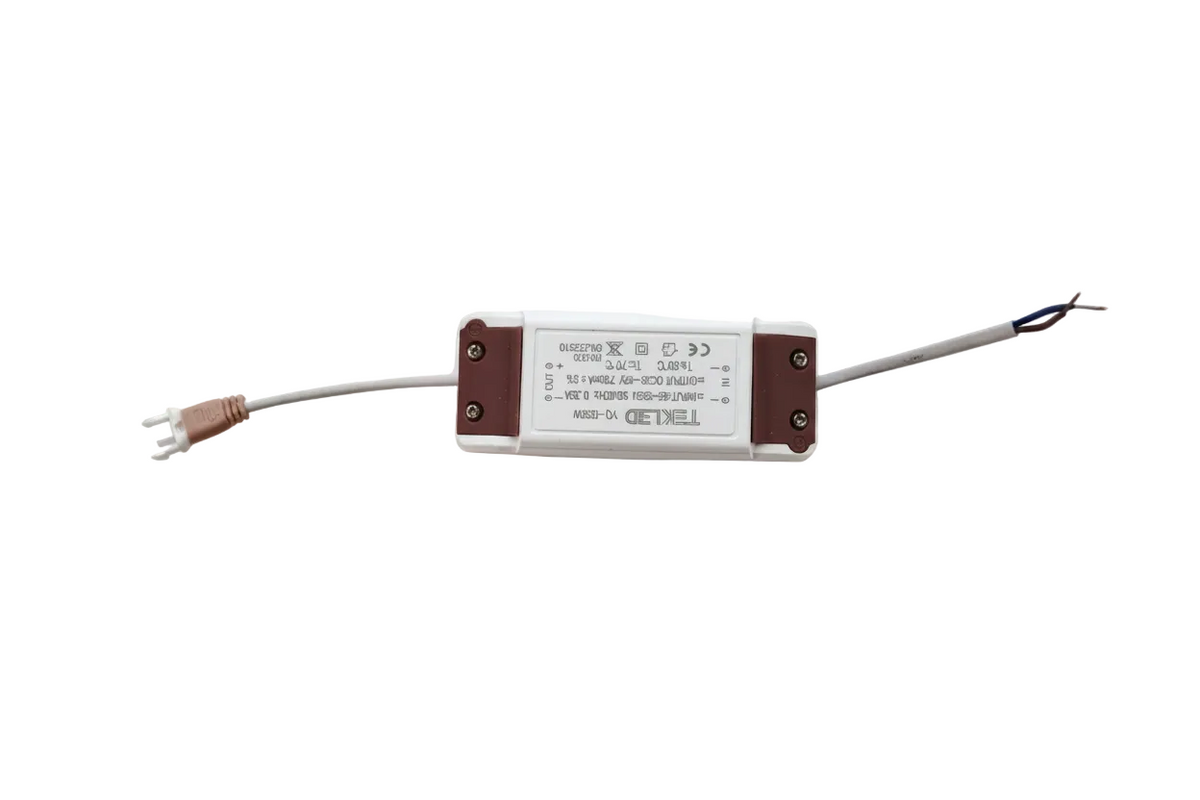

LED DRIVER J005 30W (TEKLED)

The TEKLED J005 30W LED Driver (Model: YQ-D30W) is a high-performance constant current power supply module engineered specifically for high-efficiency LED fixtures. Housed in a flame-retardant casing with clip-on terminal covers, it acts as an electrical current management system. It converts incoming standard AC voltage from the grid into a stabilized DC output, safeguarding sensitive semiconductor LED components against unexpected grid-side fluctuations and thermal runaway.

• Model Number: YQ-D30W
• Max Output Power: 30 Watts
• Driving Profile: Constant Current
• Input Parameters: (85-265V AC), (50/60Hz), (0.36A) (Wide-range universal voltage support)
• Output Parameters: (DC 30-42V), (750mA ±5%)
• Thermal Boundaries:
  • Max Operating Ambient Temperature: (50 oC)
  • Maximum Permissible Case Temperature: (70 oC)
• Safety Classifications: Class II Electrical Device (Double Insulated), CE Certified

• Constant Current Regulation: Keeps the electrical output strictly locked at \(750\text{mA}\). This eliminates light output flickering, maintains color consistency across the LED array, and ensures the diodes operate within their optimal lifespan windows.
• Wide Range Input Window: Built to cleanly handle extreme line voltage drops or surges spanning anywhere from (85V) up to (265V). This makes it an ideal fit for areas with less stable power grids.
• Dual-Ended Isolation Layout: Outfitted with clear terminal grouping separation. The AC input accepts raw mains cabling on one side, while the dedicated low-voltage DC terminal line routes directly to the light fixture via a dedicated inline connection pin.
• Integrated Safety Shielding: Comes pre-packaged with internal defense safeguards, including over-voltage, short-circuit, and over-temperature safety triggers.

• Commercial Track Lighting: The standard power engine driving commercial (30W) COB track lights found in automotive showrooms, modern art galleries, and clothing retail centers.
• Recessed Architectural Downlights: Used inside suspended ceiling frameworks to power medium-output office panel boards and spot grids.
• Residential & Hospitality Lighting: Provides power to multi-diode architectural arrays, perimeter accent ceiling fixtures, and custom pendant installations.
