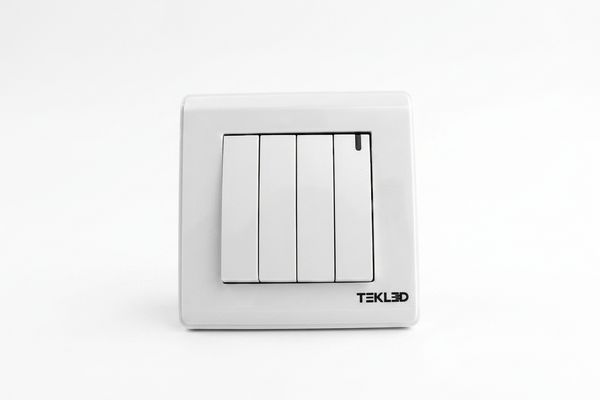

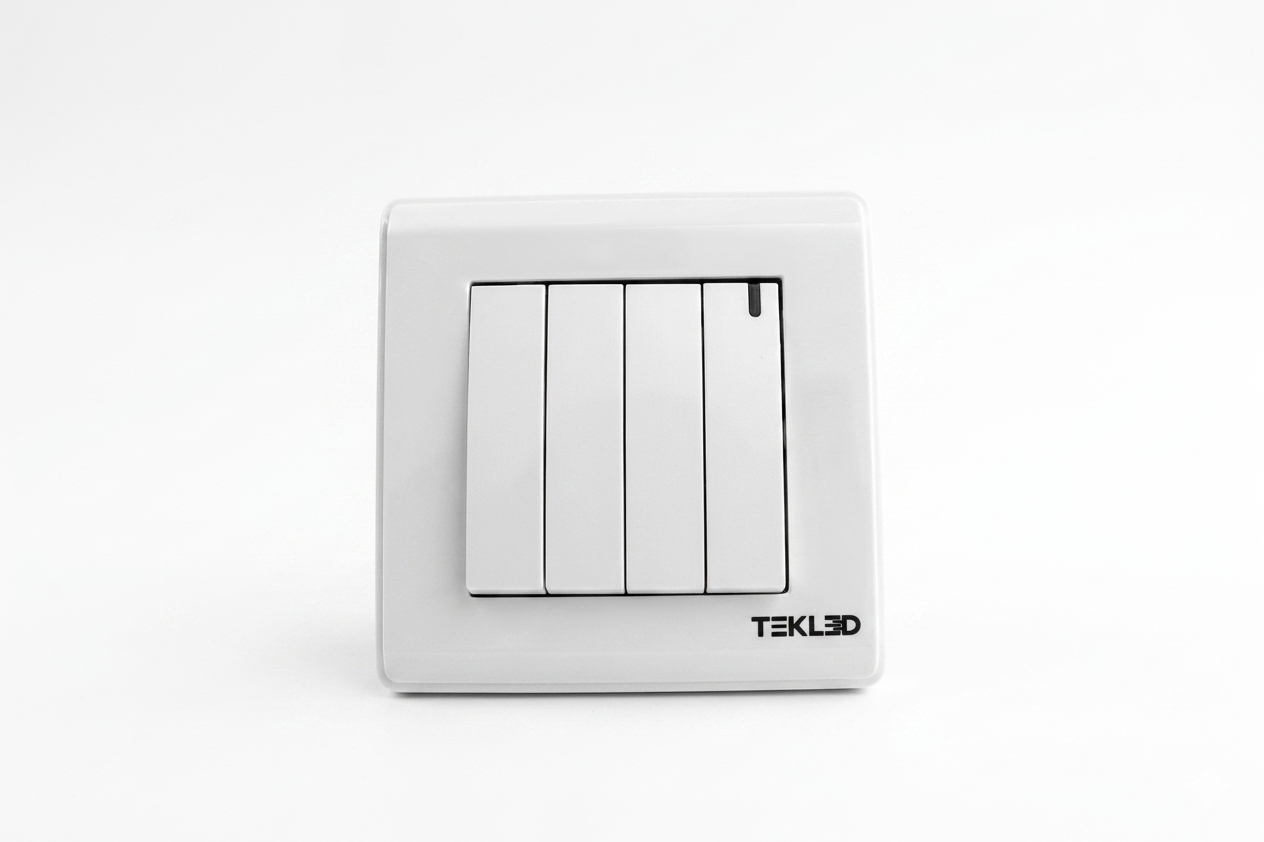

The TEKLED Prime White 4 Gang 2 Way Switch is a high-density, wall-mounted light control interface designed for modern interiors. Featuring four vertically oriented, slim rocker panels housed on a single square faceplate, it consolidates control over four independent light zones or fixtures. Each gang features 2-way circuitry to support multi-location wiring, while a built-in neon locator on the rightmost switch ensures visibility in the dark.
Detailed Technical Specifications
-
Rated Voltage: 250V AC (50/60Hz standard grid configurations)
-
Rated Current: 10A / 16A standard lighting load per gang
-
Configuration: 4 Gang (Four independent, vertical rocker switches)
-
Switching Mode: 2 Way (Each gang can be wired for either single-pole 1-way or multi-point 2-way control loops)
-
Indicator Light: Integrated neon orientation indicator strip on the fourth gang (Top right)
-
Housing Material: Premium, UV-stabilized, flame-retardant white polycarbonate panel
-

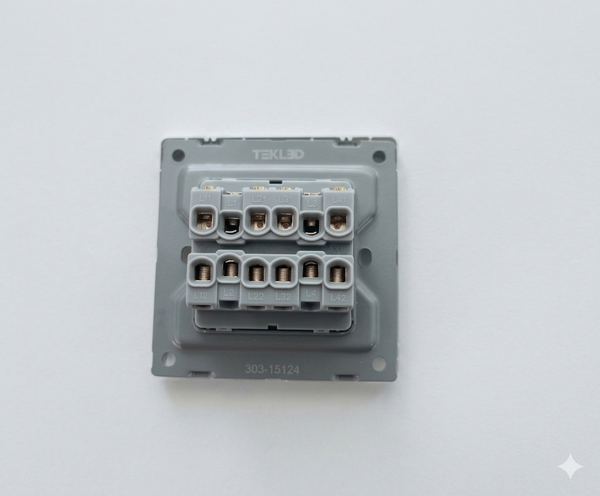

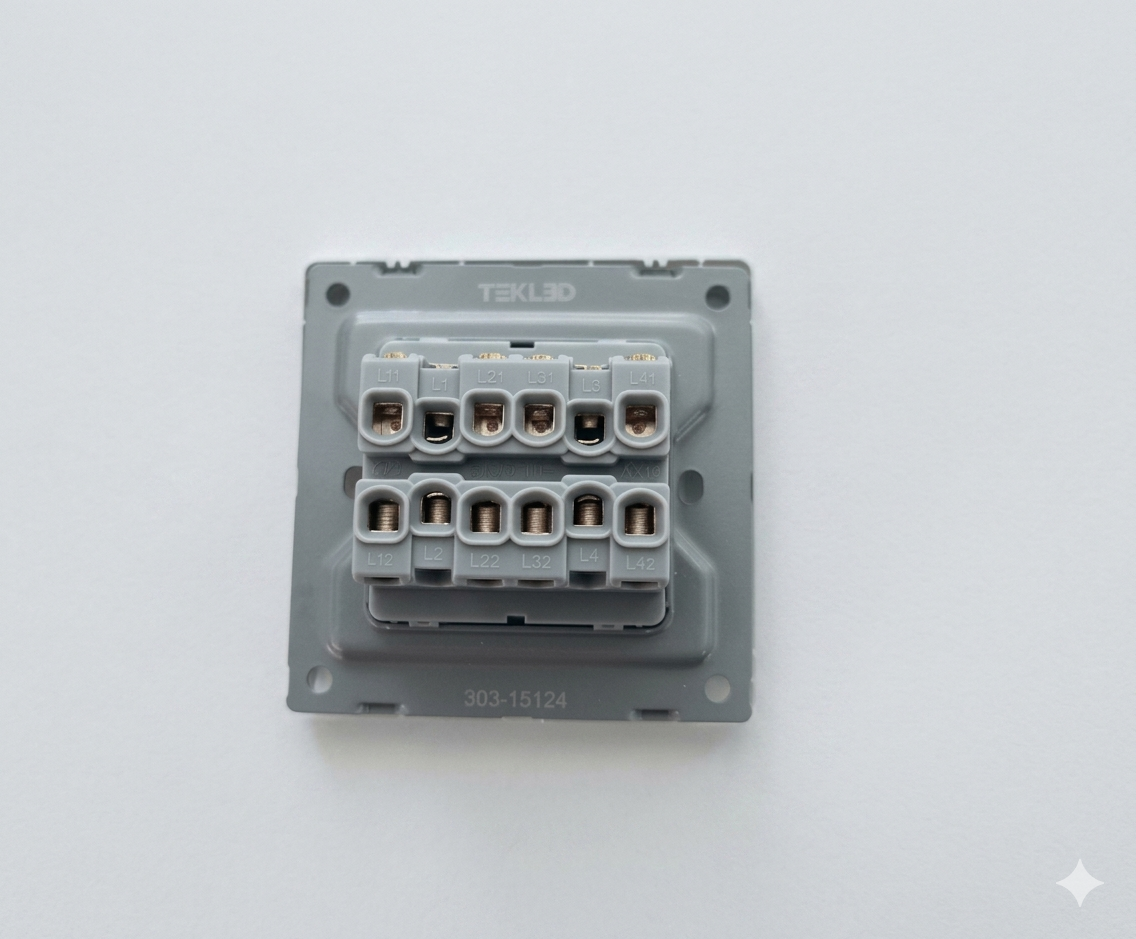

Terminal Material: High-conductivity solid brass internal contacts with heavy-duty screw clamps
-
Dimensions: Standard 86mm x 86mm square faceplate layout
Key Features & Safety Infrastructure
-
High-Density Control: Consolidates four individual switches onto a single square faceplate, maximizing space and eliminating the need for bulky multi-box configurations on the wall.
-
Versatile Multi-Location Wiring: All four switches are 2-way capable, enabling complex installations where any of the four connected lighting zones need to be toggled from a secondary switch location.
-
Integrated Neon Indicator: The rightmost rocker includes a small transparent lens feeding from an internal neon indicator, providing a visual anchor point in low-light environments.
- Durable & Safe Construction: Molded out of self-extinguishing polycarbonate materials that resist high impact, internal arcing temperatures, and yellowing over extended lifespans.
Typical Applications
-
Living Rooms & Open Plans: Ideal for central hubs where downlights, accent lights, chandeliers, and background lighting strips must be controlled from a single entry point.
-
Office Environments: Perfect for managing individual lighting banks across distinct workspaces, conference tables, and reception desk layouts.
- Corridors & Multi-Entrance Spaces: Positioned at main entryways to give broad control over long halls, exterior path lighting, and lobby zones simultaneously.
